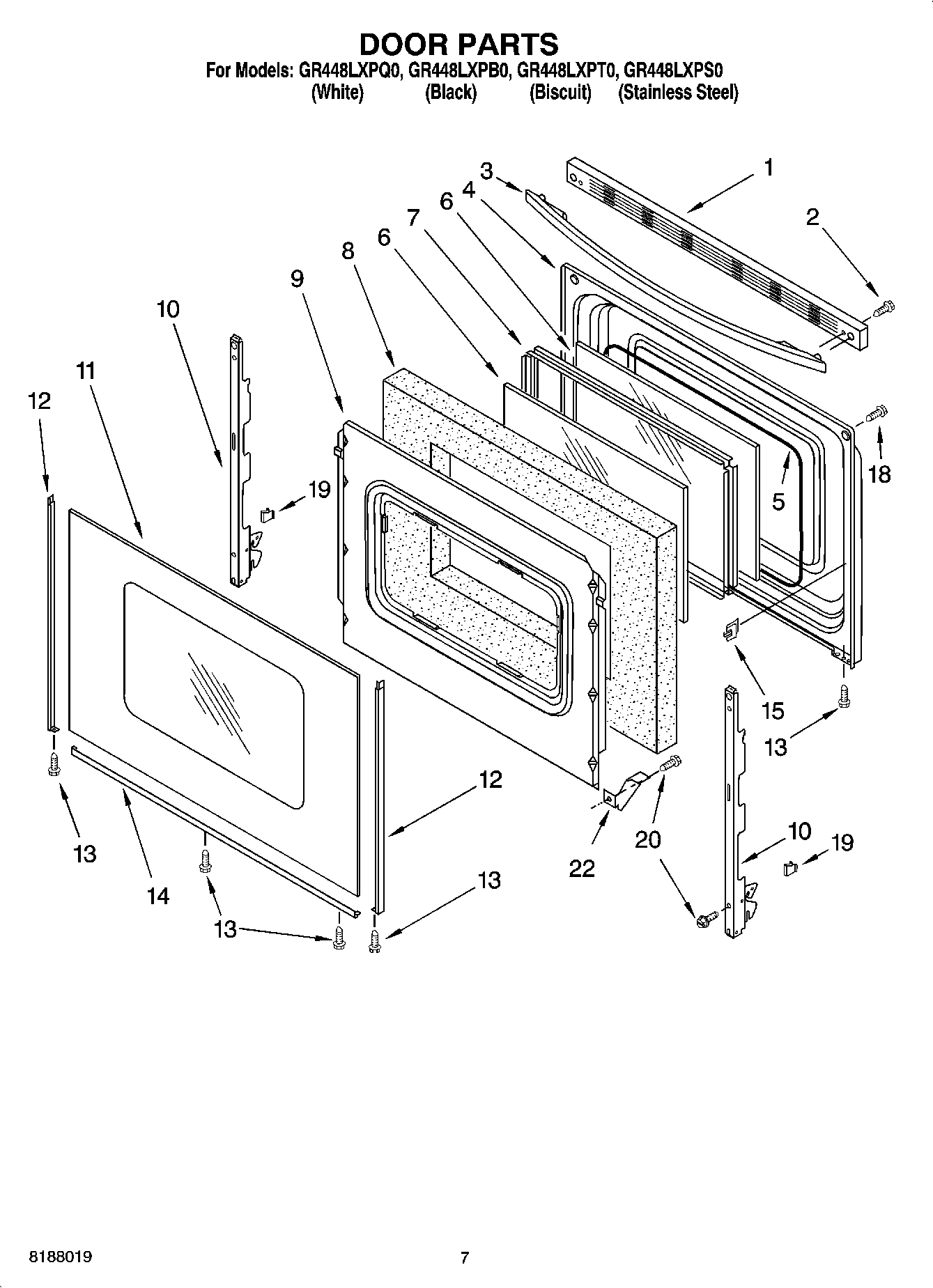

GR448LXPT0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GR448LXPT0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GR448LXPT0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI149142A
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
WPL ARI149143A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WP3196154 Whirlpool Screw Assembly
WPL ARI149141A
WPL ARI149140A
WPL ARI149139A
WPL ARI149138A
WPL ARI149137A
WPL 9759002
WPL 9759773
WPL 9759775
WPL 9757289
W10465644 Whirlpool Wire Harness
WPL 4454240
WPL 8273266
W11244557 Whirlpool Screw
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Wire, 25` Roll (Red 14 Ga.)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1Trim, Top (Stainless Model)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10Hinge, Door (Stainless Model)
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer (Stainless Steel)
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Biscuit)
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523180 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
