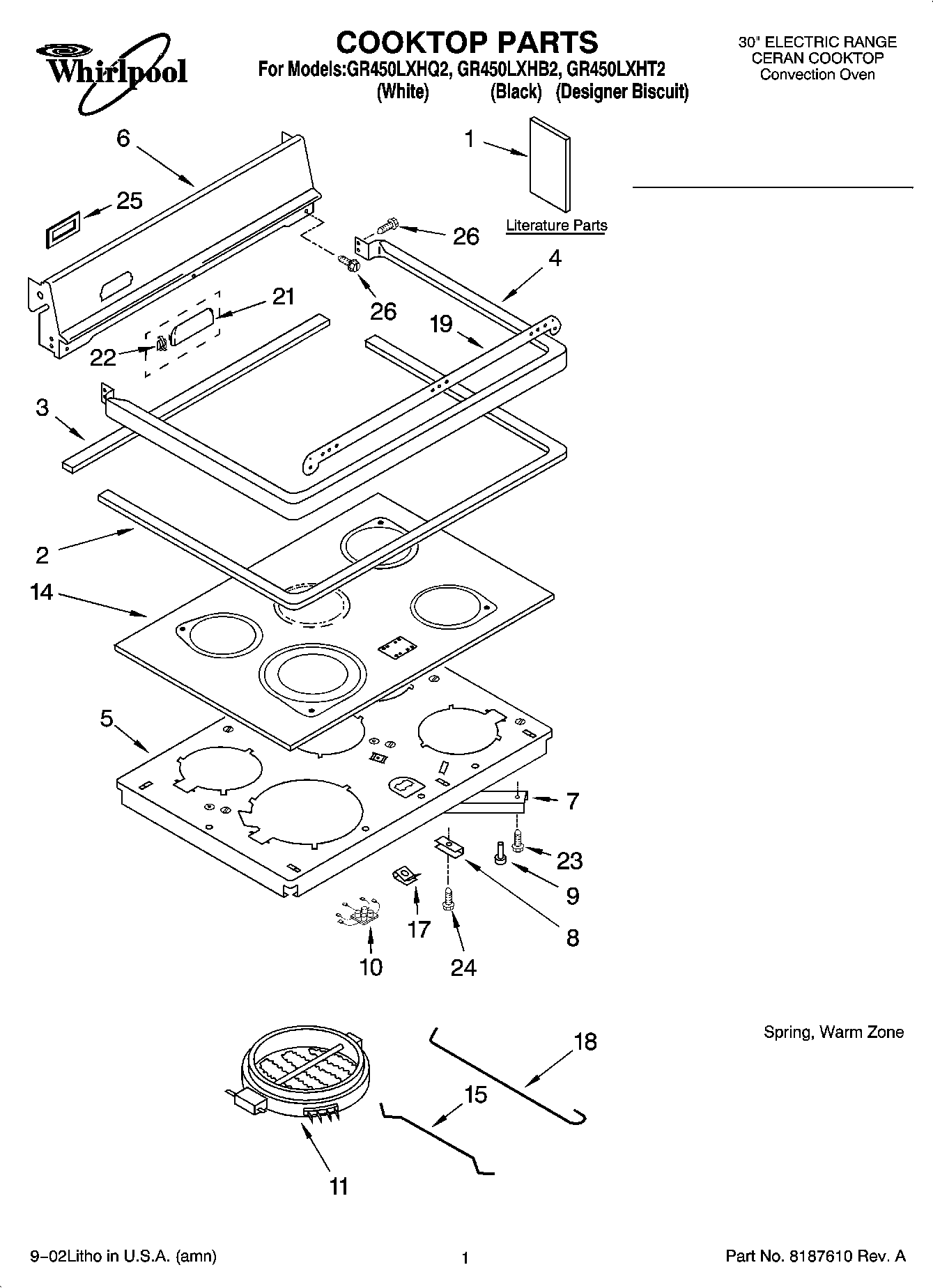

GR450LXHB2 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	WPL LIT9752776
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Biscuit)
4	Frame, Cooktop (Black)
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (White)
6	Back Splash (Biscuit)
6	Back Splash (Black)
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823692 Whirlpool Dual Radiant Element
11	W10823698 Whirlpool Surface Element Right Rear
11	WP8523700 Whirlpool Surface Element
11	W10823699 Whirlpool Right Front Surface Element
14	Cooktop, Ceran (Biscuit)
14	Cooktop, Ceran (Black)
14	Cooktop, Ceran (White)
15	Rod, Small Ceran Element
17	WP9781235 Whirlpool Clip
18	Rod, Large Ceran Element
19	Guard, Wire
21	Cover, Vent (White)
21	Cover, Vent (Black)
21	Cover, Vent (Biscuit)
22	Clip, Vent Cover
23	Screw (4) 10 x 1/2
24	Screw, (4) 10PH-B x 3/4
25	Vent Gasket
26	Spring, Warm Zone Element
26	Back Splash (Screw (4) 10AB x 1/2“)
