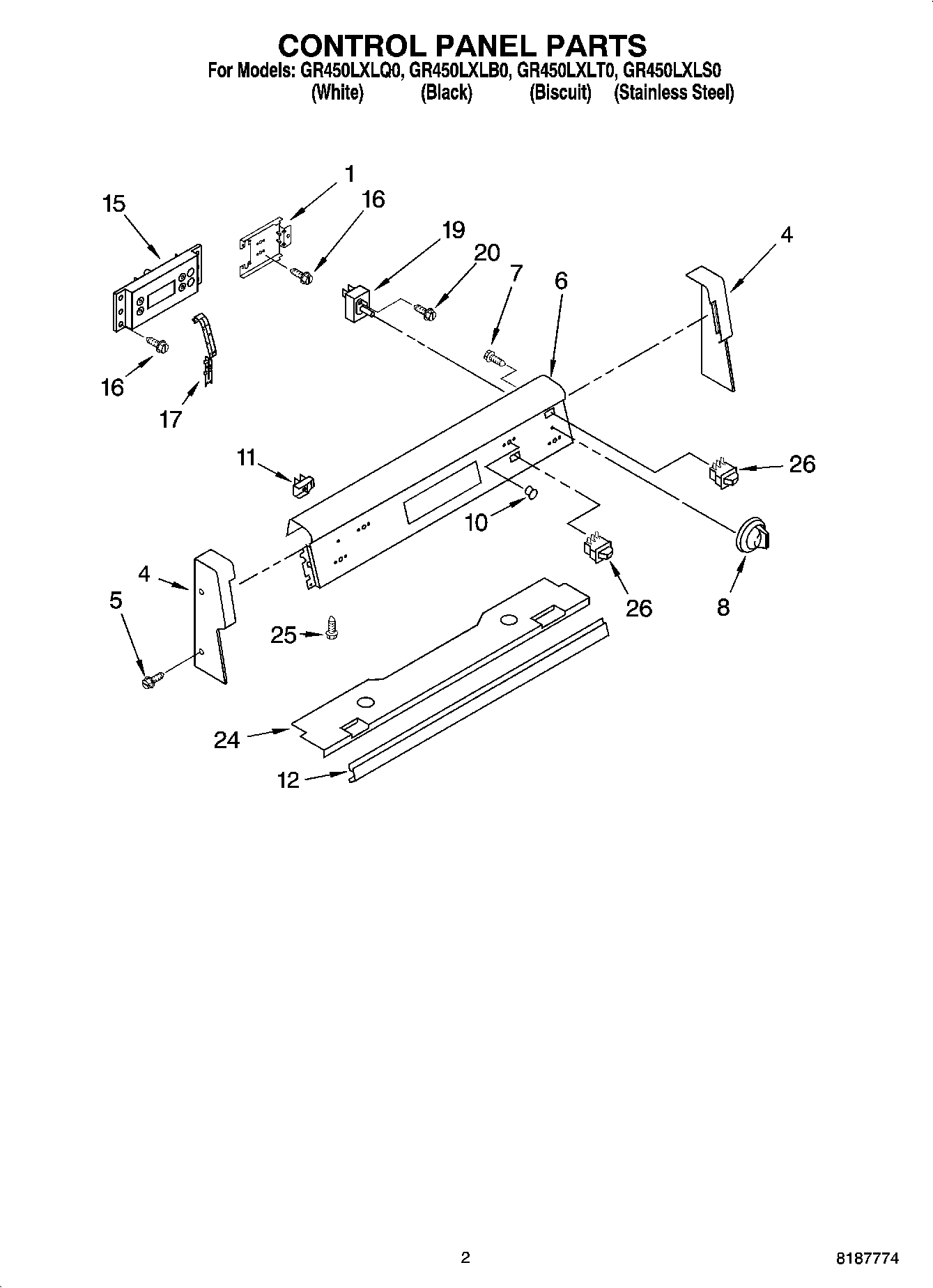

GR450LXLB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Bracket, Timer
4	End Cap (Biscuit Right)
4	End Cap (Black, Right)
4	End Cap (Black, Left)
4	End Cap (Right)
4	End Cap (Left)
4	End Cap (Biscuit Left)
5	WP4159387 Whirlpool Compactor Screw
6	Panel, Control (Stainless Steel)
6	Panel, Control (Biscuit)
6	Panel, Control (Black)
6	Panel, Control (White)
7	Panel, Control (Screw, (2) 8 x 3/8)
8	Knobs, Control (4) (Black)
8	Knobs, Control (4) (Biscuit)
8	WP9752405FW Whirlpool Knob
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator (Surface Unit (2))
12	Trim Strip
12	Trim Strip (Black)
12	Trim Strip (Biscuit)
15	Timer (Biscuit)
15	Timer (Black)
15	Timer (White)
16	Screw (4) 10 x 1/2
17	Bracket, Timer
19	WP9750639 Whirlpool Infinite Switch
19	WP9755173 Whirlpool Infinite Switch
19	WP9750638 Whirlpool Infinite Switch
20	WP3400882 Whirlpool Screw
24	Base, Console
25	WP3400832 Whirlpool Screw
26	Switch, Simmer (White)
26	Insulation, Cntrl
26	Switch, Rocker (Warm Zone) (Black)
26	Switch, Rocker Illuminated (Biscuit On/Off)
26	Switch, Rocker Illuminated (White On/Off)
26	WPW10163899 Whirlpool Switch
