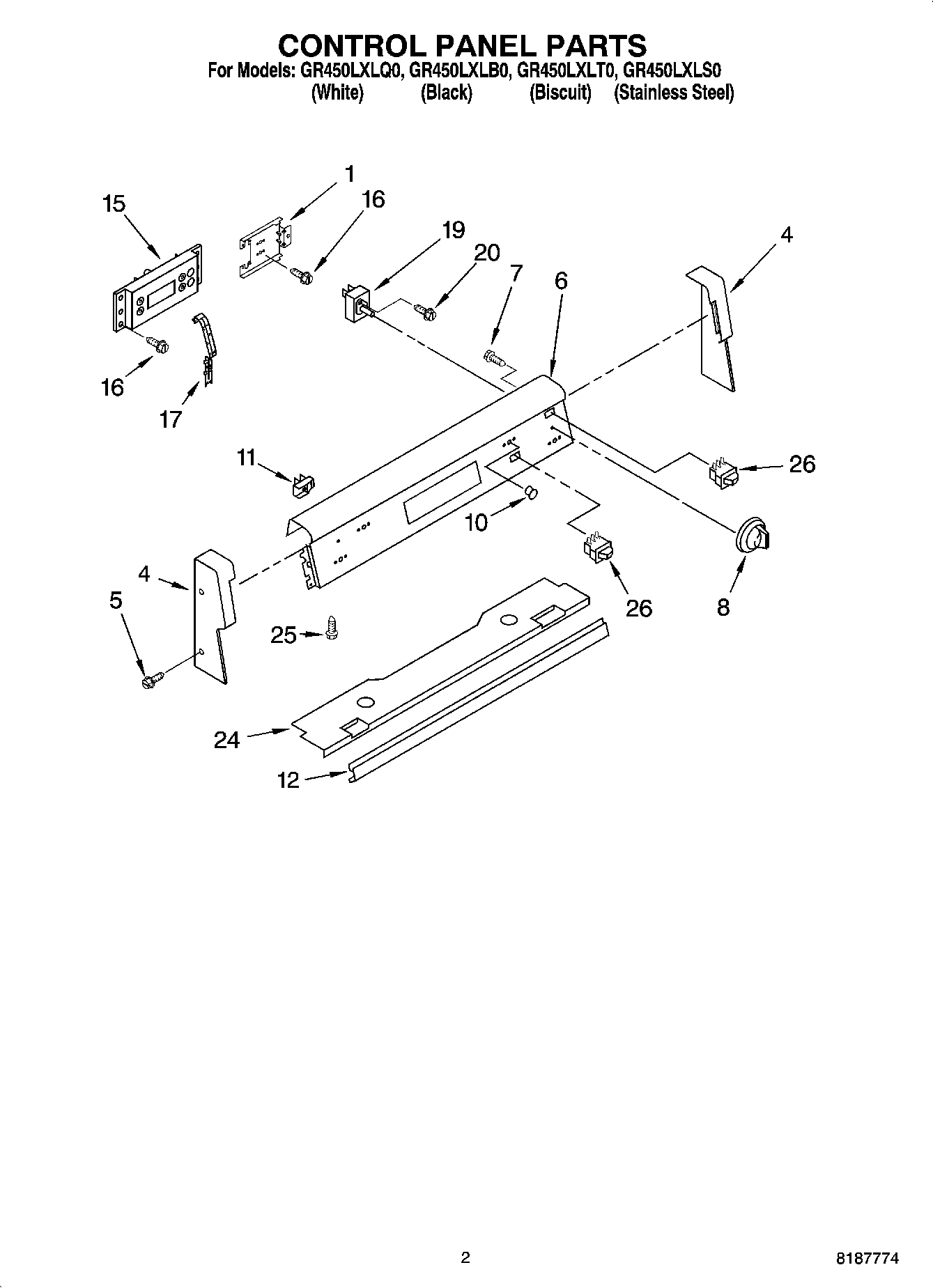

GR450LXLQ0 02 – CONTROL PANEL PARTSadmin2025-04-26T12:01:18+00:00GR450LXLQ0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Bracket, Timer |
| 4 | End Cap (Biscuit Right) |
| 4 | End Cap (Black, Right) |
| 4 | End Cap (Black, Left) |
| 4 | End Cap (Right) |
| 4 | End Cap (Left) |
| 4 | End Cap (Biscuit Left) |
| 5 | WP4159387 Whirlpool Compactor Screw |
| 6 | Panel, Control (Stainless Steel) |
| 6 | Panel, Control (Biscuit) |
| 6 | Panel, Control (Black) |
| 6 | Panel, Control (White) |
| 7 | Panel, Control (Screw, (2) 8 x 3/8) |
| 8 | Knobs, Control (4) (Black) |
| 8 | Knobs, Control (4) (Biscuit) |
| 8 | WP9752405FW Whirlpool Knob |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light, Indicator (Surface Unit (2)) |
| 12 | Trim Strip |
| 12 | Trim Strip (Black) |
| 12 | Trim Strip (Biscuit) |
| 15 | Timer (Biscuit) |
| 15 | Timer (Black) |
| 15 | Timer (White) |
| 16 | Screw (4) 10 x 1/2 |
| 17 | Bracket, Timer |
| 19 | WP9750639 Whirlpool Infinite Switch |
| 19 | WP9755173 Whirlpool Infinite Switch |
| 19 | WP9750638 Whirlpool Infinite Switch |
| 20 | WP3400882 Whirlpool Screw |
| 24 | Base, Console |
| 25 | WP3400832 Whirlpool Screw |
| 26 | Switch, Simmer (White) |
| 26 | Insulation, Cntrl |
| 26 | Switch, Rocker (Warm Zone) (Black) |
| 26 | Switch, Rocker Illuminated (Biscuit On/Off) |
| 26 | Switch, Rocker Illuminated (White On/Off) |
| 26 | WPW10163899 Whirlpool Switch |
