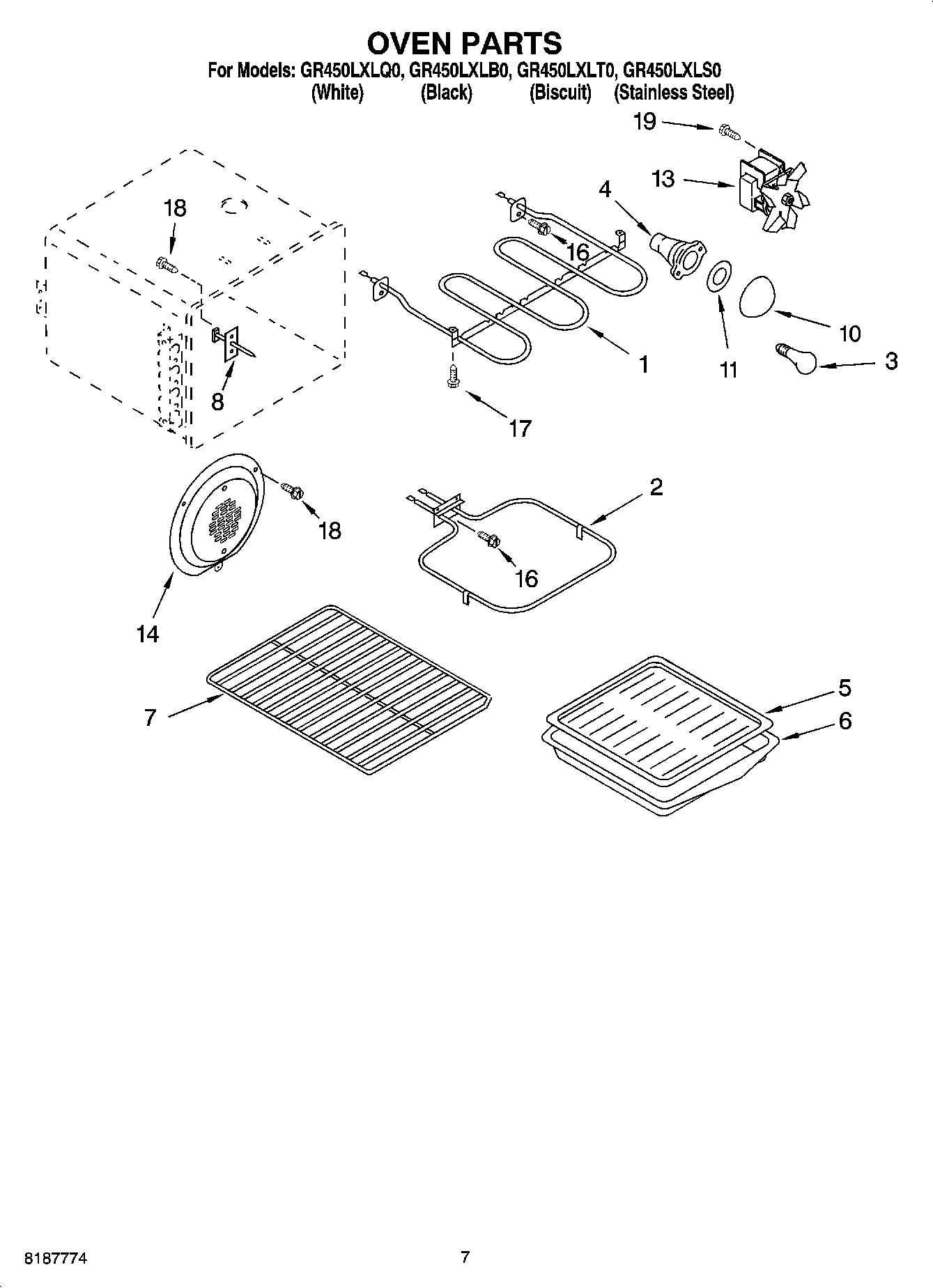

GR450LXLQ0 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI68443A8
	Ground Strap
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 9752771
	WPL 9753680
	WPL 9753682
	WPL ARI68442A3
	WPL 9782375
	WPL 8316781
	Grease
	WPL ARI68444A6
	8212471 Whirlpool Oven Paint
	WPL 9781930
	WPL 9753687
	WP9782182 Whirlpool Wire
	Clip, Ground Wire
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPW10208653 Whirlpool Insulation
	WP72107 Whirlpool Touchup
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	WPL 9750744
	72017 Whirlpool Appliance Touch-Up Paint White
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	799344 Whirlpool Refrigerator Paint
	285006 Whirlpool Spray
	SCREW
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
5	Grill, Broiler
6	Pan, Broiler
7	Rack, Standard (3)
8	Sensor
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
13	Fan Assembly
14	Baffle, Convection
16	Screw
17	340184 Whirlpool Screw
18	WP4159387 Whirlpool Compactor Screw
19	Screw (4) 10 x 1/2
