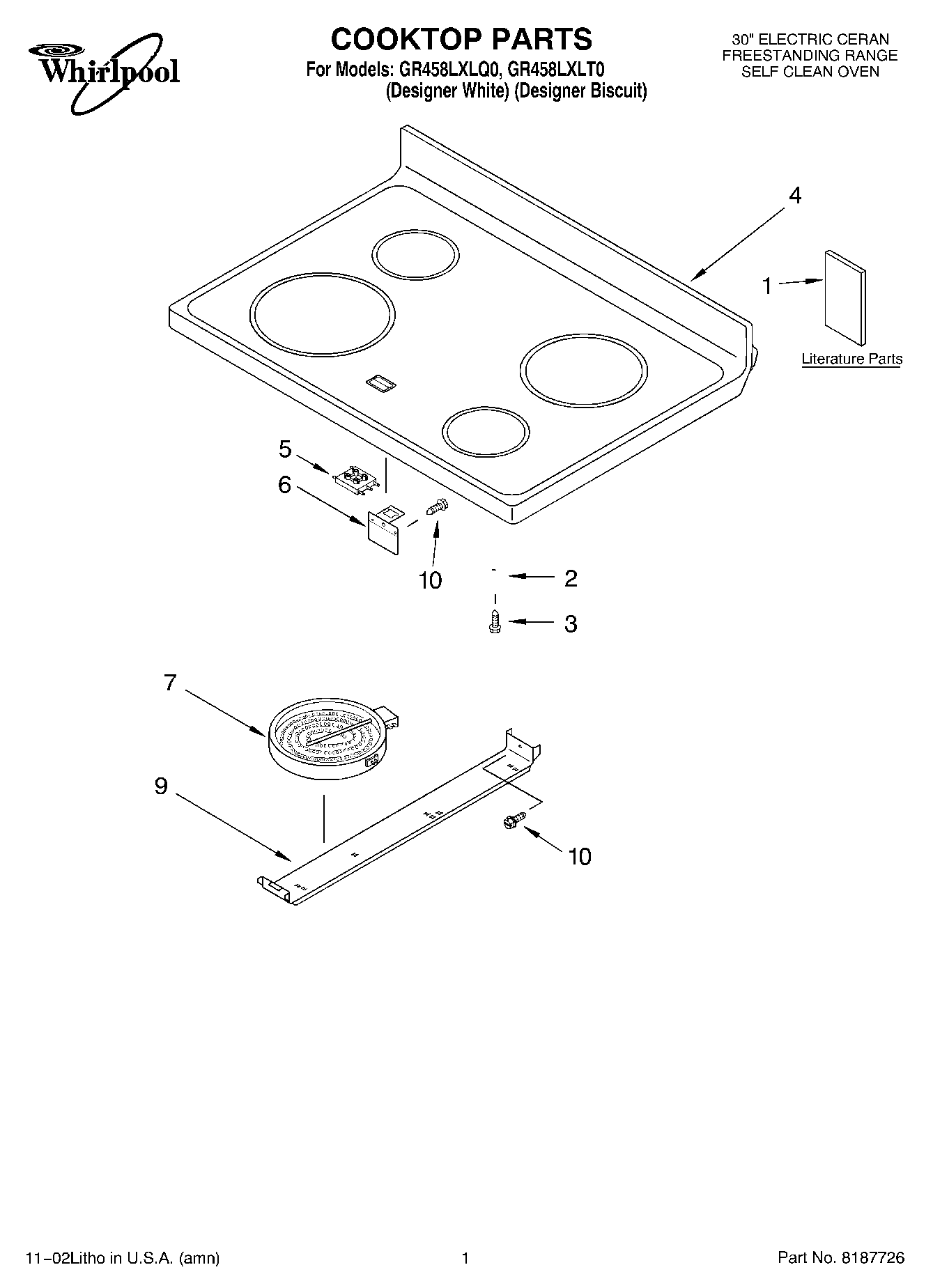

GR458LXLQ0 01 – COOKTOP, LITERATURE

GR458LXLQ0 01 – COOKTOP, LITERATURE

Written by

in

GR458LXLQ0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (English/Spanish)
1Literature (Guide, Use & Care)
1Literature (Instructions, Installation)
1Literature (Tech Sheet)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Biscuit)
4Cooktop (White)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823696 Whirlpool Radiant Surface Element
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
