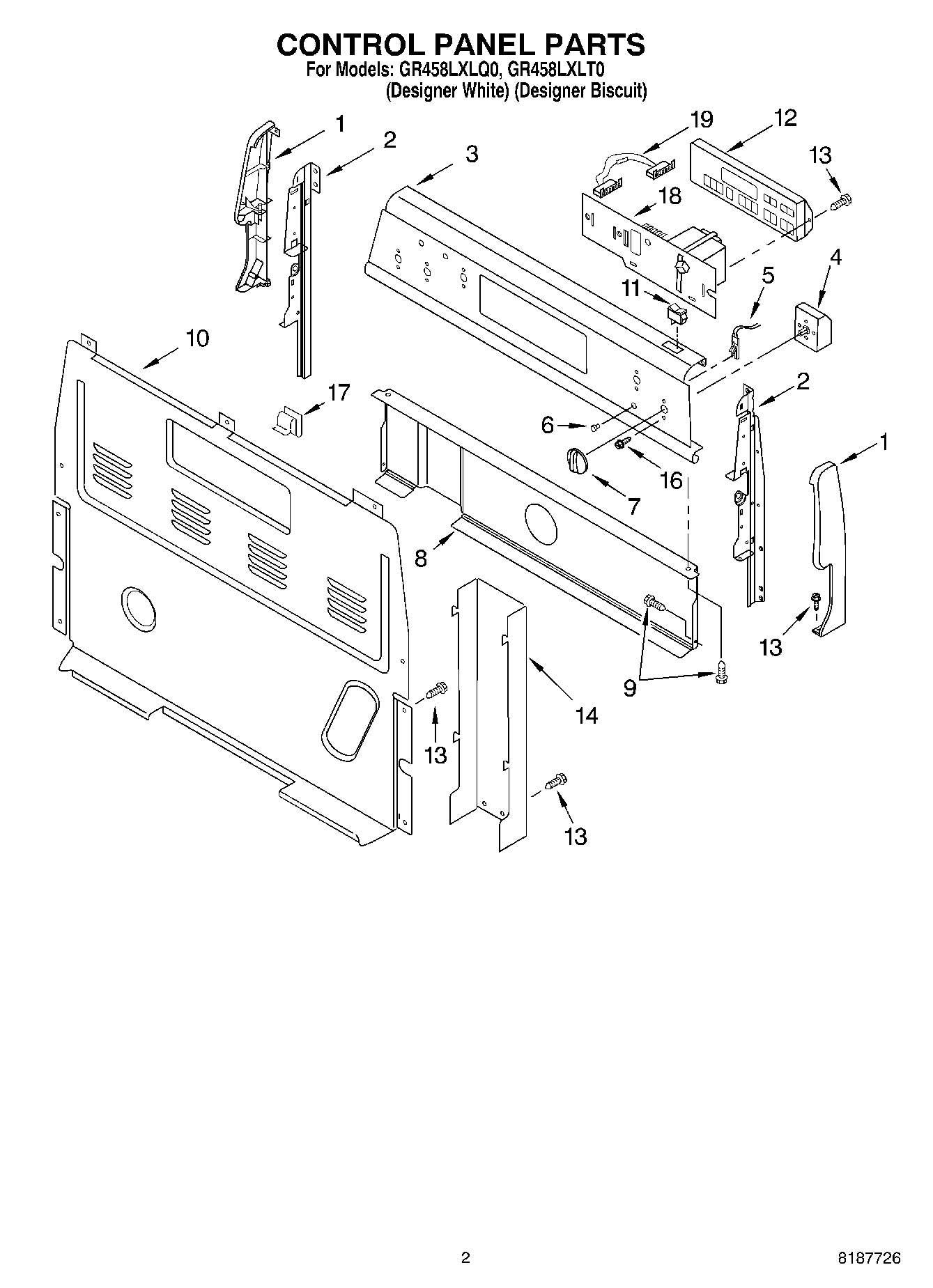

GR458LXLQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP9761048 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7Knob, Control (4) (Biscuit)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Biscuit)
11Switch, Rocker (White)
12Control, Range (Biscuit)
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18Power Supply, PCA
19Jumper w/ Fuse
