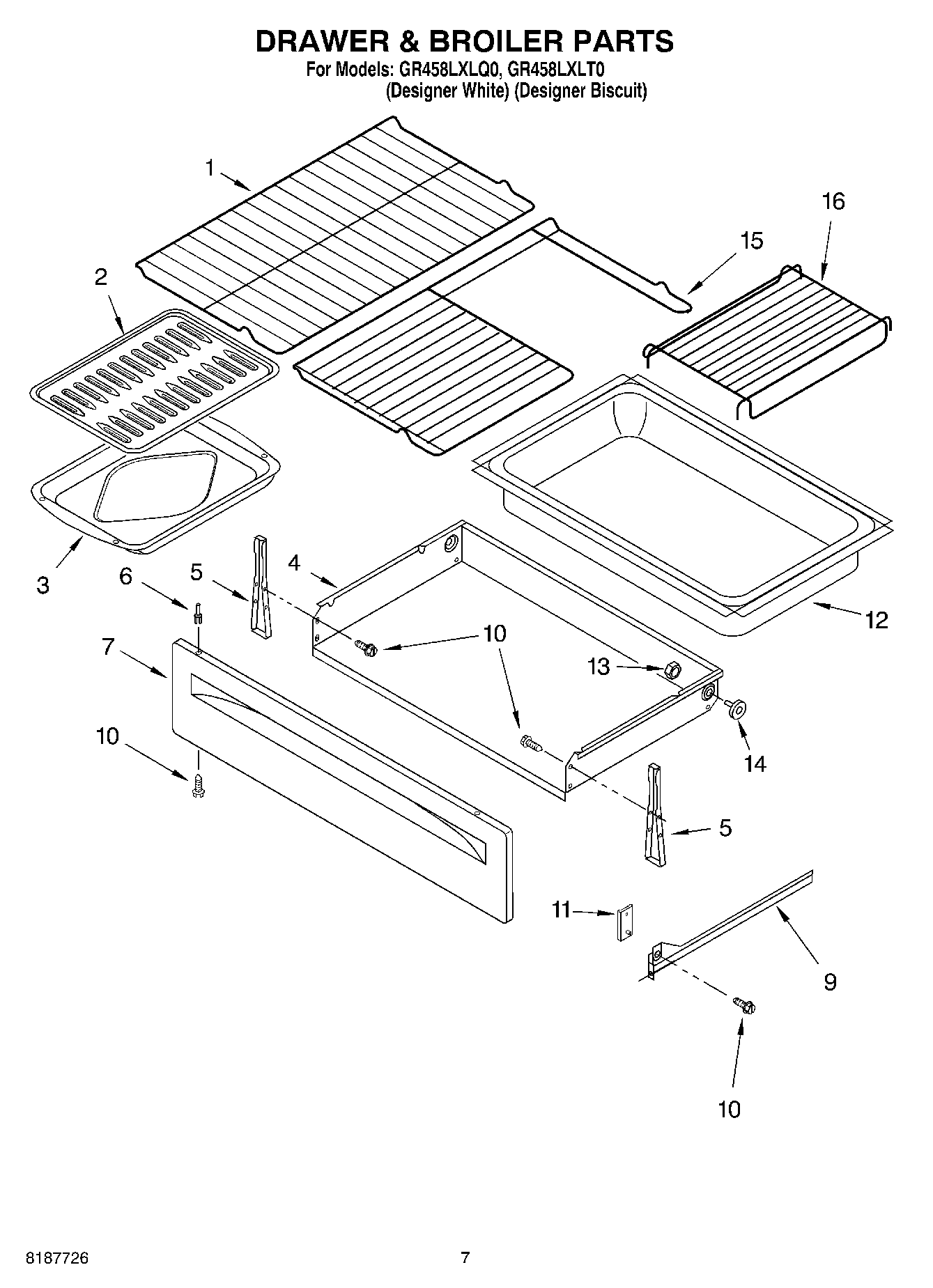

GR458LXLQ0 05 – DRAWER AND BROILER, OPTIONAL

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	W11230476 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
9	Rail, Drawer (Left Hand)
9	Rail, Drawer (Right Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	Liner, Drawer
13	WP487939 Whirlpool Refrigerator Nut
14	814229 Whirlpool Primary Roller
15	WP8274021 Whirlpool Oven Rack
16	1
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	WPL 8524112
16	W11244557 Whirlpool Screw
16	WPL 8523711
16	WPL 8522789
16	WPL 8523717
16	WPL 8524070
16	WP8274022 Whirlpool Oven Rack
16	3184020 Whirlpool Oven Wire
16	WPL 8273266
16	WP3196154 Whirlpool Screw Assembly
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Grease
16	3196696 Whirlpool Clip
16	8212471 Whirlpool Oven Paint
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
16	511873 Whirlpool Refrigerator Paint
16	4392899 Whirlpool Biscuit Touch-Up Paint
16	350942 Whirlpool Spray Paint
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	4392901 Whirlpool Biscuit Spray Paint
16	Clip, Ground Wire
16	3400964 Whirlpool Oven Clip
16	814381 Whirlpool Pin
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	8528351 Whirlpool Clip
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	350930 Whirlpool White Spray Paint
