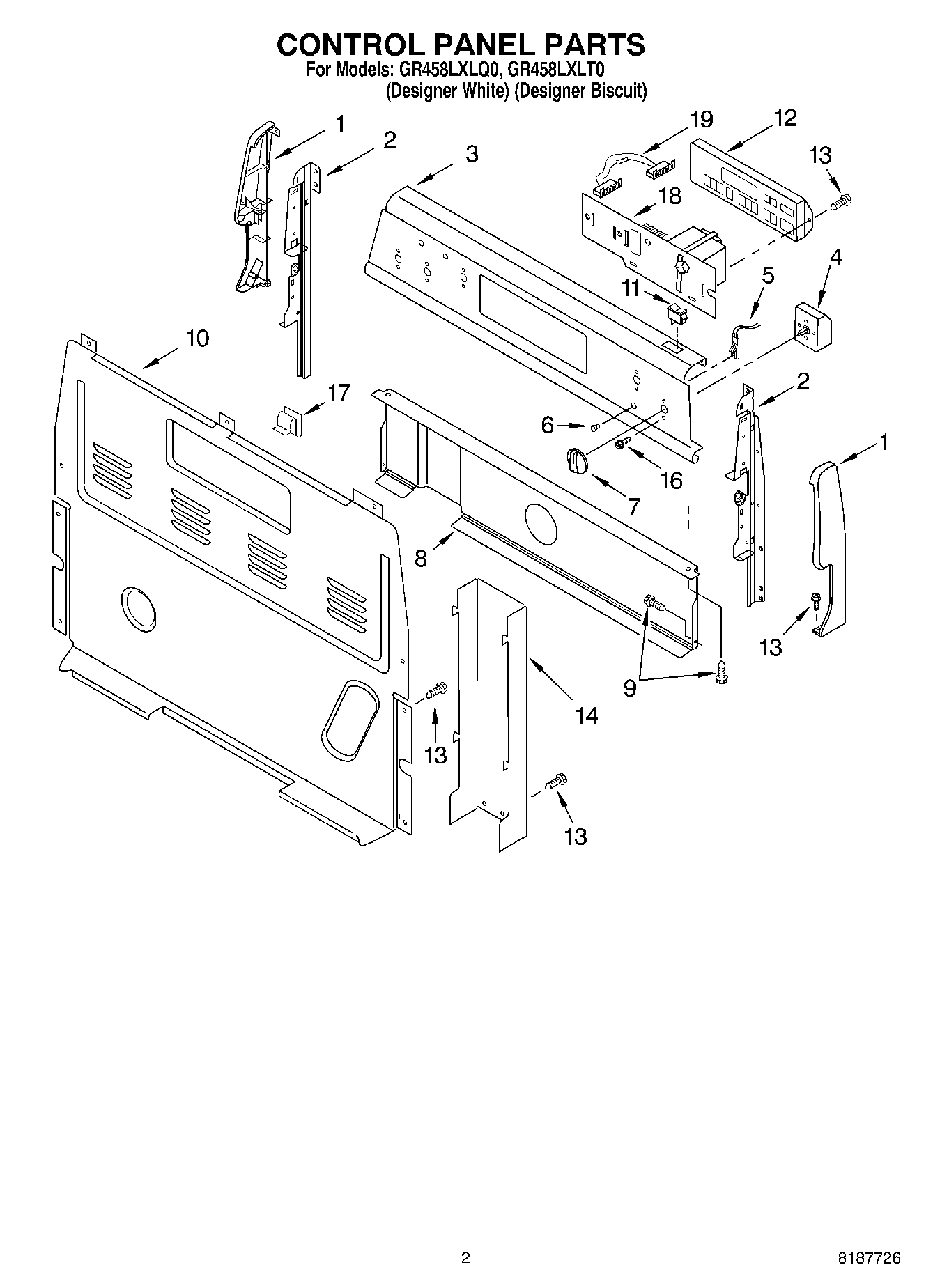

GR458LXLT0 02 – CONTROL PANELadmin2025-04-26T12:00:16+00:00GR458LXLT0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Endcap (White Left Hand) |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | Endcap (White Right Hand) |
| 1 | Endcap (Biscuit Right Hand) |
| 2 | Support, Endcap (Right Hand) |
| 2 | Support, Endcap (Left Hand) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard (White) |
| 4 | WP9761048 Whirlpool Infinite Switch |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 4 | WP3149400 Whirlpool Oven Infinite Switch |
| 5 | WP8523265 Whirlpool Indicator Light |
| 5 | WP8523266 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | WP8522565 Whirlpool Knob |
| 7 | Knob, Control (4) (Biscuit) |
| 8 | Shield, Heat |
| 9 | Screw |
| 10 | WP8272473 Whirlpool Rear Cover |
| 11 | Switch, Rocker (Biscuit) |
| 11 | Switch, Rocker (White) |
| 12 | Control, Range (Biscuit) |
| 12 | Control, Range (White) |
| 13 | SCREW |
| 14 | WPW10326122 Whirlpool Black Cover |
| 16 | WP3400882 Whirlpool Screw |
| 17 | WP8273564 Whirlpool Clip |
| 18 | Power Supply, PCA |
| 19 | Jumper w/ Fuse |
