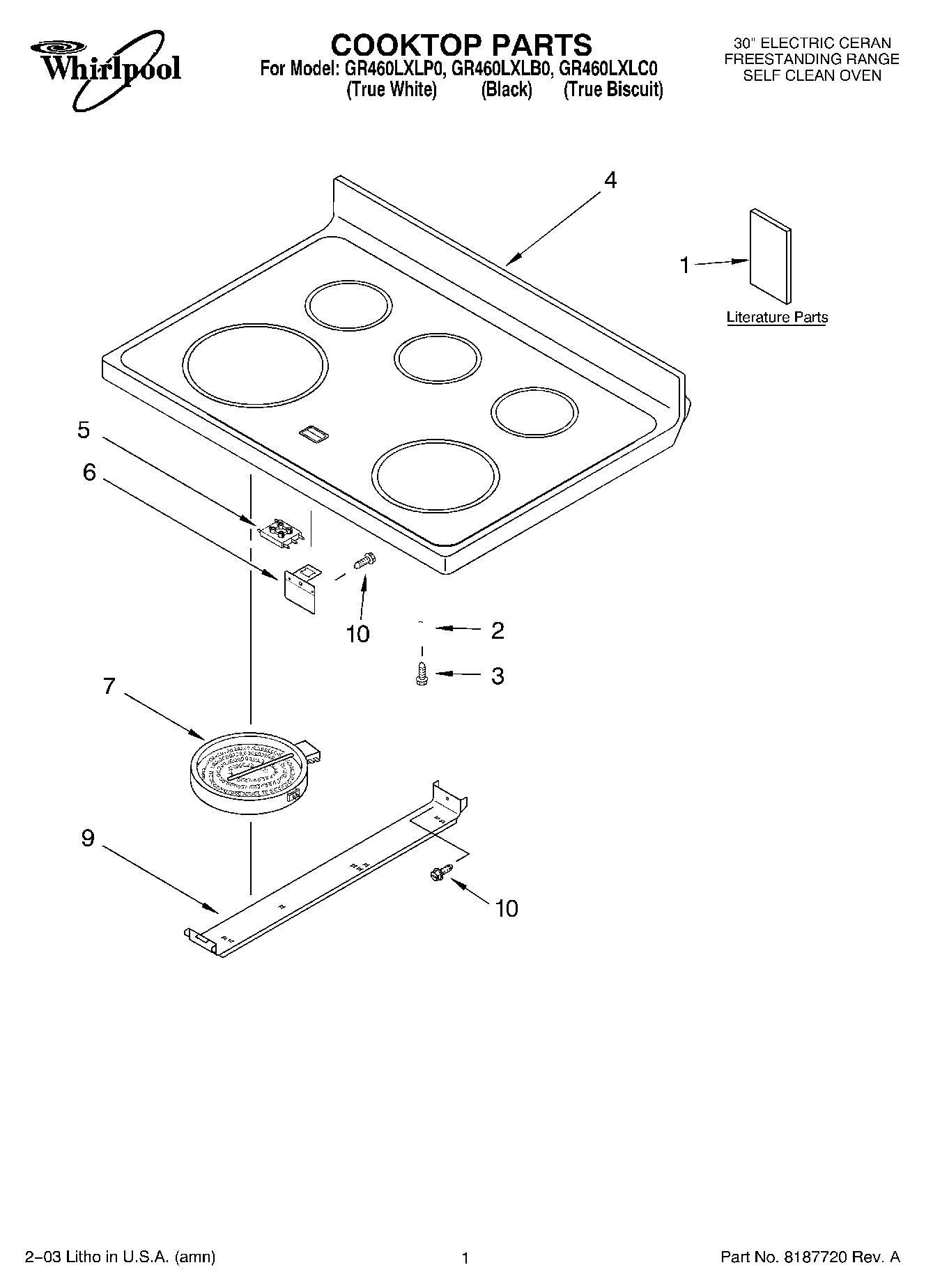

GR460LXLC0 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature (Guide, Use & Care)
1	Literature Parts (English/Spanish)
1	Literature (Instructions, Installation)
1	Literature (Tech Sheet)
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (White)
4	Cooktop
4	Cooktop (Biscuit)
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	WP8523699 Whirlpool Surface Element
7	W10823698 Whirlpool Surface Element Right Rear
7	W10823692 Whirlpool Dual Radiant Element
9	Bracket, Element ((1))
9	Bracket, Element ((2))
10	WP3196557 Whirlpool Screw
