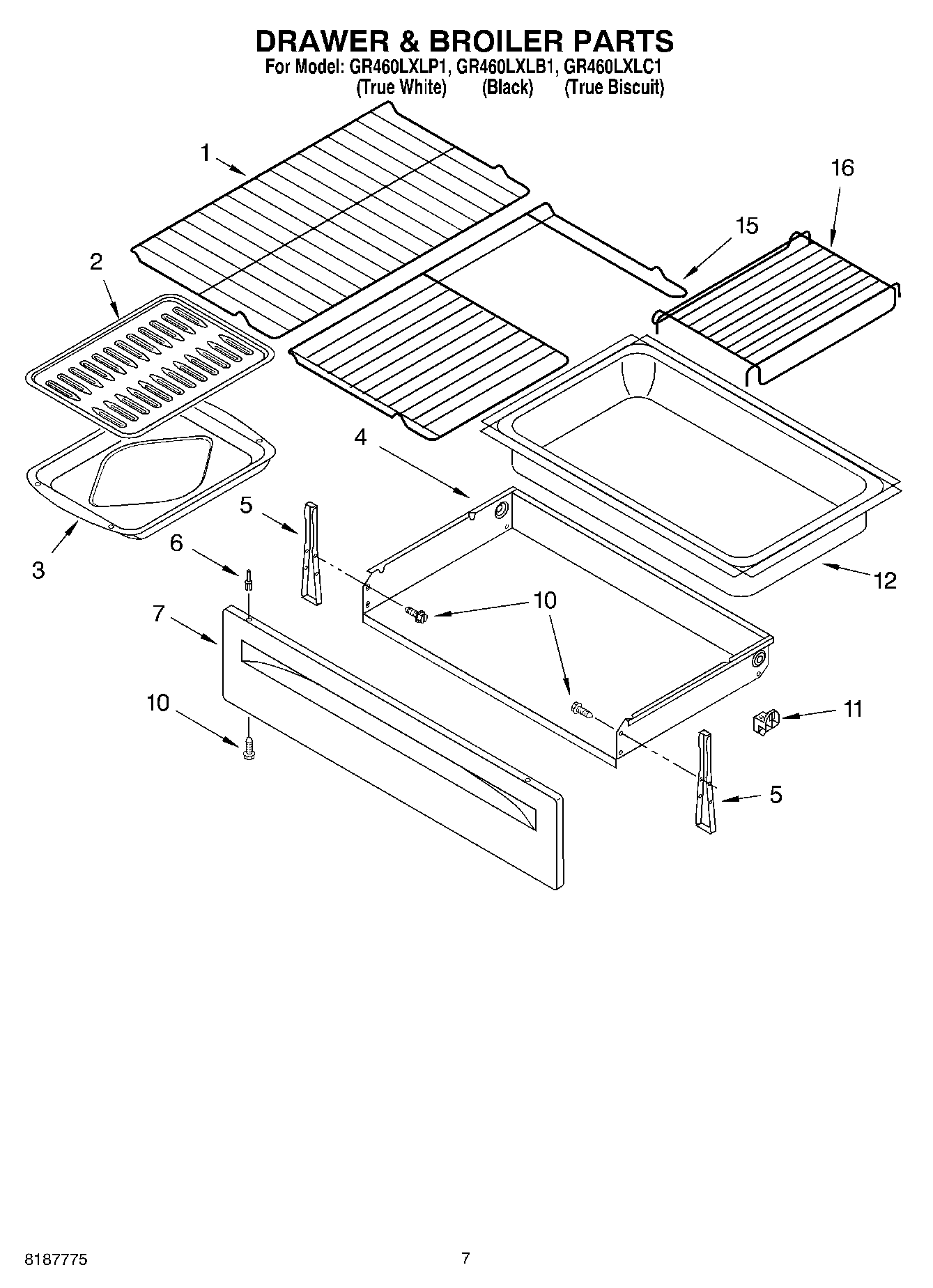

GR460LXLC1 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GR460LXLC1 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GR460LXLC1 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI149248A
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
WPL ARI149241A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WP3196154 Whirlpool Screw Assembly
WPL 8273266
WPL ARI149249A
WPL ARI149247A
WPL ARI149246A
WPL ARI149245A
WPL ARI149244A
WPL ARI149243A
WPL ARI149242A
WPL ARI149240A
WPL 8523712
WPL 8522789
WPL 8523717
WPL 8524072
WPL 8524070
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
Wire, 25“ Roll (White 14 GA.)
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
8528351 Whirlpool Clip
Clip, Ground Wire
18 Ga. 80~c Rating (Red)
814381 Whirlpool Pin
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
15WP8274021 Whirlpool Oven Rack
16WP8274022 Whirlpool Oven Rack
