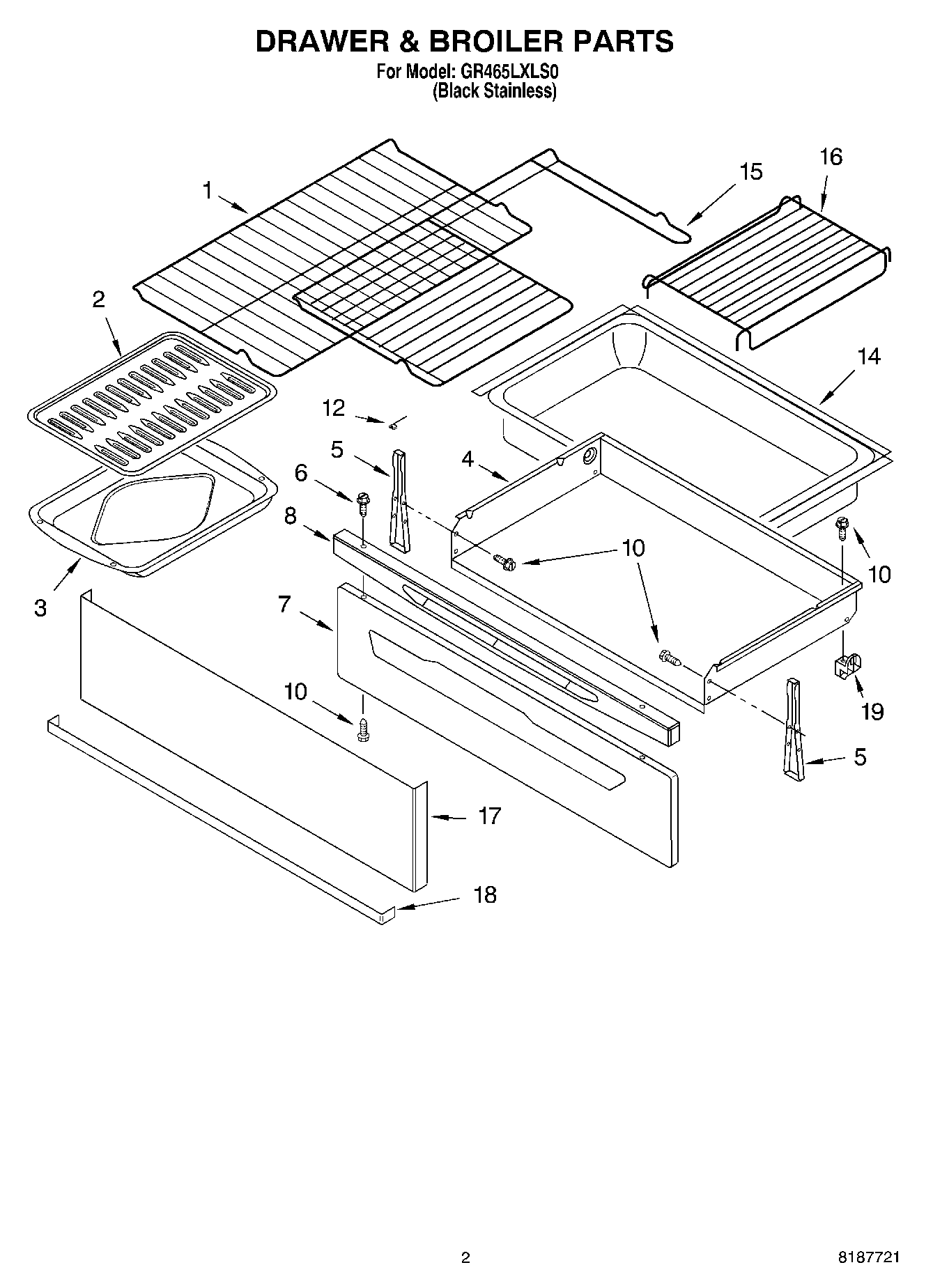

GR465LXLS0 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6Screw
7W11230488 Whirlpool Drawer Panel
8WPL 8053949
10WP3400832 Whirlpool Screw
12WP9781235 Whirlpool Clip
14Liner, Drawer
15WP8274021 Whirlpool Oven Rack
16WP8274022 Whirlpool Oven Rack
17Panel, Stainless
18Bottom, Drawer
19WP8053334 Whirlpool Drawer Glide
