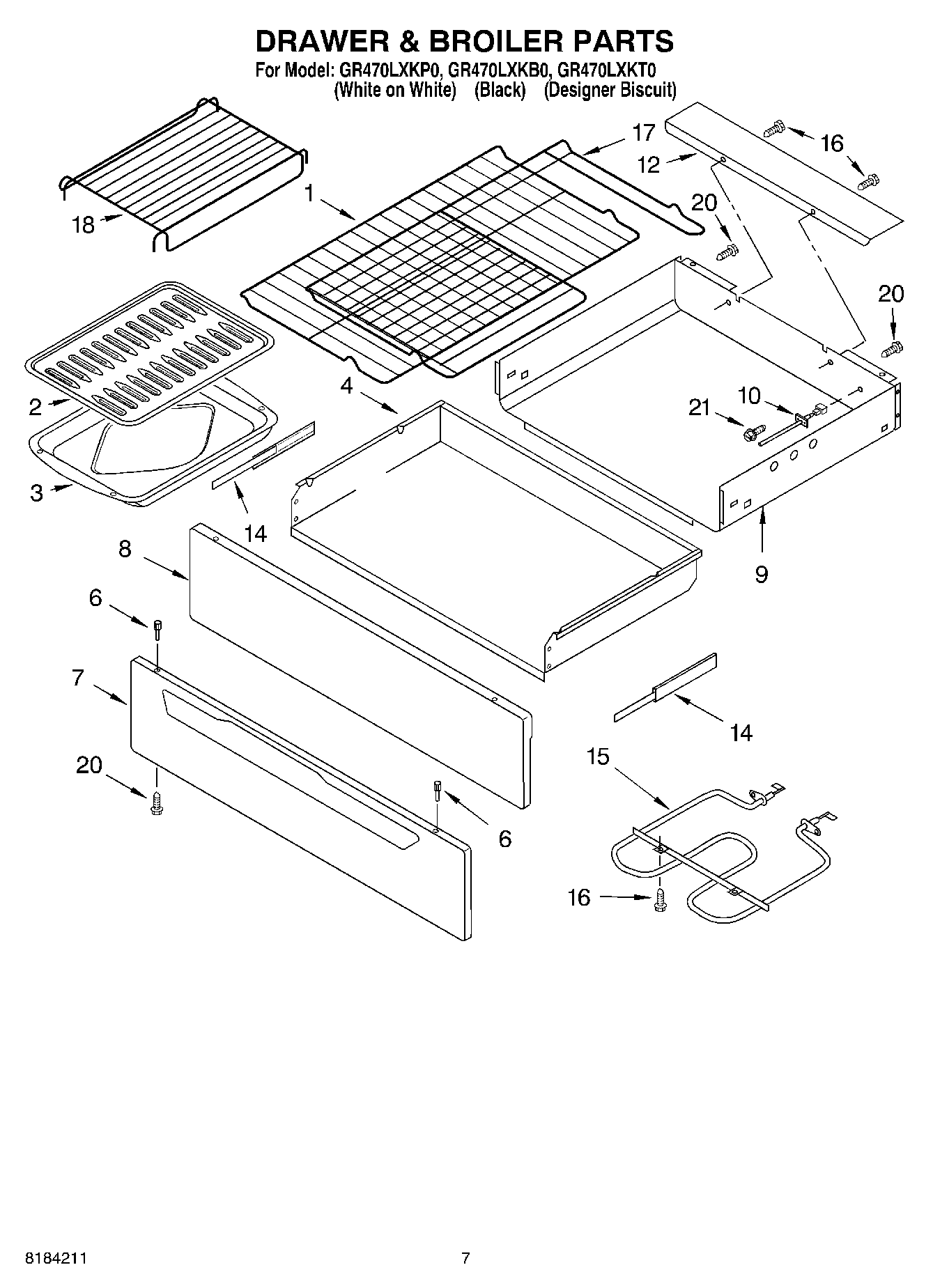

GR470LXKT0 05 – DRAWER AND BROILER, OPTIONAL

GR470LXKT0 05 – DRAWER AND BROILER, OPTIONAL

Written by

in

GR470LXKT0 05 – DRAWER AND BROILER, OPTIONAL

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
8Panel, Inner
9Enclosure, Drawer
10WP8274149 Whirlpool Sensor Assembly
12Shield, Element
14Glide, Accuride (Left Hand)
14Glide, Accuride (Right Hand)
159760775 Whirlpool Oven Warm Element
16SCREW
17WP8274021 Whirlpool Oven Rack
18WP8274022 Whirlpool Oven Rack
20WP3400832 Whirlpool Screw
21Grease
213196696 Whirlpool Clip
213184020 Whirlpool Oven Wire
218212471 Whirlpool Oven Paint
21W11244557 Whirlpool Screw
218273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21WP3196154 Whirlpool Screw Assembly
21WPL 8273266
21WP3196170 Whirlpool Screw
21WPL 8053692
21WPL 8273907
21WPL 8273908
21WPL 8522522
21WPL 8522604
211
21Wire (14 Ga. 200 c Brown)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21FOIL, ALUMINUM OVEN (18“ X 25 )
21WPW10208653 Whirlpool Insulation
21WPL 799832
21PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21511873 Whirlpool Refrigerator Paint
214392901 Whirlpool Biscuit Spray Paint
214392899 Whirlpool Biscuit Touch-Up Paint
21350942 Whirlpool Spray Paint
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21Wire, 25“ Roll (White 14 GA.)
21285006 Whirlpool Spray
2118 Ga. 80~c Rating (Red)
21Wire (12 Ga. 150 c Black)
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21242831 Whirlpool Oven Wire
21Clip, Ground Wire
213400964 Whirlpool Oven Clip
21814381 Whirlpool Pin
21W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21350930 Whirlpool White Spray Paint
