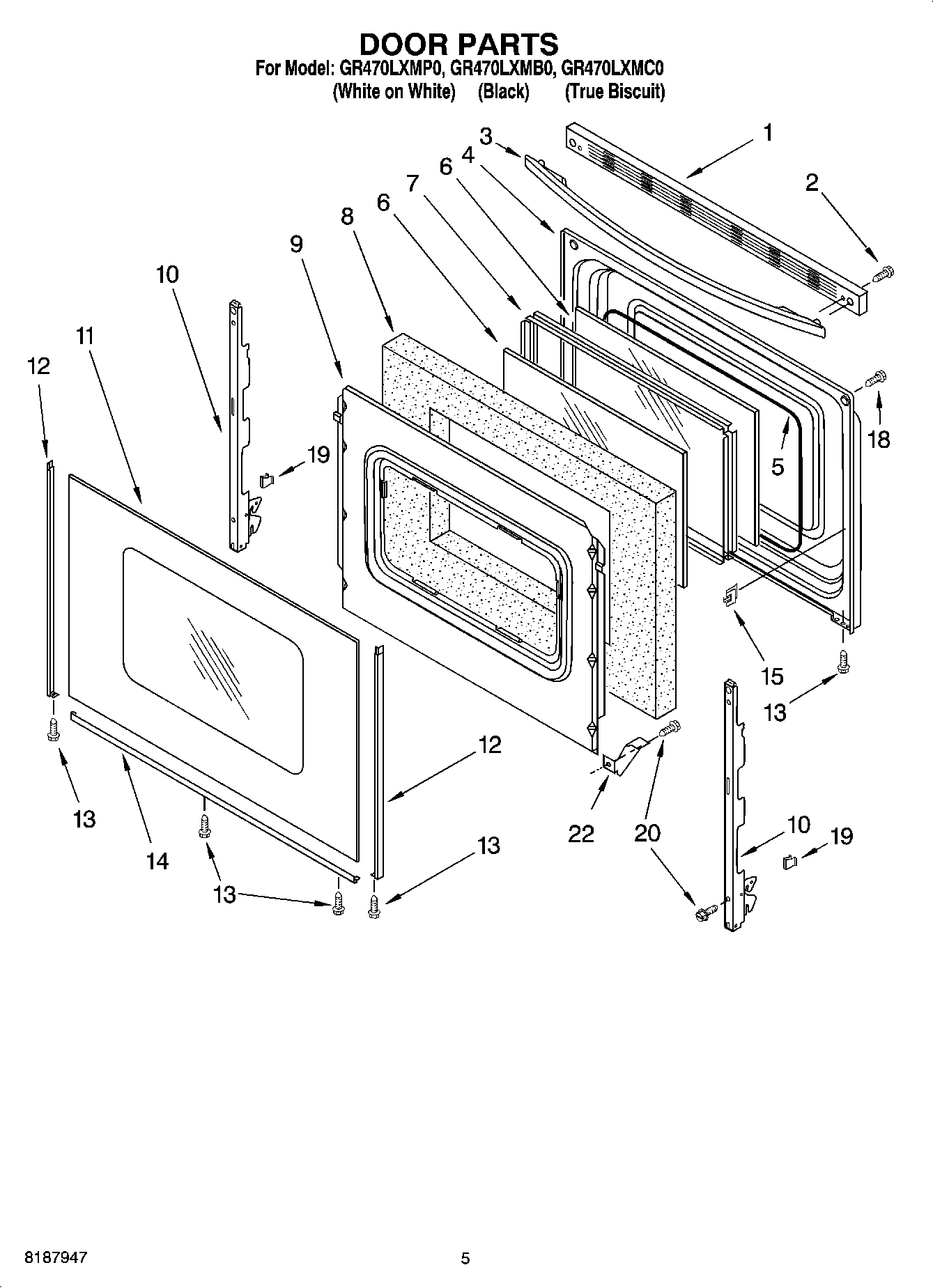

GR470LXMC0 04 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Biscuit)
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
10	Hinge, Door (W/Dampener)
10	Hinge, Door (w/o Dampener)
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
