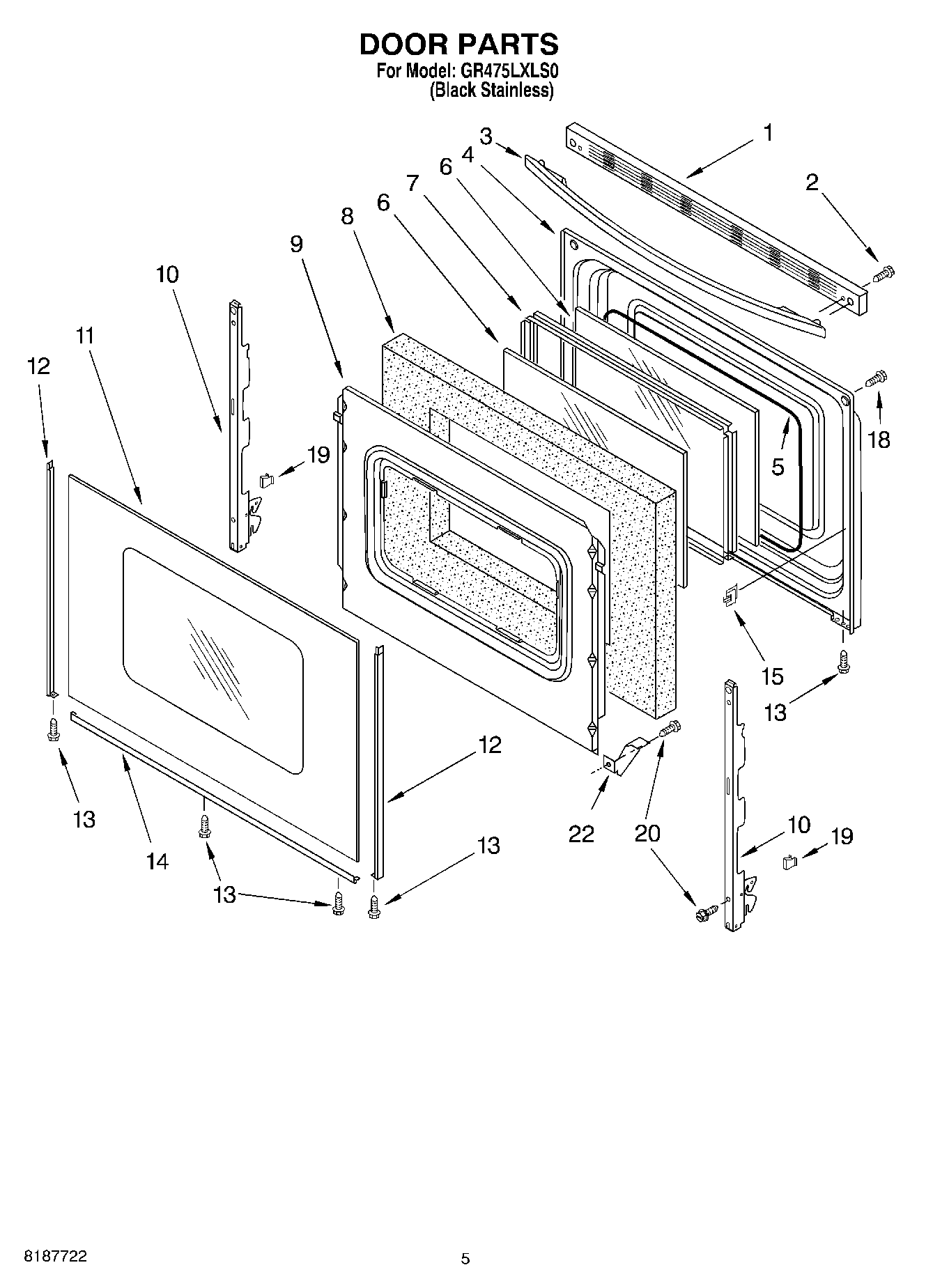

GR475LXLS0 04 – DOOR

GR475LXLS0 04 – DOOR

Written by

in

GR475LXLS0 04 – DOOR

Products

PositionProduct
1Trim, Top (Stainless Model)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10Hinge, Door
11WPW10330077 Whirlpool Door Glass
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
