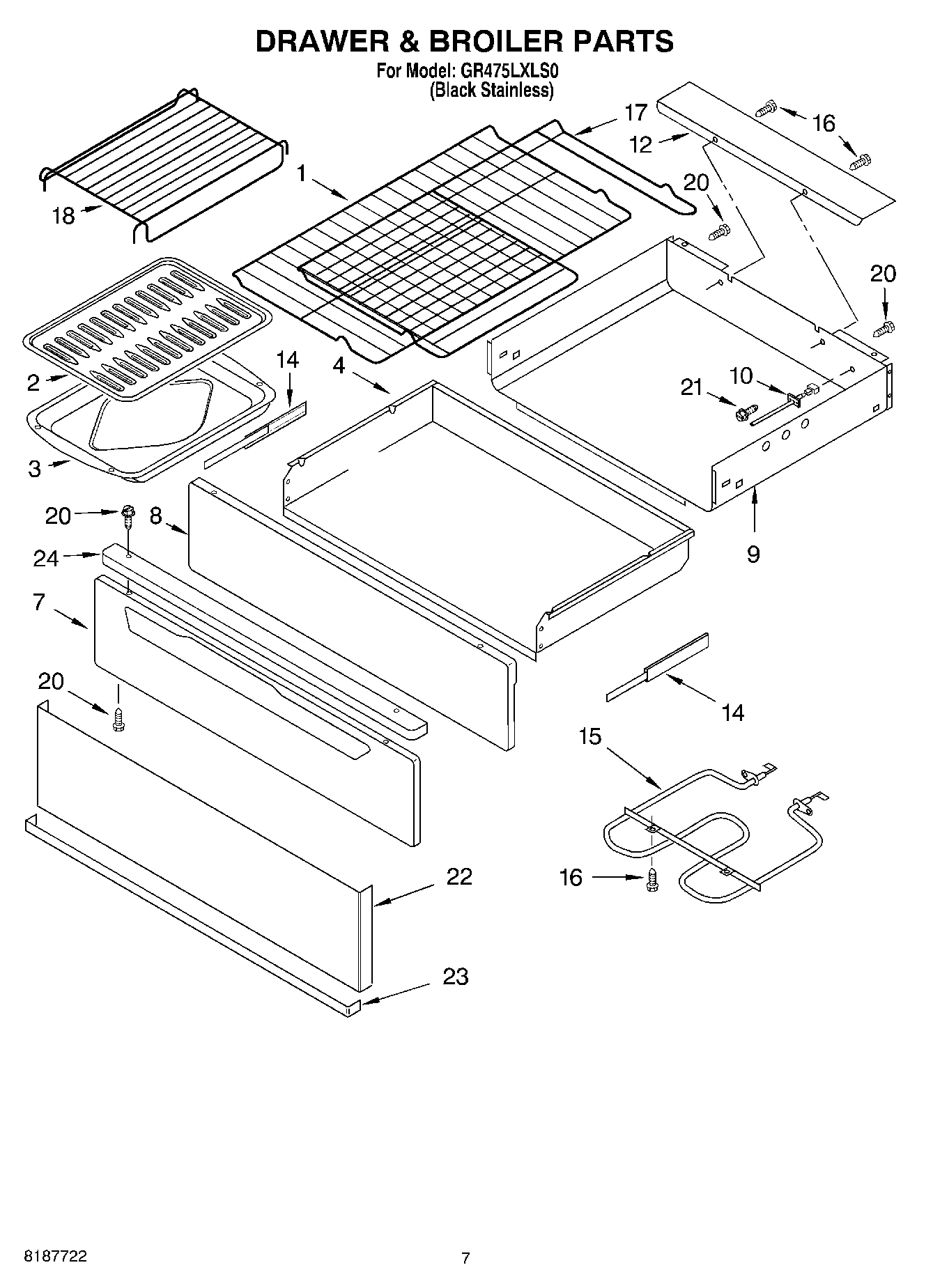

GR475LXLS0 05 – DRAWER AND BROILER

GR475LXLS0 05 – DRAWER AND BROILER

Written by

in

GR475LXLS0 05 – DRAWER AND BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
7W11230488 Whirlpool Drawer Panel
8Panel, Inner
9Enclosure, Drawer
10WP8274149 Whirlpool Sensor Assembly
12Shield, Element
14Glide, Accuride (Left Hand)
14Glide, Accuride (Right Hand)
159760775 Whirlpool Oven Warm Element
16SCREW
17WP8274021 Whirlpool Oven Rack
18WP8274022 Whirlpool Oven Rack
20WP3400832 Whirlpool Screw
21WP3196170 Whirlpool Screw
22Panel, Stainless
23Bottom, Drawer
24WPL 8053949
24W11244557 Whirlpool Screw
248212471 Whirlpool Oven Paint
243184020 Whirlpool Oven Wire
243196696 Whirlpool Clip
24WPL 8523713
24Grease
248273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
24WP3196154 Whirlpool Screw Assembly
24WPL 8273266
24WPL 8524072
24WPL 8524070
24511873 Whirlpool Refrigerator Paint
24WPL 8273908
24WPL 8523717
241
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24FOIL, ALUMINUM OVEN (18“ X 25 )
24WPW10208653 Whirlpool Insulation
24WPL 799832
24PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
244392901 Whirlpool Biscuit Spray Paint
244392899 Whirlpool Biscuit Touch-Up Paint
24350942 Whirlpool Spray Paint
24799344 Whirlpool Refrigerator Paint
2472017 Whirlpool Appliance Touch-Up Paint White
24285006 Whirlpool Spray
248528351 Whirlpool Clip
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Blue)
24242831 Whirlpool Oven Wire
24Clip, Ground Wire
24814381 Whirlpool Pin
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24350930 Whirlpool White Spray Paint
