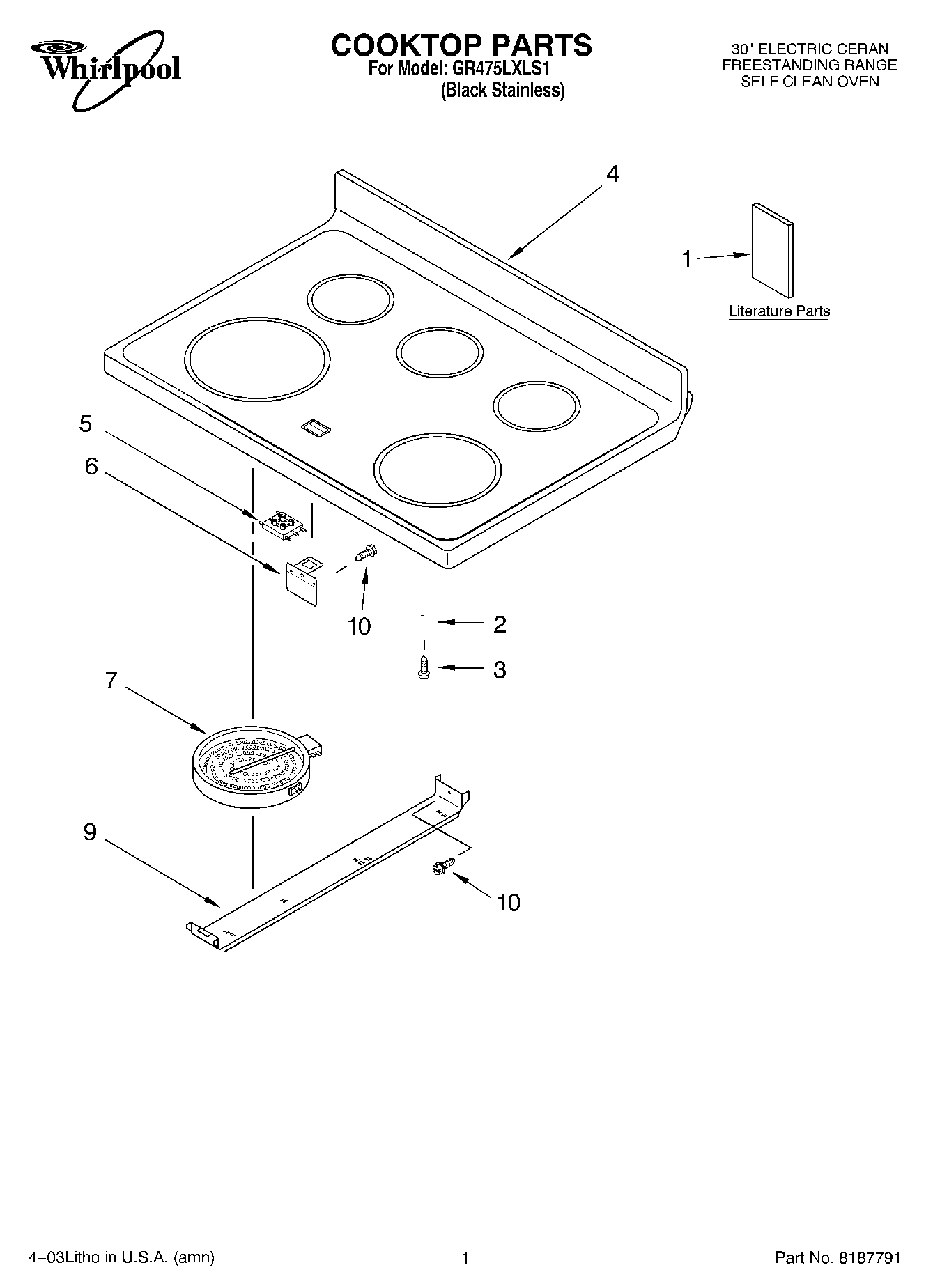

GR475LXLS1 01 – COOKTOP PARTS

GR475LXLS1 01 – COOKTOP PARTS

Written by

in

GR475LXLS1 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature (Instructions, Installation)
1Literature (Tech Sheet)
1Literature (Guide, Use & Care)
1Literature Parts (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7WP8523699 Whirlpool Surface Element
7W10823698 Whirlpool Surface Element Right Rear
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
9Bracket, Element ((1))
10WP3196557 Whirlpool Screw
