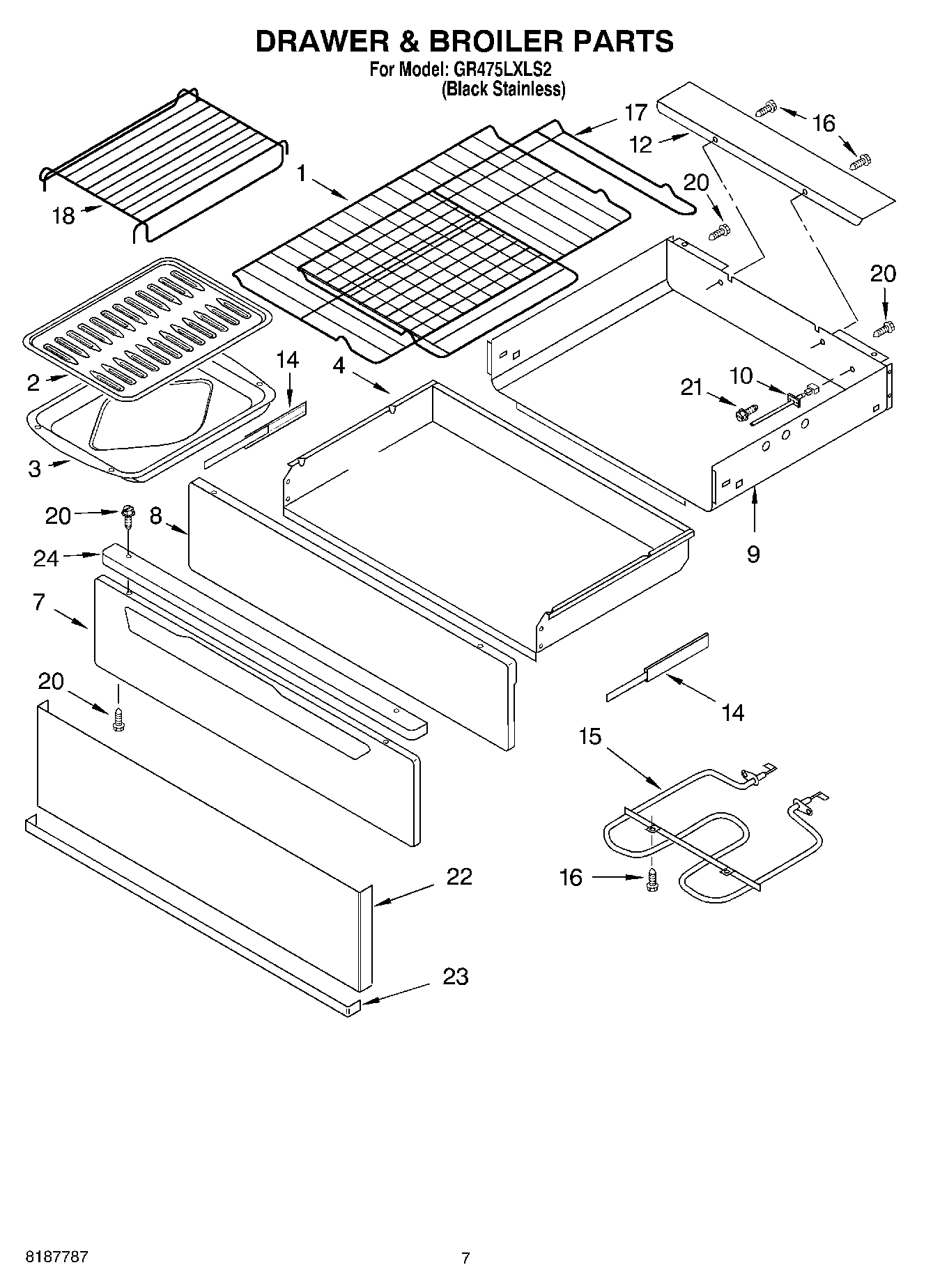

GR475LXLS2 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GR475LXLS2 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GR475LXLS2 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI149356A
WPL 8316781
WPL 8273266
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
WPL 8273907
WPL 8273908
WPL ARI149355A
WPL ARI149354A
WPL ARI149353A
WPL ARI149352A
WPL ARI149351A
WPL ARI149350A
WPL ARI149349A
WPL 8523717
WPL 8524263
WPL 8524072
WPL 8524070
WPL ARI149357A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25“ Roll (White 14 GA.)
8528351 Whirlpool Clip
Wire (14 Ga. 150 c Blue)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
814381 Whirlpool Pin
Clip, Ground Wire
242831 Whirlpool Oven Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
7W11230488 Whirlpool Drawer Panel
8Panel, Inner
9Enclosure, Drawer
10WP8274149 Whirlpool Sensor Assembly
12Shield, Element
14Glide, Accuride (Right Hand)
14Glide, Accuride (Left Hand)
159760775 Whirlpool Oven Warm Element
16SCREW
17WP8274021 Whirlpool Oven Rack
18WP8274022 Whirlpool Oven Rack
20WP3400832 Whirlpool Screw
21WP3196170 Whirlpool Screw
22Panel, Stainless
23Bottom, Drawer
24WPL 8053949
