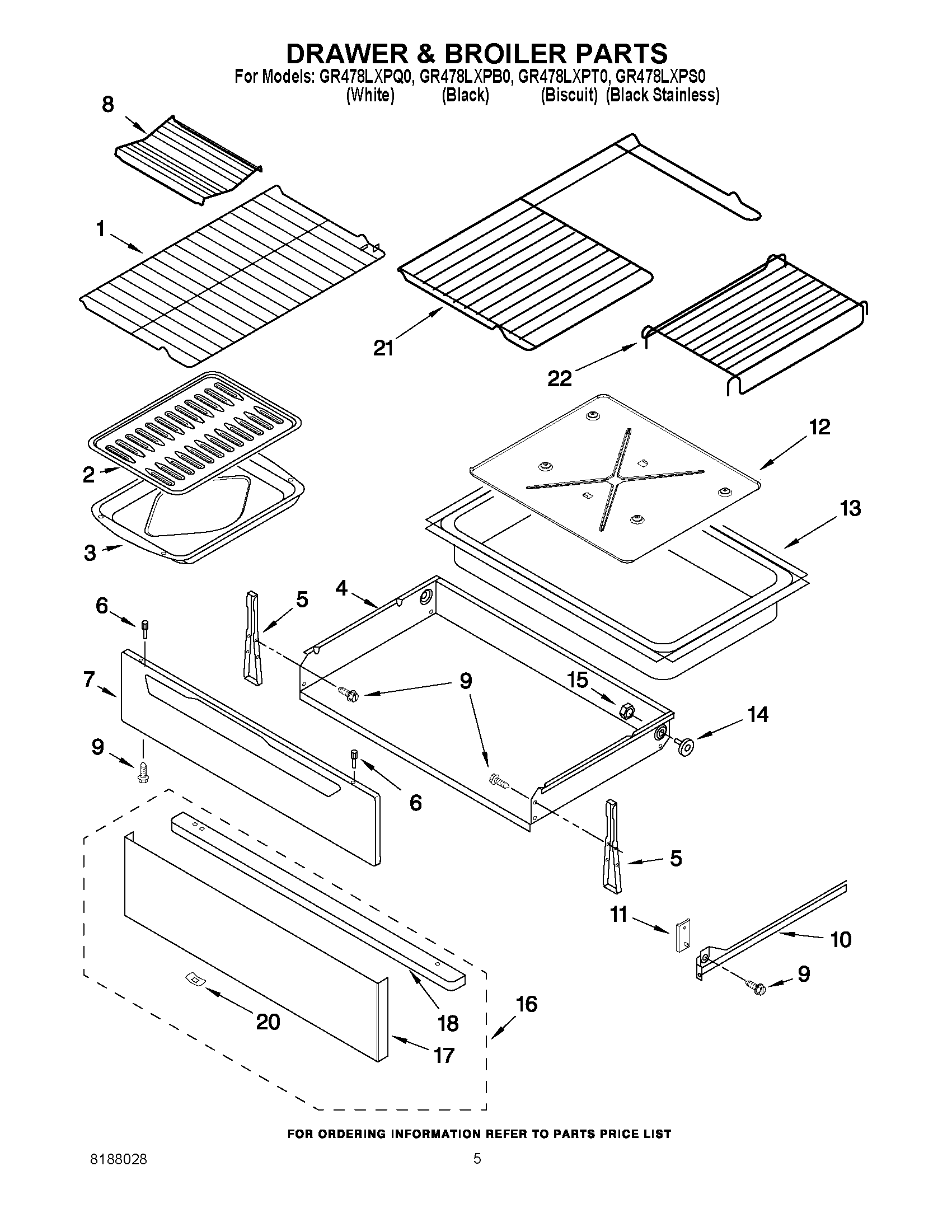

GR478LXPQ0 04 – DRAWER & BROILER PARTS

GR478LXPQ0 04 – DRAWER & BROILER PARTS

Written by

in

GR478LXPQ0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
8Rack, Roasting
9WP3400832 Whirlpool Screw
10Rail, Drawer (Right Hand)
10Rail, Drawer (Left Hand)
11Spacer, Glide
12Heat Shield, Drawer
13Liner, Drawer
14814229 Whirlpool Primary Roller
15WP487939 Whirlpool Refrigerator Nut
16CABINET (NOT A SERVICEABLE PART)
17Panel, Stainless
18Handle
20WP9781235 Whirlpool Clip
21WP8274021 Whirlpool Oven Rack
22WP8274022 Whirlpool Oven Rack
