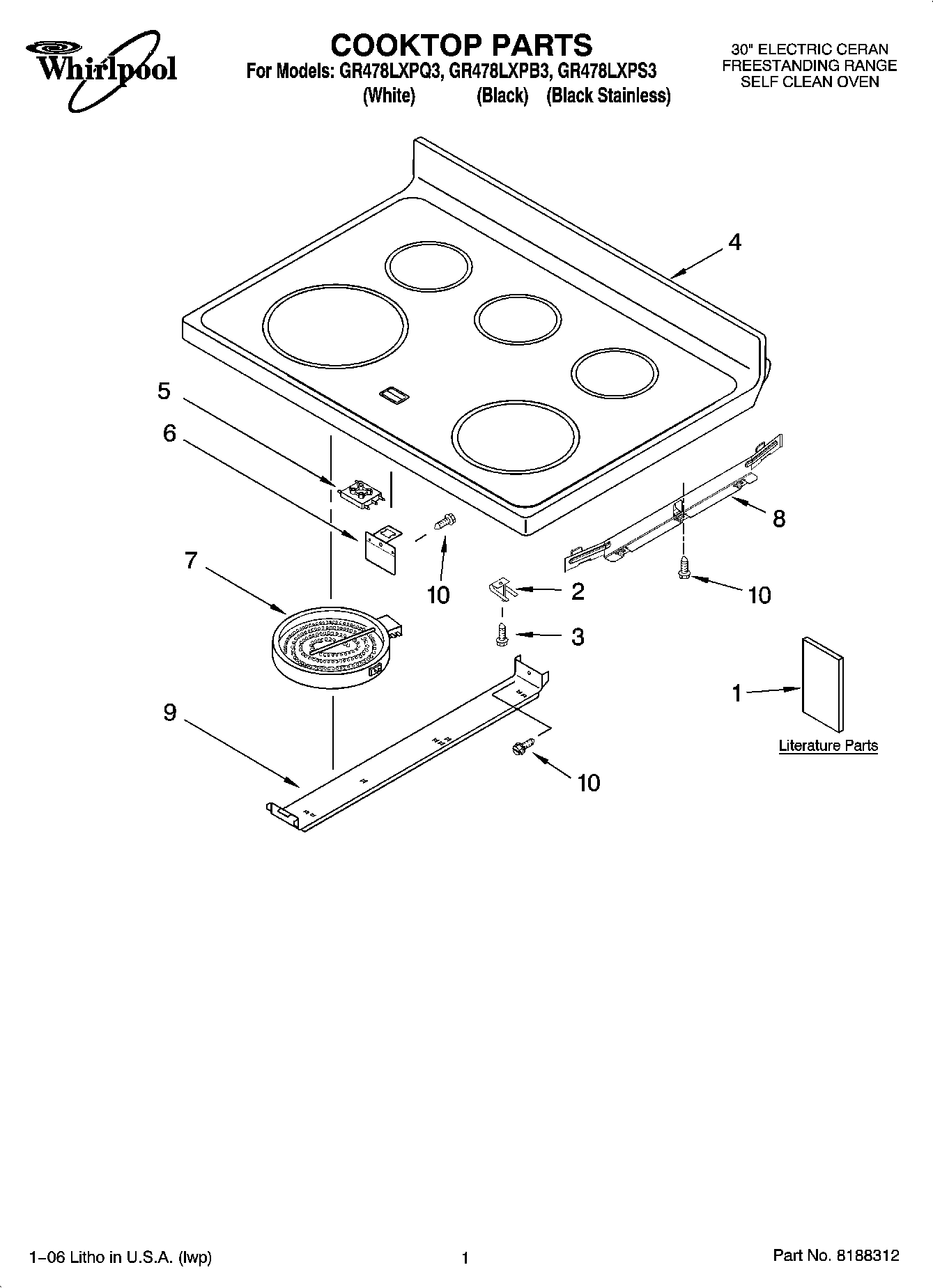

GR478LXPS3 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Owner`s Manual
1	Tech Sheet
1	Anti-Tip Template (English/French)
1	Installation Instructions Anti-Tip Template
1	Anti-Tip Template (English/Spanish)
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (Black)
4	Cooktop (White)
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	WP8523699 Whirlpool Surface Element
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	W10823692 Whirlpool Dual Radiant Element
8	WPL 8524132
9	Bracket, Element ((1))
9	Bracket, Element ((2))
10	WP3196557 Whirlpool Screw
