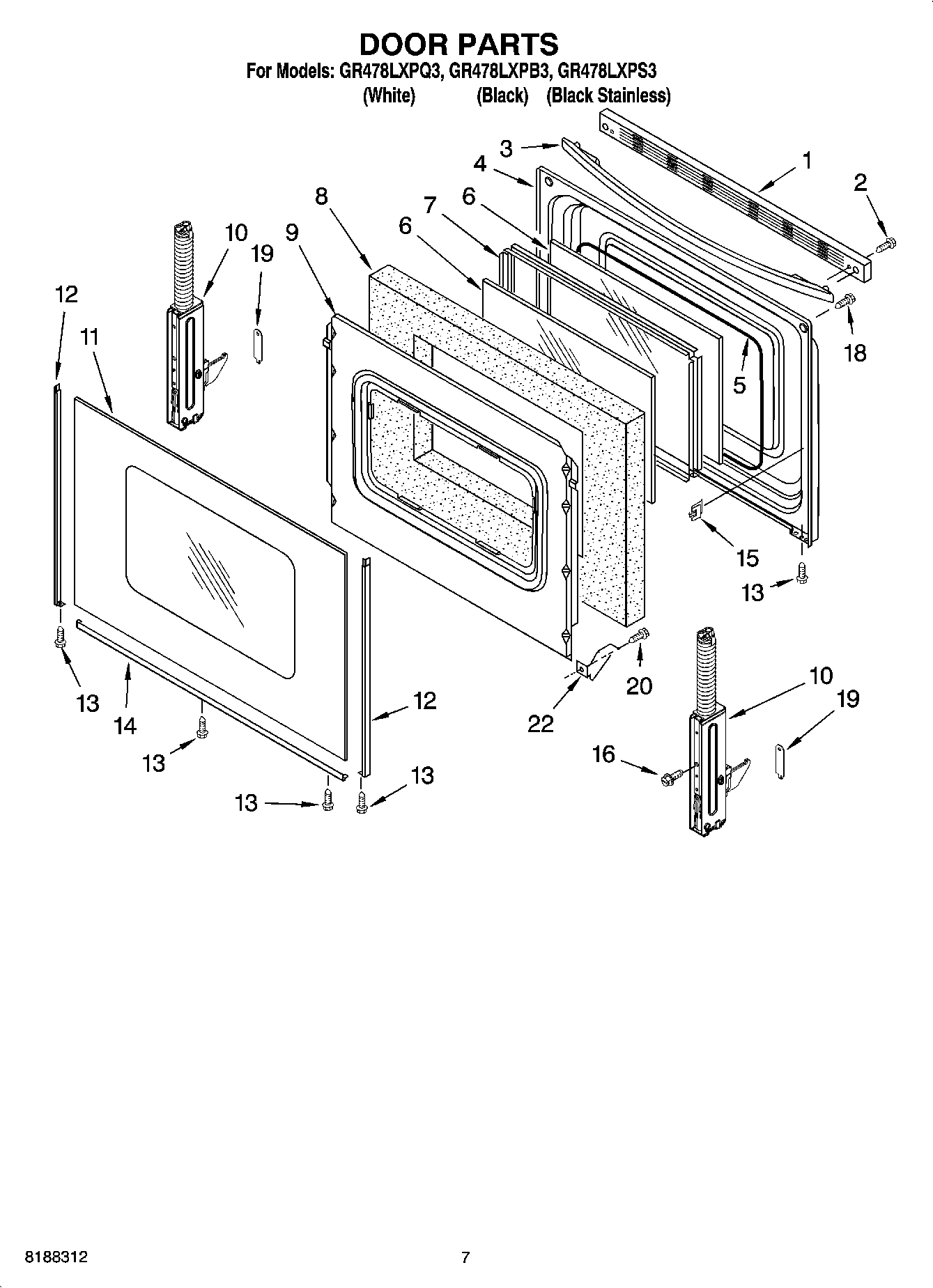

GR478LXPS3 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
GR478LXPS3 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WP3196154 Whirlpool Screw Assembly
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 9761455
Harness, Wire (Main)
Clip, Ground Wire
W11209404 Whirlpool Wire Harness
3400964 Whirlpool Oven Clip
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
WPL 9756550
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL ARI149470A
WPL 9758193
WPL 9761453
Wire (14 Ga. 200 c Brown)
Harness, Wire (Console)
WPL ARI149462A
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI149469A
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL ARI149468A
Wire, 25` Roll (Red 14 Ga.)
WPL ARI149463A
WPL ARI149464A
WPL ARI149465A
WPL ARI149466A
W11447673 Whirlpool Range Tip Anchor
WPL ARI149467A
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
350930 Whirlpool White Spray Paint
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Black and S.Steel Models)
1
Trim, Top (Black)
2
WP3196164 Whirlpool Screw
3
WPW10202216 Whirlpool Door Handle
3
WPW10202217 Whirlpool Door Handle
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Stainless Steel)
12
WP8523172 Whirlpool Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523180 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
16
WPW10031790 Whirlpool Screw
18
W10777162 Whirlpool Screw
19
9761517 Whirlpool Oven Clip Assembly
20
WP3196175 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
