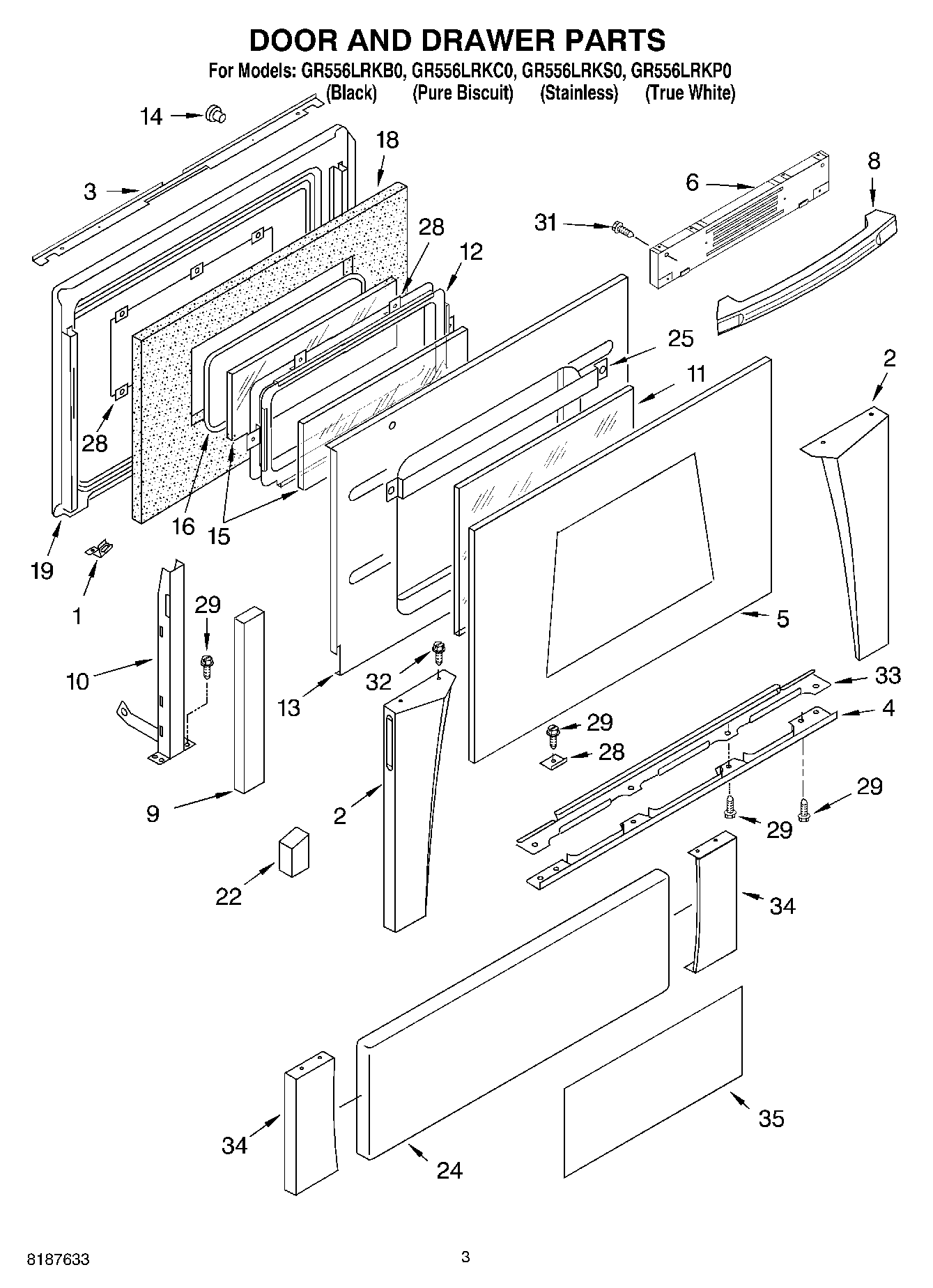

GR556LRKB0 02 – DOOR AND DRAWER PARTS

Products

Position	Product
1	Retainer, Glass
2	Panel, Oven Door Right Side (Stainless)
2	Panel, Oven Door Right Side (White)
2	Panel, Oven Door Right Side (Biscuit)
2	Panel, Oven Door Right Side (Black)
2	Panel, Oven Door Left Side (Stainless)
2	Panel, Oven Door Left Side (White)
2	Panel, Oven Door Left Side (Biscuit)
2	Panel, Oven Door Left Side (Black)
3	Bracket, Vent Trim
4	Trim, Bottom Glass
5	Glass, Door (White)
5	Glass, Door (Biscuit)
5	Glass, Door (Black)
6	Vent, Door (Black)
6	Vent, Door (White)
6	Vent, Door (Biscuit)
8	Handle, Door (Black)
8	Handle, Door (Biscuit)
8	Handle, Door (White)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	Baffle, Glass
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	Glass, Pyro
16	WP9755177 Whirlpool Wind Gasket
18	Insulation, Door
19	Liner, Door
22	Insulation (2)
24	Panel, Lower (Black)
24	Panel, Lower (Biscuit)
24	Panel, Lower (White)
25	WP90296 Whirlpool Clip
25	Channel, Heat
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
31	WP179051 Whirlpool Screw
32	Screw (Biscuit)
32	Screw (Black)
32	Screw (Bright Zinc)
32	Screw (White)
33	Deflector, Steam
34	Cover, Lower Left Side (White)
34	Cover, Lower Left Side (Black)
34	Cover, Lower Left Side (Biscuit)
34	Cover, Lower Left Side (Stainless)
34	Cover,
34	WPL 9755037PC
34	WPL 9755037PW
34	WPL 9755037SS
35	WPL 9755068PB
35	WPL 9755068PW
35	WPL 9755068PC
