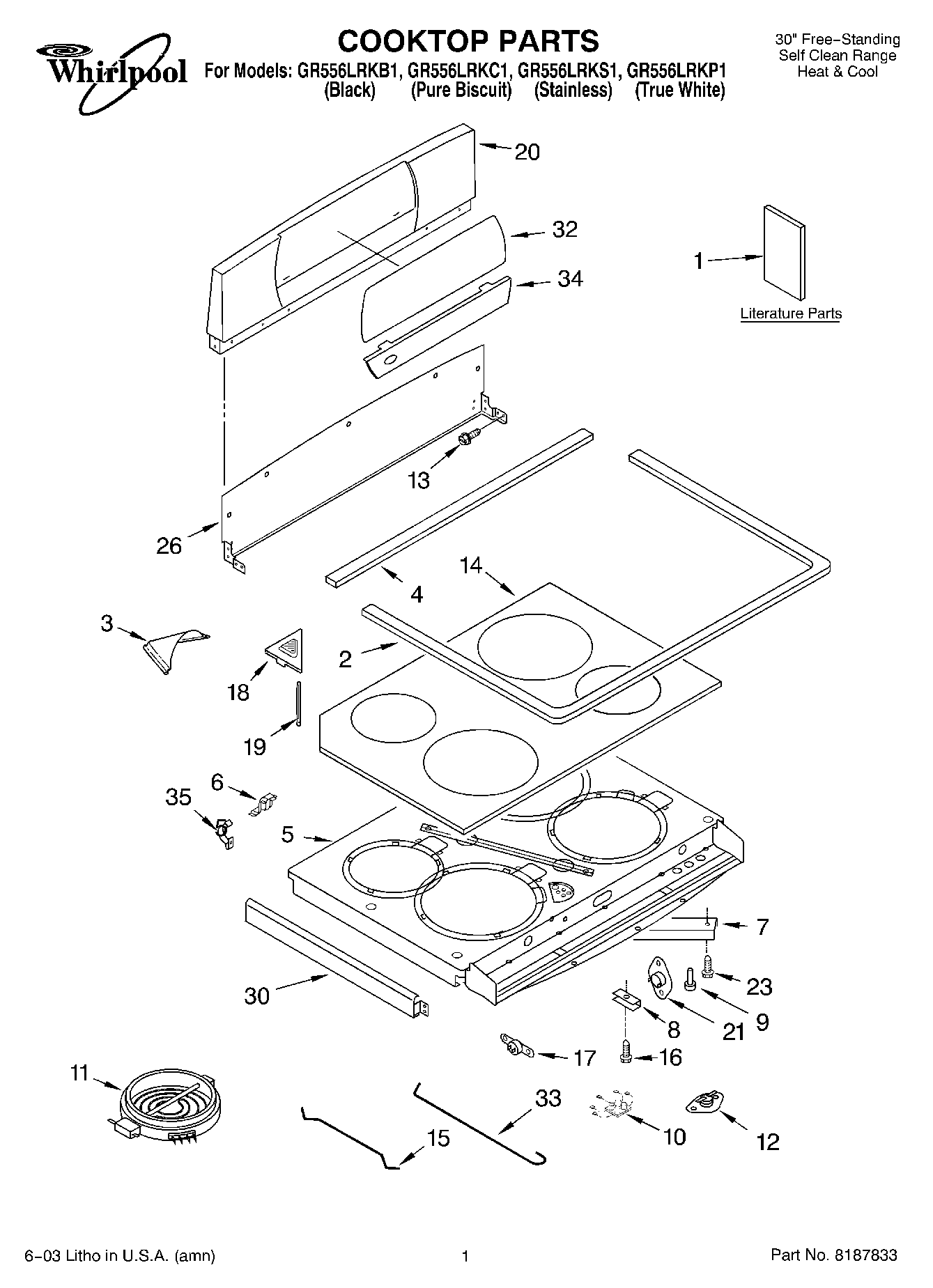

GR556LRKB1 01 – COOKTOP PARTSadmin2025-04-26T10:58:52+00:00GR556LRKB1 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Quick Ref. Guide) |
| 1 | WPL LIT9752775 |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Wiring Diagram) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Deflec, Vent |
| 4 | Gasket, Cooktop (Black) |
| 4 | Gasket, Cooktop (Gray) |
| 5 | Support, Element |
| 5 | Support, Element (P Model Only) |
| 6 | Washer, Pivot |
| 6 | Bracket, Pivot |
| 7 | Brace, Support |
| 8 | Support Clips (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | W10823699 Whirlpool Right Front Surface Element |
| 11 | W10823697 Whirlpool Surface Element |
| 11 | W10823692 Whirlpool Dual Radiant Element |
| 11 | W10823698 Whirlpool Surface Element Right Rear |
| 12 | WP4450934 Whirlpool Thermostat Assembly |
| 14 | Cooktop, Ceran (Black) |
| 14 | Cooktop, Ceran (Biscuit) |
| 14 | Cooktop, Ceran (True White) |
| 15 | Rod, Large Ceran Element |
| 16 | Screw, 10-16 x 1 |
| 17 | WP4159387 Whirlpool Compactor Screw |
| 17 | Thermostat SPST (205) |
| 18 | Cover, Vent (Gray) |
| 18 | Cover, Vent (Black) |
| 19 | Gasket, Vent Cover (Gray) |
| 19 | Gasket, Vent Cover |
| 20 | Backsplash (Black) |
| 20 | Backsplash (Biscuit) |
| 20 | Backsplash (White) |
| 20 | Backsplash (Stainless) |
| 21 | WP9759944 Whirlpool Thermostat |
| 23 | Screw (4) 10 x 1/2 |
| 26 | Cover, Backsplash |
| 30 | Trim, Cooktop (Right Hand) (Black) |
| 30 | WPL 9782632SS |
| 30 | WPL 9782632PW |
| 30 | Trim, Cooktop (Rig |
| 30 | WPL 9782632PC |
| 30 | WPL 9782631PW |
| 30 | WPL 9782632PB |
| 30 | WPL 9782631SS |
| 32 | WPL 9755035PC |
| 32 | WPL 9755035PB |
| 32 | WPL 9755035PW |
| 33 | Rod, Small Ceran Element |
| 34 | WPL 9755455CW |
| 34 | WPL 9755455CC |
| 34 | WPL 9755455CB |
| 35 | 8528351 Whirlpool Clip |
