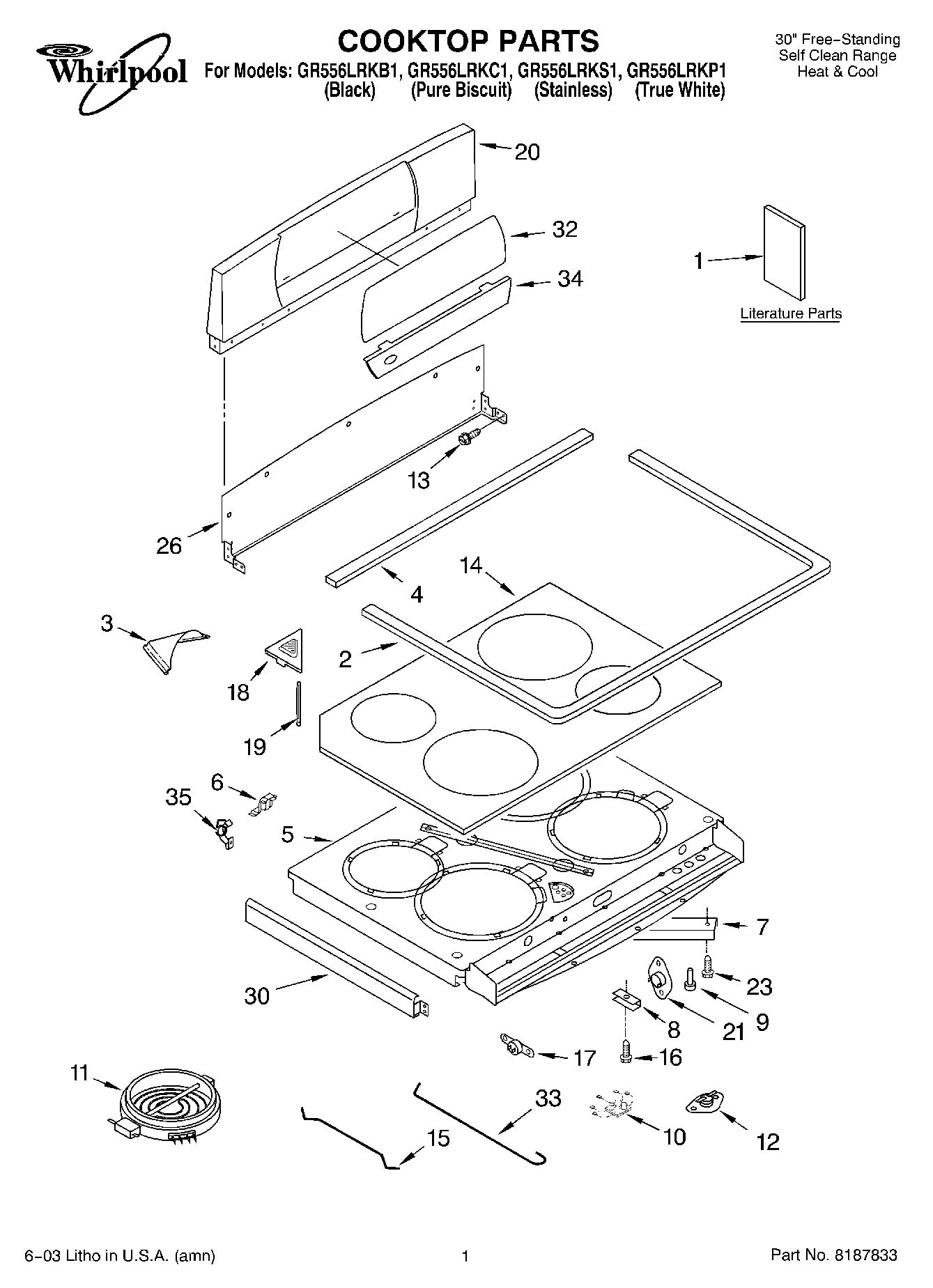

GR556LRKC1 01 – COOKTOP PARTS

GR556LRKC1 01 – COOKTOP PARTS

Written by

in

GR556LRKC1 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
1Literature Parts (Quick Ref. Guide)
1WPL LIT9752775
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2WP9780939 Whirlpool Cooktop Gasket
3Deflec, Vent
4Gasket, Cooktop (Black)
4Gasket, Cooktop (Gray)
5Support, Element
5Support, Element (P Model Only)
6Washer, Pivot
6Bracket, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
12WP4450934 Whirlpool Thermostat Assembly
14Cooktop, Ceran (Black)
14Cooktop, Ceran (Biscuit)
14Cooktop, Ceran (True White)
15Rod, Large Ceran Element
16Screw, 10-16 x 1
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18Cover, Vent (Gray)
18Cover, Vent (Black)
19Gasket, Vent Cover (Gray)
19Gasket, Vent Cover
20Backsplash (Black)
20Backsplash (Biscuit)
20Backsplash (White)
20Backsplash (Stainless)
21WP9759944 Whirlpool Thermostat
23Screw (4) 10 x 1/2
26Cover, Backsplash
30Trim, Cooktop (Right Hand) (Black)
30WPL 9782632SS
30WPL 9782632PW
30Trim, Cooktop (Rig
30WPL 9782632PC
30WPL 9782631PW
30WPL 9782632PB
30WPL 9782631SS
32WPL 9755035PC
32WPL 9755035PB
32WPL 9755035PW
33Rod, Small Ceran Element
34WPL 9755455CW
34WPL 9755455CC
34WPL 9755455CB
358528351 Whirlpool Clip
