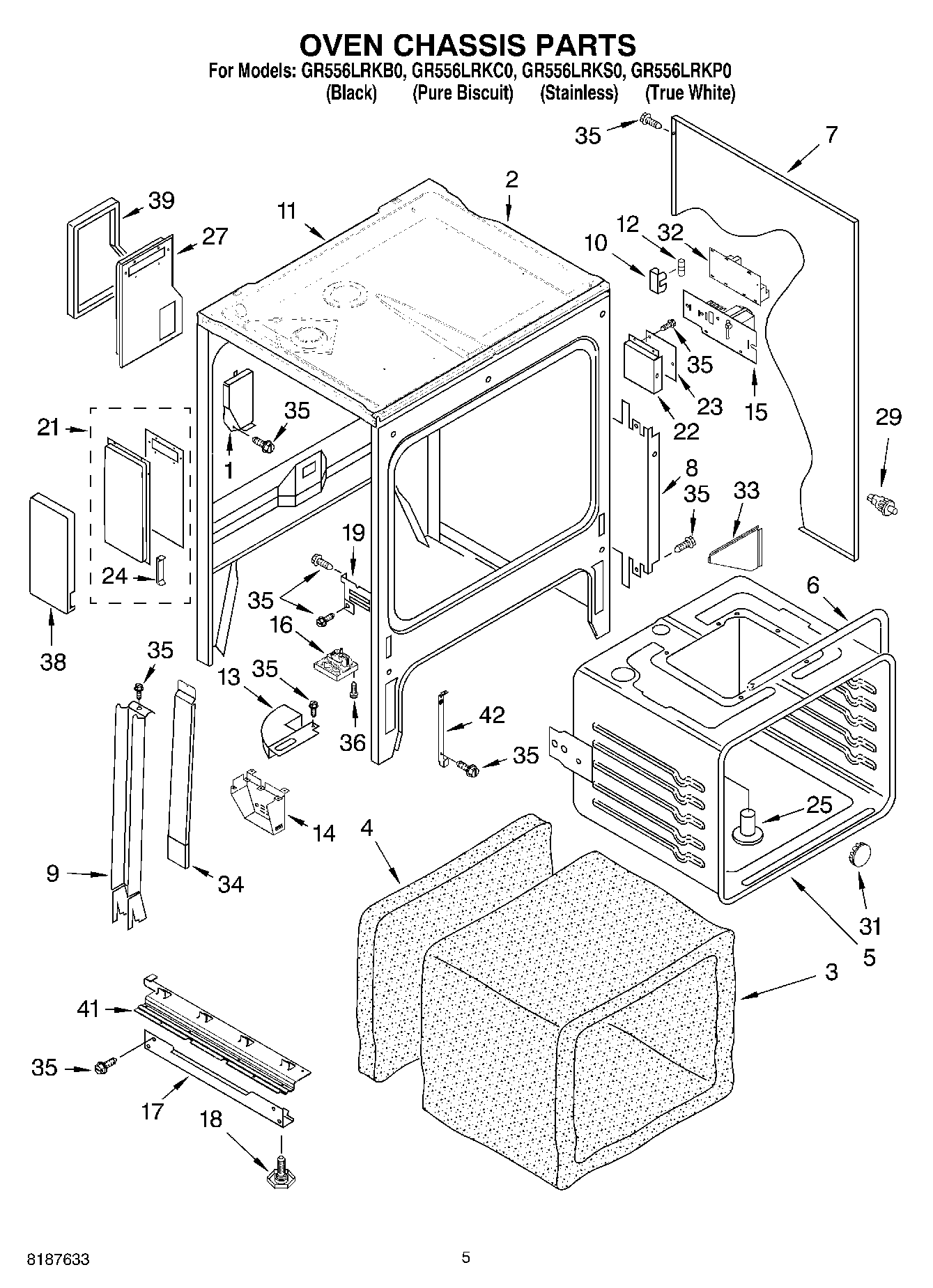

GR556LRKP0 03 – OVEN CHASSIS PARTS

Products

PositionProduct
1Vent Box, Oven
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Side, Oven L or R (Black)
7Side, Oven L or R (Biscuit)
7Side, Oven L or R (White)
8Shield, Insulation
9Duct, Side Fan
104454949 Whirlpool Oven Fuse Block
11Burner Box
12WPW10017410 Whirlpool Fuse
13Duct, Top
14Support, Fan
15MICROCPTR
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
21Side Duct
22Shield, PCB
23Bracket, PCB
24Gasket, Duct
25Vent, Tube
27Rear Duct
29Door Switch
31Button, Plug
32Microcptr
33Shield, Heat
34Fan Duct, Cover
35WP4159387 Whirlpool Compactor Screw
36Screw, (3) No.8 x 1“
38INSULATION
39INSULATION
41Support (Left Hand)
41Support (Right Hand)
42Bracket, Support
