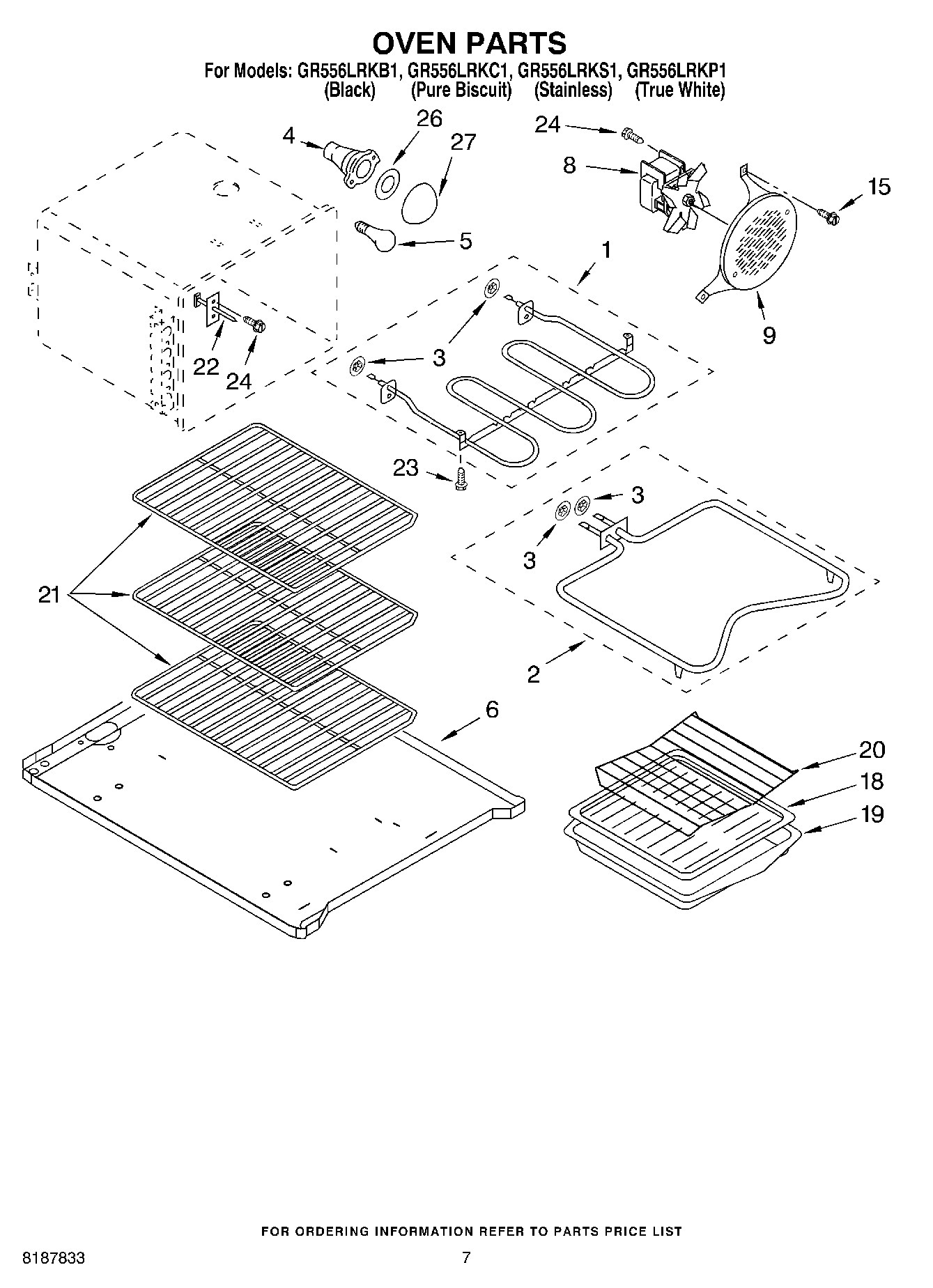

GR556LRKP1 04 – OVEN PARTS

Products

Position	Product
1	Element, Broil
2	Element, Bake
3	WP3400968 Whirlpool Nut
4	W11594027 Whirlpool Range Oven Light Socket
5	RANGE ONLY 40W 120V APPL BULB
6	Retainer, Insulation
8	Fan Assembly
9	Baffle, Convection
15	Screw
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Sensor
23	WP3400832 Whirlpool Screw
24	Screw (4) 10 x 1/2
26	WP3184533 Whirlpool Range Light Lens Gasket
27	WP9781049 Whirlpool Light Lens
