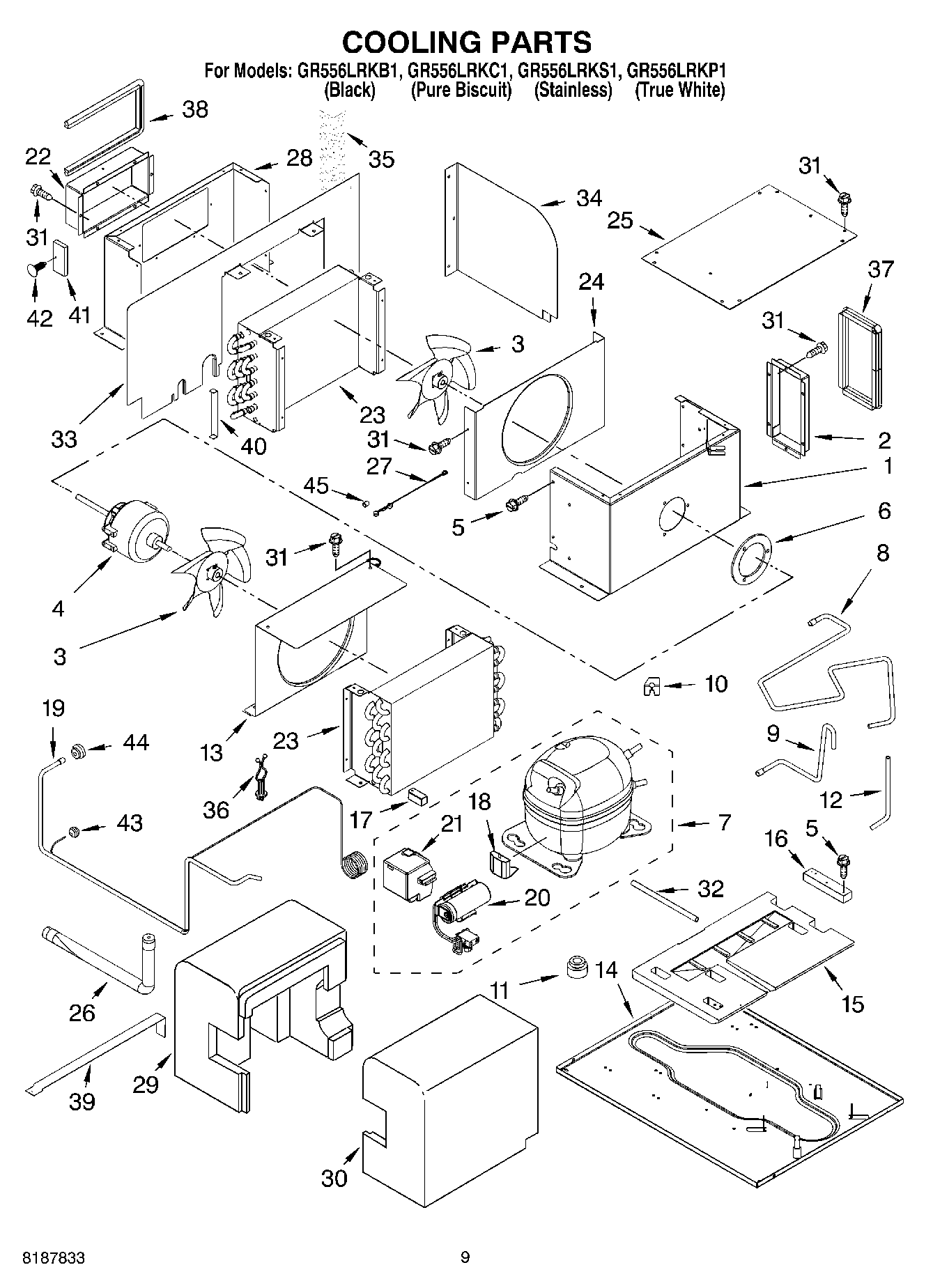

GR556LRKP1 06 – COOLING PARTS

GR556LRKP1 06 – COOLING PARTS

Written by

in

GR556LRKP1 06 – COOLING PARTS

Products

PositionProduct
1Box, Evap (Right)
2Box, Evap (R.H. Adapter)
3Blade, Fan (2)
4Motor, Fan
5Screw
6Spacer, Motor
7Compressor
8Tube, Discharge
9Tube, Discharge (W/ Dryer)
10Clip, Compressor
11Grommet
12Tube, Charge
13Housing, Fan (Condenser)
14Plate, Base
15Pan, Drain
16Spacer (2)
17Spacer, Evap
18WP2217223 Whirlpool Refrigerator Overload Relay
19Tube, Suction
20Relay & Capacitor Assembly (Includes 21)
21WP2162358 Whirlpool Refrigerator Terminal Cover
22Box, Evap (L.H. Adapter)
23Evaporator/Cond
24Housing, Fan (Evap)
25Box, Evap (Top)
26Sleeve
27Dual Cntl, Bimetal
28Box, Evap (Left)
29Insulation, Rear Cooling
30Insulation, Front Cooling Module
31Screw
328186363 Whirlpool Oven Hose
33Shield, Baffle
34Shield, Fence
35Shield, Fan
36Clip, Standoff
37Seal, Rear
38Seal, Side
39Bracket, Top
40Bracket, Hold Down
41Seal, Front Side
42Rivet, Plastic
43GROMMET
44Grommet, Sq Btm
45Sleeve, Thermal
