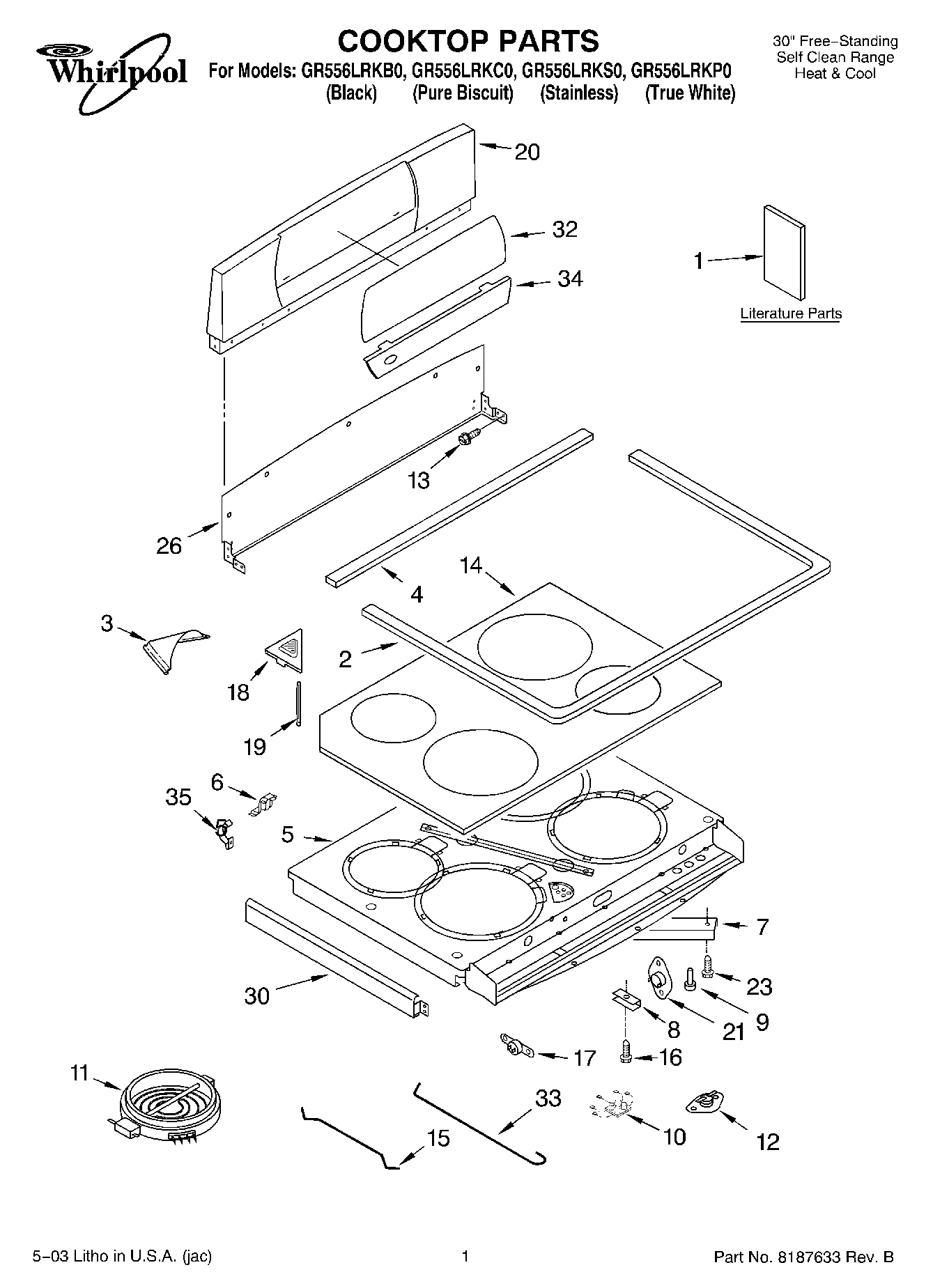

GR556LRKS0 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Quick Ref. Guide)
1	WPL LIT9752775
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
2	WP9780939 Whirlpool Cooktop Gasket
3	Deflec, Vent
4	Gasket, Cooktop (Black)
4	Gasket, Cooktop (Gray)
5	Support, Element
5	Support, Element (P Model Only)
6	Washer, Pivot
6	Bracket, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823699 Whirlpool Right Front Surface Element
11	W10823697 Whirlpool Surface Element
11	W10823692 Whirlpool Dual Radiant Element
11	W10823698 Whirlpool Surface Element Right Rear
12	WP4450934 Whirlpool Thermostat Assembly
14	Cooktop, Ceran (Black)
14	Cooktop, Ceran (Biscuit)
14	Cooktop, Ceran (True White)
15	Rod, Large Ceran Element
16	Screw, 10-16 x 1
17	WP4159387 Whirlpool Compactor Screw
17	Thermostat SPST (205)
18	Cover, Vent (Gray)
18	Cover, Vent (Black)
19	Gasket, Vent Cover
19	Gasket, Vent Cover (Gray)
20	Backsplash (Black)
20	Backsplash (Biscuit)
20	Backsplash (Stainless)
20	Backsplash (White)
21	WP9759944 Whirlpool Thermostat
23	Screw (4) 10 x 1/2
26	Cover, Backsplash
30	Trim, Cooktop (Right Hand) (Black)
30	Trim, Cooktop (Rig
30	WPL 9755060PB
30	WPL 9755059PW
30	WPL 9755059SS
30	WPL 9755060SS
30	WPL 9755060PW
30	WPL 9755060PC
32	WPL 9755035PB
32	WPL 9755035PW
32	WPL 9755035PC
33	Rod, Small Ceran Element
34	WPL 9755455CW
34	WPL 9755455CC
34	WPL 9755455CB
35	8528351 Whirlpool Clip
