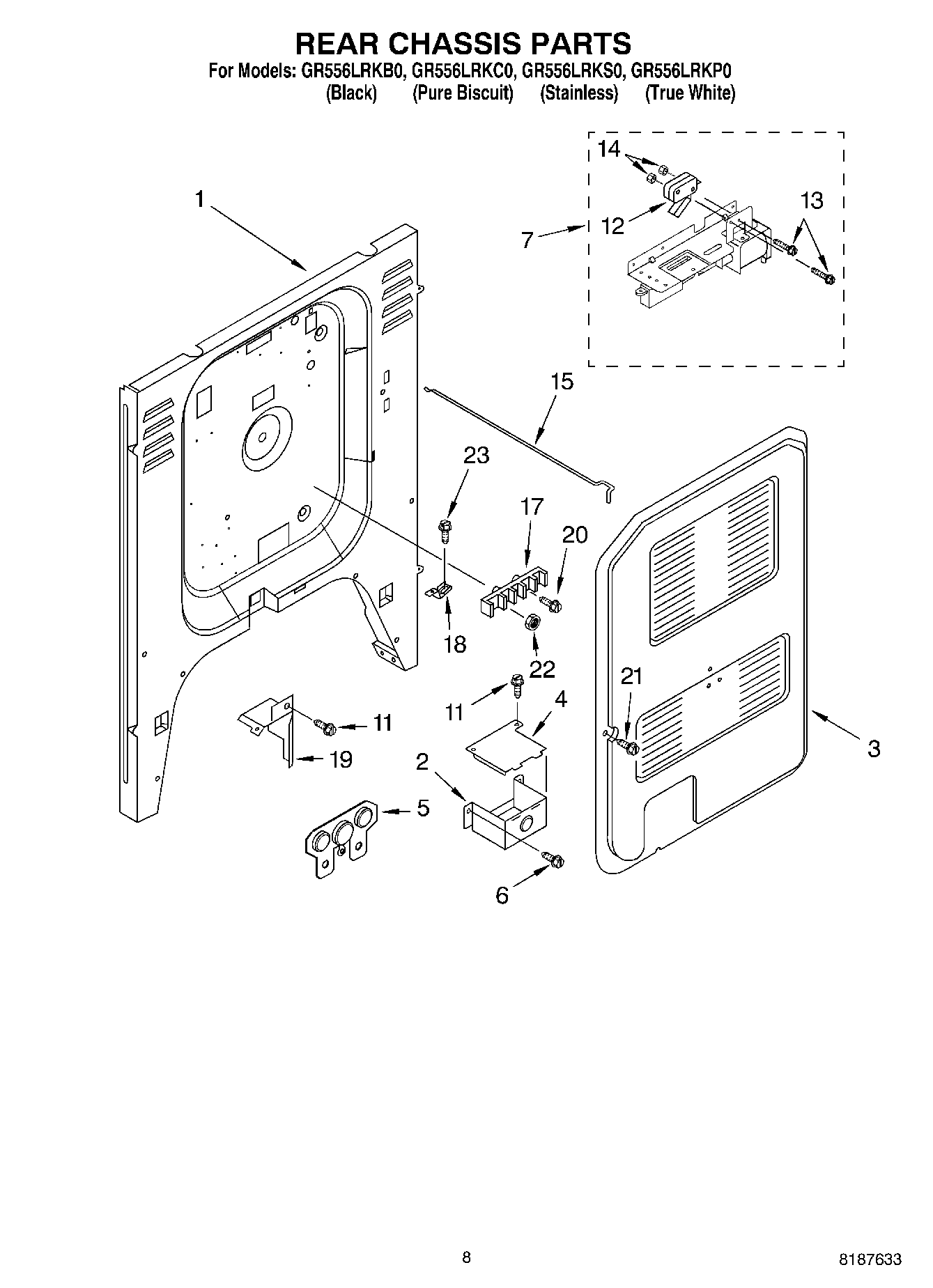

GR556LRKS0 05 – REAR CHASSIS PARTS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
4	Cover, Terminal Box
5	Suppressor, Trans
6	Screw (4) 10 x 1/2
7	Oven Lock Assembly
11	WP4159387 Whirlpool Compactor Screw
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
18	Clip, Ground Wire
19	Vent Back, Oven
20	WP3400016 Whirlpool Screw Assembly
21	Screw (4) 10 x 3/8
22	WP112432 Whirlpool Nut Assembly
23	SCREW
