GR556LRKT0 04 – OVEN

GR556LRKT0 04 – OVEN

Written by

in

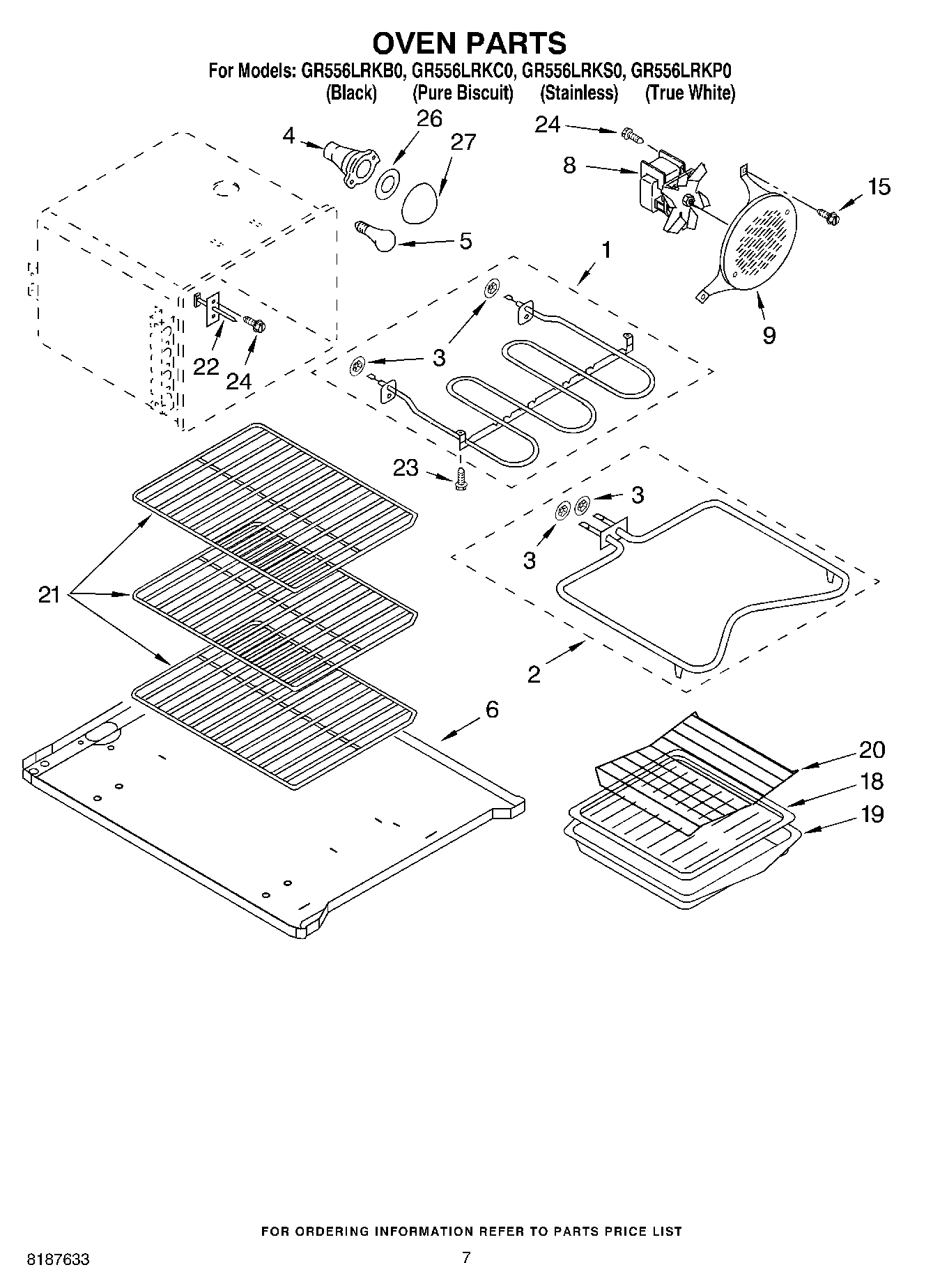

GR556LRKT0 04 – OVEN

Products

PositionProduct
1Element, Broil
2Element, Bake
3WP3400968 Whirlpool Nut
4W11594027 Whirlpool Range Oven Light Socket
5RANGE ONLY 40W 120V APPL BULB
6Retainer, Insulation
8Fan Assembly
9Baffle, Convection
15Screw
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Roasting
21Rack, Standard (3)
22Sensor
23WP3400832 Whirlpool Screw
24Screw (4) 10 x 1/2
26WP3184533 Whirlpool Range Light Lens Gasket
27WP9781049 Whirlpool Light Lens
