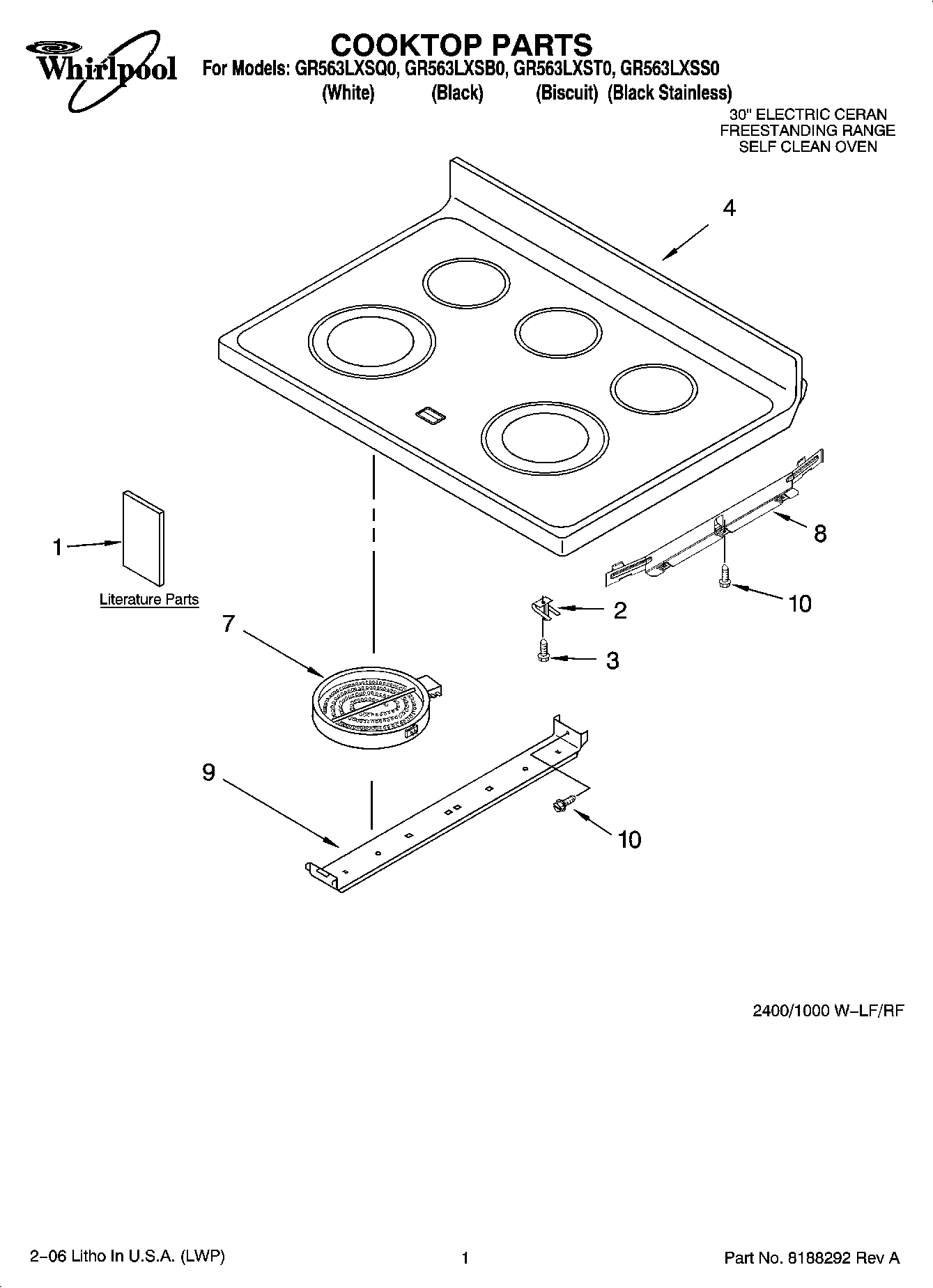

GR563LXSB0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions Template, Anti-Tip
1Owners Manual
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1Tech Sheet
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Biscuit)
4Cooktop (White)
4Cooktop (Black)
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823692 Whirlpool Dual Radiant Element
7WP8523700 Whirlpool Surface Element
8WPL 8524132
9Bracket, Element ((1))
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
