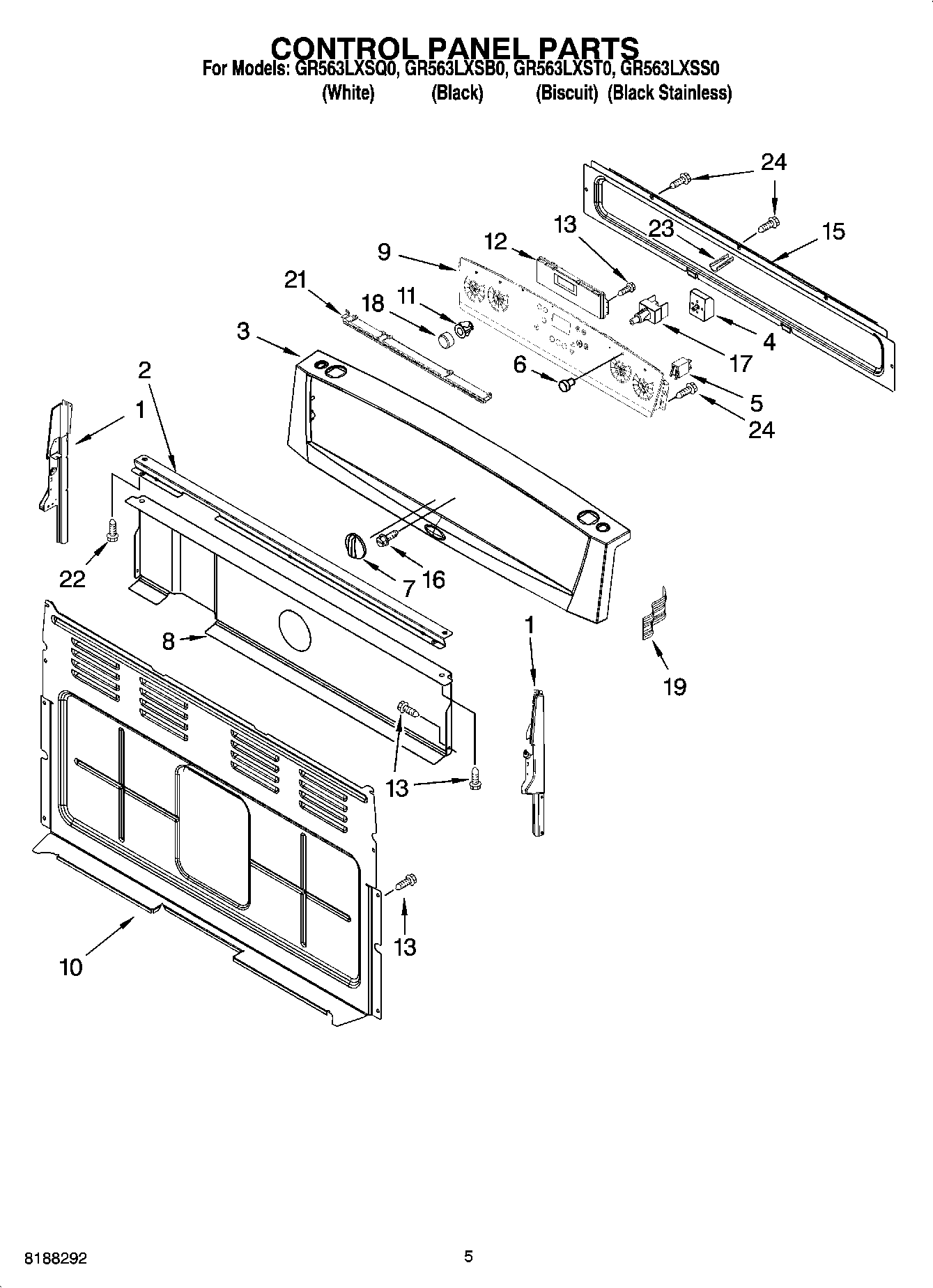

GR563LXSQ0 04 – CONTROL PANEL PARTSadmin2025-04-26T10:59:47+00:00GR563LXSQ0 04 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11230612 Whirlpool Panel End Cap |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | W11219664 Whirlpool Endcap Panel |
| 1 | W11219665 Whirlpool Panel Endcap |
| 1 | W11219365 Whirlpool Panel Endcap |
| 2 | Bracket, Console |
| 3 | Panel, Backguard (Unvl Slvr for SS) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (White) |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 4 | WP9758060 Whirlpool Oven Infinite Switch |
| 5 | WP8523265 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | Knob, Infinite (4) (Biscuit) |
| 7 | Knob, Infinite (4) (White) |
| 7 | W10851285 Whirlpool Knob |
| 8 | Shield, Heat |
| 9 | Glss Swtch Membrne (Biscuit) |
| 9 | Glss Swtch Membrne (Black) |
| 9 | Glss Swtch Membrne (White) |
| 10 | Cover, Rear |
| 11 | Bezel, Keep Warm (Biscuit) |
| 11 | Bezel, Keep Warm (Black) |
| 11 | Bezel, Keep Warm (White) |
| 12 | Control, Range |
| 15 | Cover, Rear (Console) |
| 16 | WP3400882 Whirlpool Screw |
| 17 | WP8272820 Whirlpool PB Switch |
| 18 | 9758491 Whirlpool Oven Push Button |
| 18 | 9757492 Whirlpool Oven Push Button |
| 18 | Button (Biscuit) |
| 19 | Cnntr, Cable Flex |
| 21 | Re |
| 22 | WPL 8281194 |
| 22 | 3196166 Whirlpool Screw |
| 22 | WP3400832 Whirlpool Screw |
| 23 | WPL 9757490 |
| 24 | SCREW |
