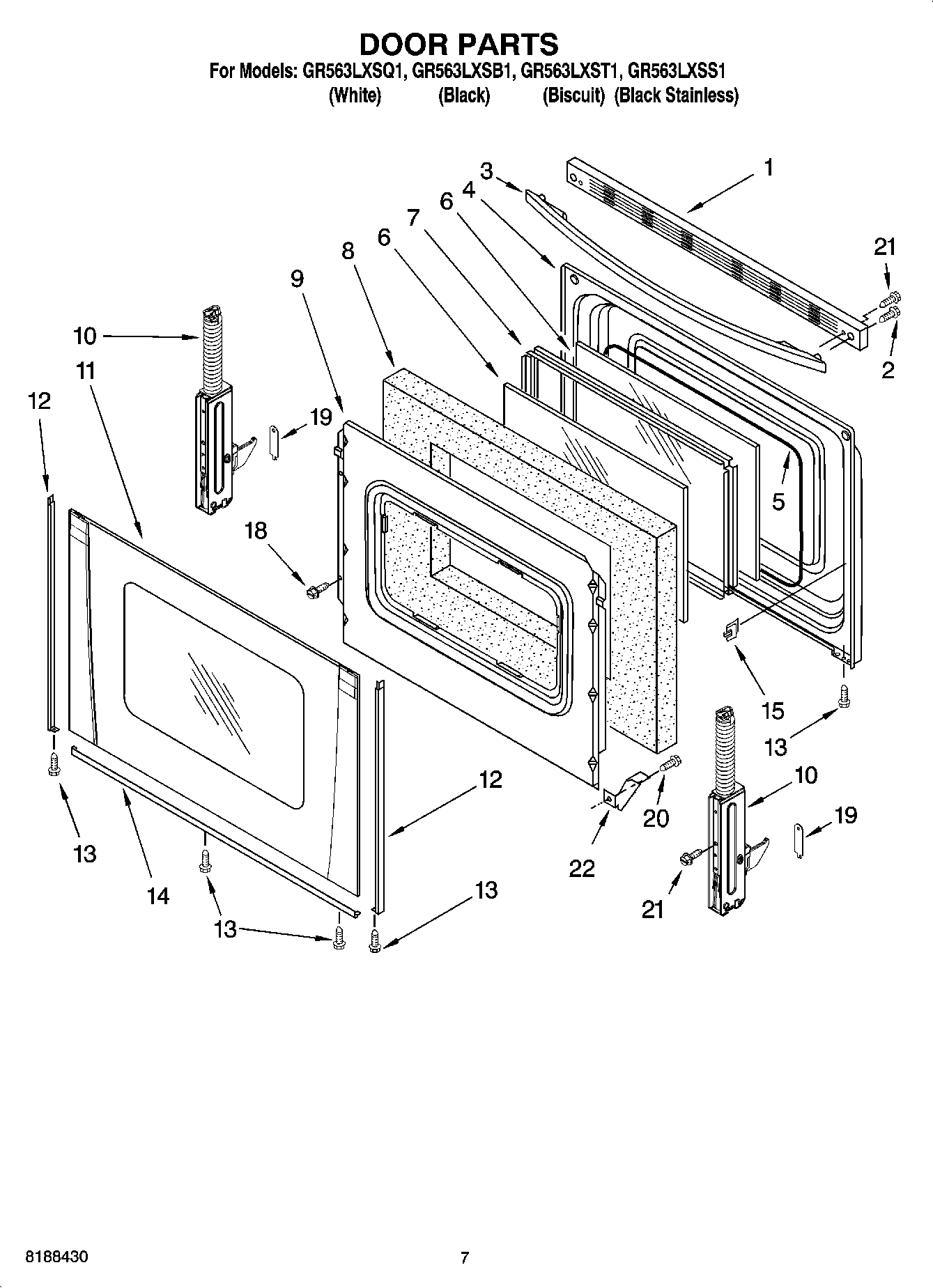

GR563LXSQ1 05 – DOOR PARTS, OPTIONAL PARTS

GR563LXSQ1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GR563LXSQ1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	3184020 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	WPL 9763631
	WPL ARI149573A
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	WPL ARI149574A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Grease
	W10465644 Whirlpool Wire Harness
	WPL 9762815
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WPL ARI149575A
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	WPL W10044070
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL W10017460
	WPL ARI149576A
	WPL ARI149577A
	W11447673 Whirlpool Range Tip Anchor
	WPL ARI149578A
	WPL ARI149579A
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (White)
1	Trim, Top (Biscuit)
1	Trim, Top (Stainless Steel)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	Handle, Door (White)
3	Handle, Door (Stainless Steel)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
11	WPW10330077 Whirlpool Door Glass
12	WP2179234 Whirlpool Refrigerator Pan Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
15	Clip, Glass (4)
18	WPW10031790 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
20	WP3196175 Whirlpool Screw
21	W10777162 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
