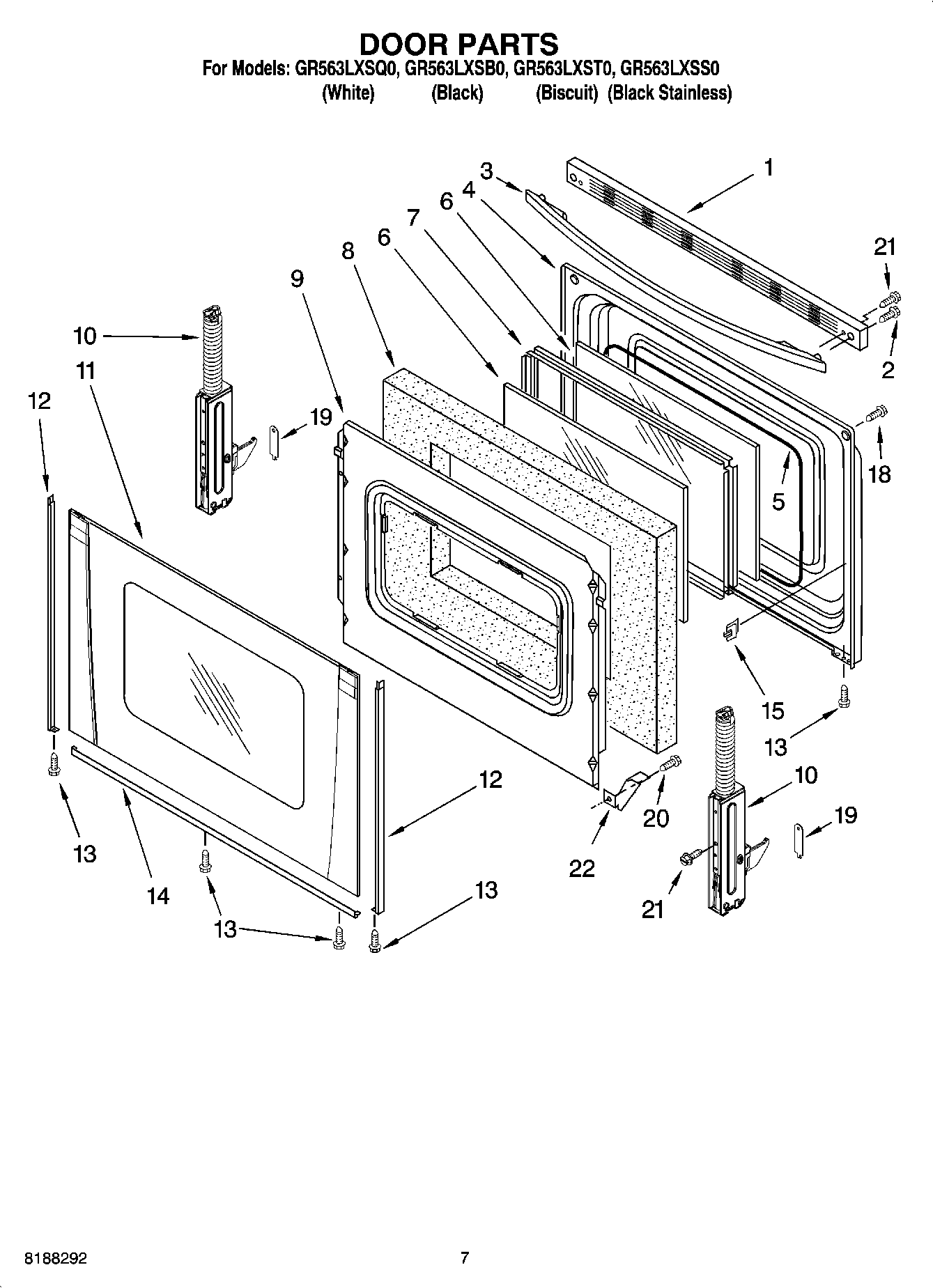

GR563LXSS0 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
GR563LXSS0 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI149598A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL ARI149597A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
Clip, Ground Wire
3184020 Whirlpool Oven Wire
Grease
WPL ARI149596A
WPL ARI149595A
WPL ARI149594A
WPL ARI149593A
WPL ARI149592A
WPL ARI149591A
WPL 9763631
WPL 9763105
WPL 9762963
WPL 9762815
W10465644 Whirlpool Wire Harness
WP3196154 Whirlpool Screw Assembly
3400964 Whirlpool Oven Clip
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
W11447673 Whirlpool Range Tip Anchor
511873 Whirlpool Refrigerator Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
350930 Whirlpool White Spray Paint
1
Trim, Top (White)
1
Trim, Top (Biscuit)
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (Stainless Steel)
2
WP3196164 Whirlpool Screw
3
Handle, Door (White)
3
Handle, Door (Black)
3
Handle, Door (Biscuit)
3
Handle, Door (Stainless Steel)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Biscuit)
11
WPW10330077 Whirlpool Door Glass
11
WPW10118455 Whirlpool Door Glass Assembly
12
WP8523166 Whirlpool Door Trim
12
WP8523173 Whirlpool Door Trim
12
WP8523172 Whirlpool Left Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP2179234 Whirlpool Refrigerator Pan Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523177 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
18
WP179051 Whirlpool Screw
19
9761517 Whirlpool Oven Clip Assembly
20
WP3196175 Whirlpool Screw
21
WPW10031790 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
