GR563LXSS1 02 – DRAWER & BROILER PARTS

GR563LXSS1 02 – DRAWER & BROILER PARTS

Written by

in

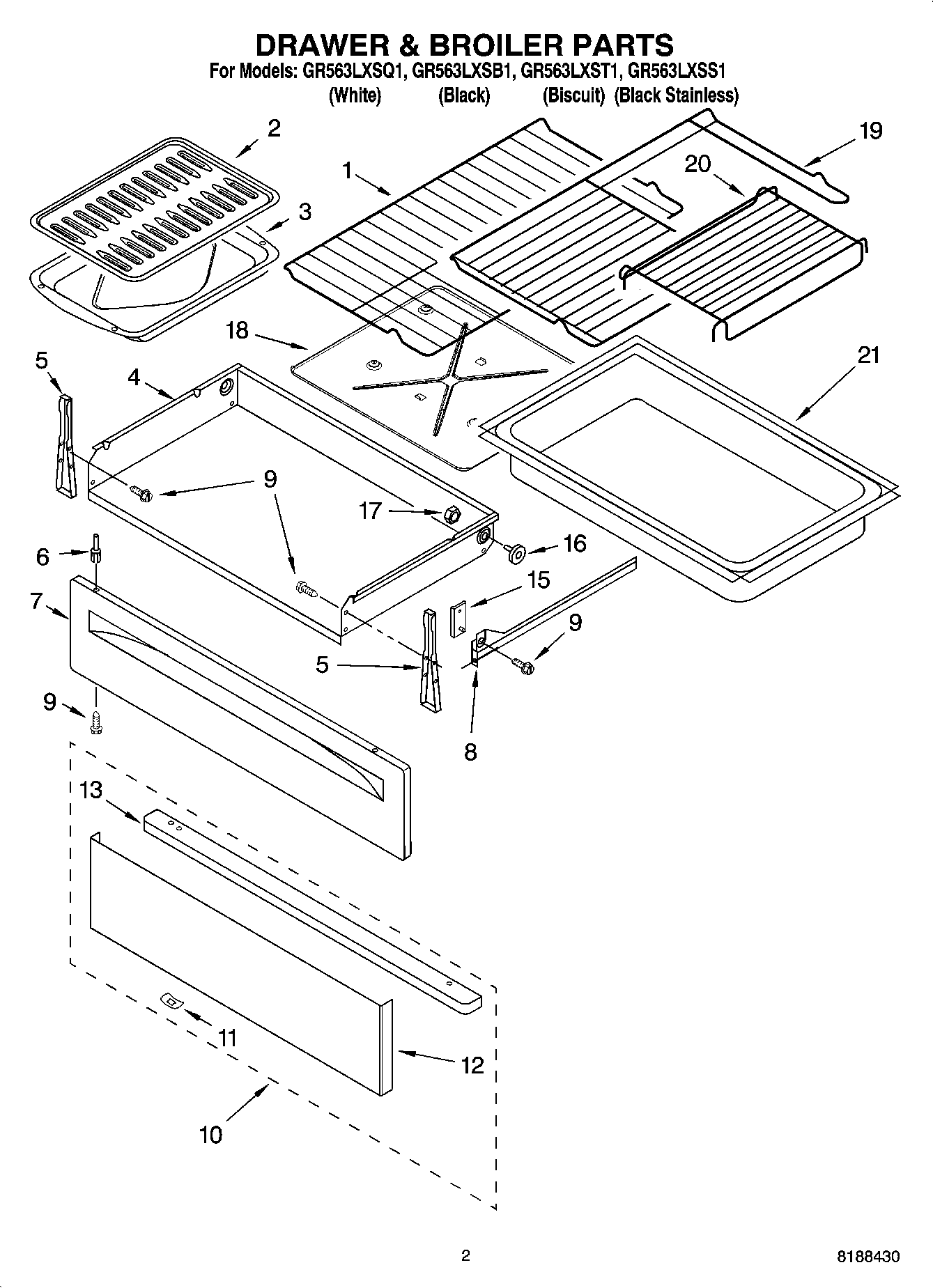

GR563LXSS1 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8Rail, Drawer (Left Hand)
8Rail, Drawer (Right Hand)
9WP3400832 Whirlpool Screw
10For Stainless Model Only
11WP9781235 Whirlpool Clip
12Panel, Stainless
13Handle
15Spacer, Glide
16814229 Whirlpool Primary Roller
17WP487939 Whirlpool Refrigerator Nut
18Heat Shield, Drawer
19WP8274021 Whirlpool Oven Rack
20WP8274022 Whirlpool Oven Rack
21Liner, Drawer
