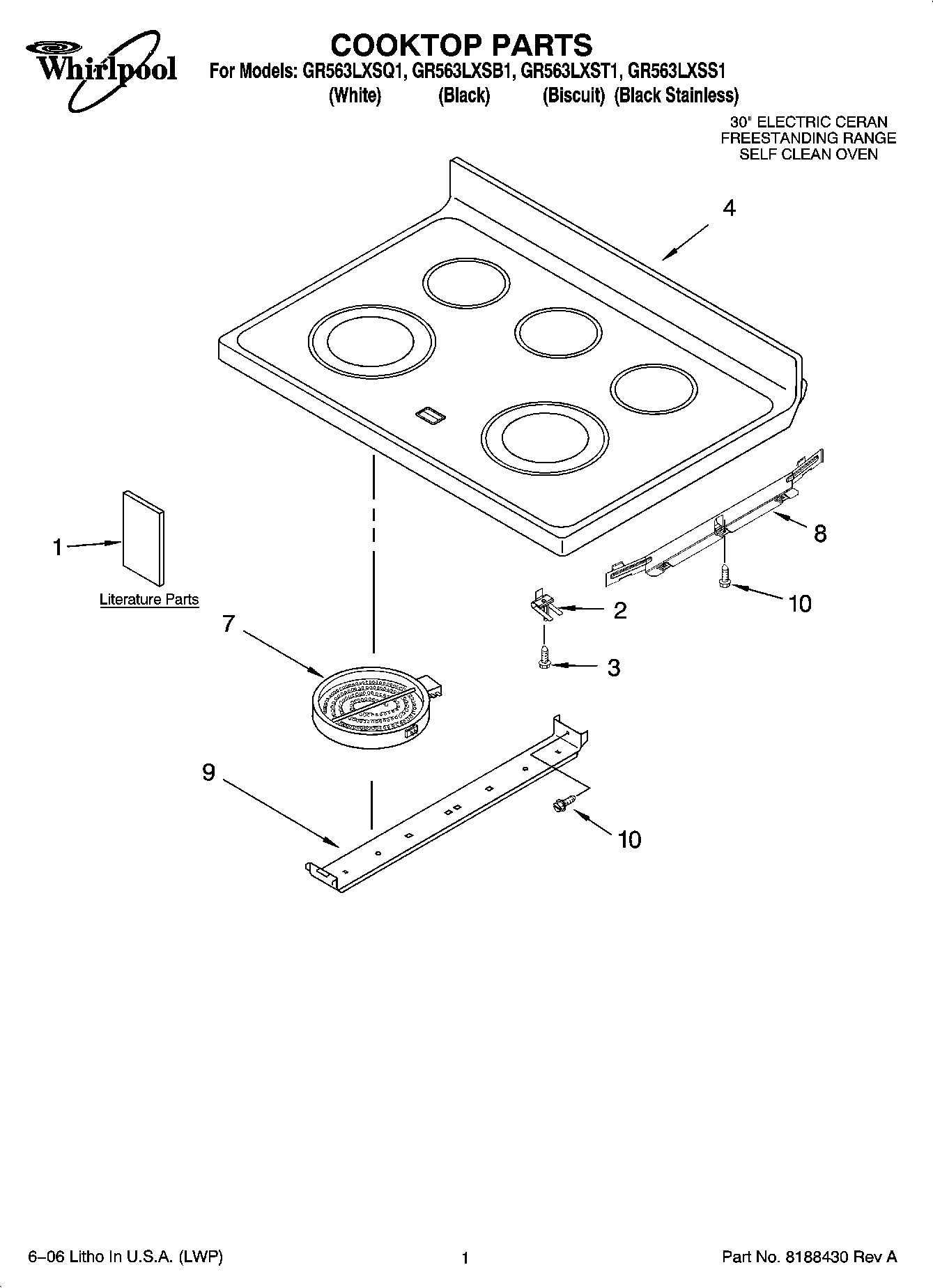

GR563LXST1 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions Template, Anti-Tip
1	Owners Manual
1	Tech Sheet
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (Black)
4	Cooktop (White)
4	Cooktop (Biscuit)
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	WP9762851 Whirlpool Surface Element
7	W10823692 Whirlpool Dual Radiant Element
8	WPL 8524132
9	Bracket, Element ((2))
9	Bracket, Element ((1))
10	WP3196557 Whirlpool Screw
