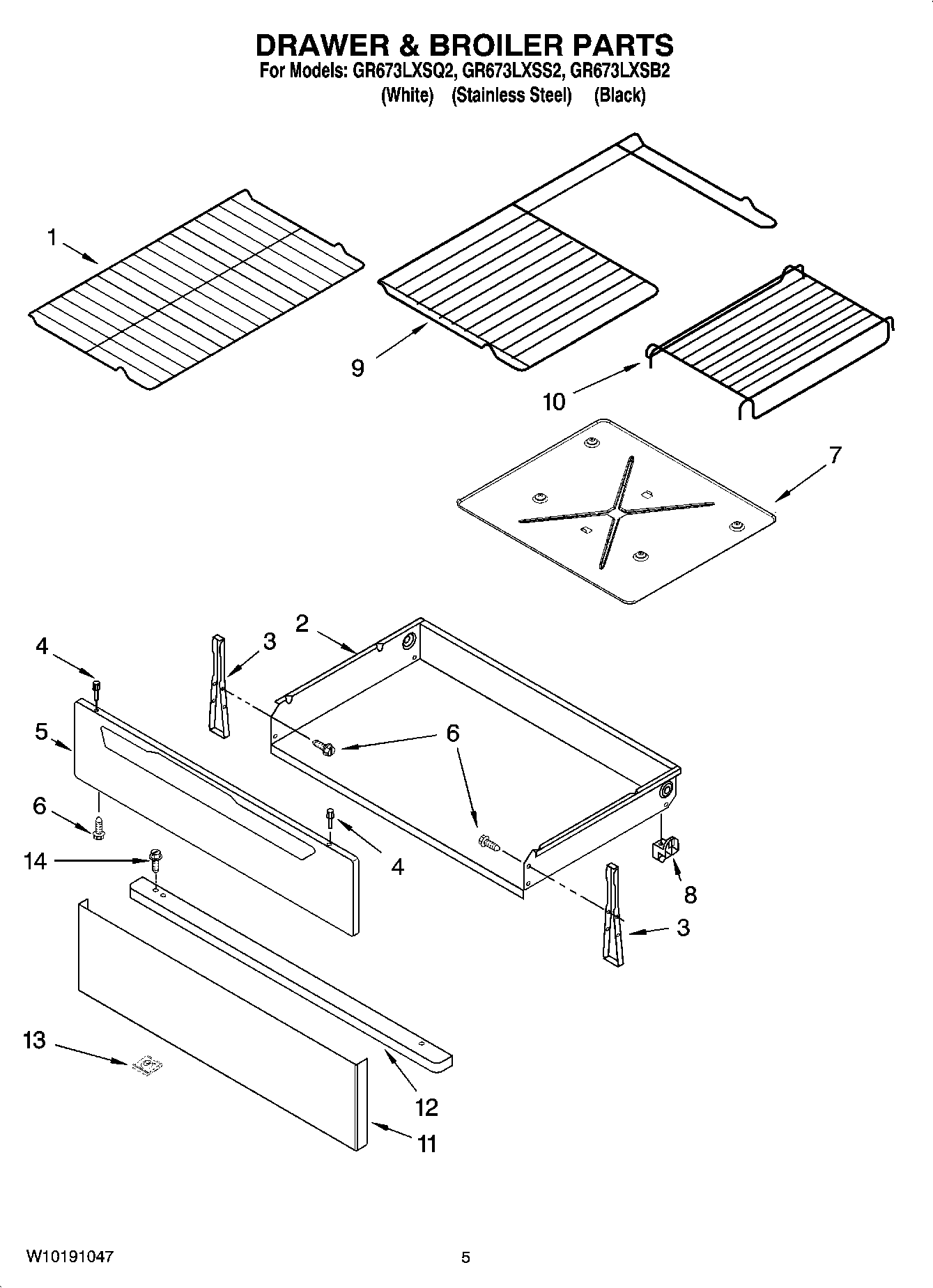

GR673LXSQ2 04 – DRAWER & BROILER PARTS

GR673LXSQ2 04 – DRAWER & BROILER PARTS

Written by

in

GR673LXSQ2 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
4WP3196814 Whirlpool Rivet
5W11230488 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
6WP3400832 Whirlpool Screw
7Heat Shield, Drawer
8WP8053334 Whirlpool Drawer Glide
9WP8274021 Whirlpool Oven Rack
10WP8274022 Whirlpool Oven Rack
11Panel, Stainless
12Handle, Drawer
13WP9781235 Whirlpool Clip
14WPW10031790 Whirlpool Screw
