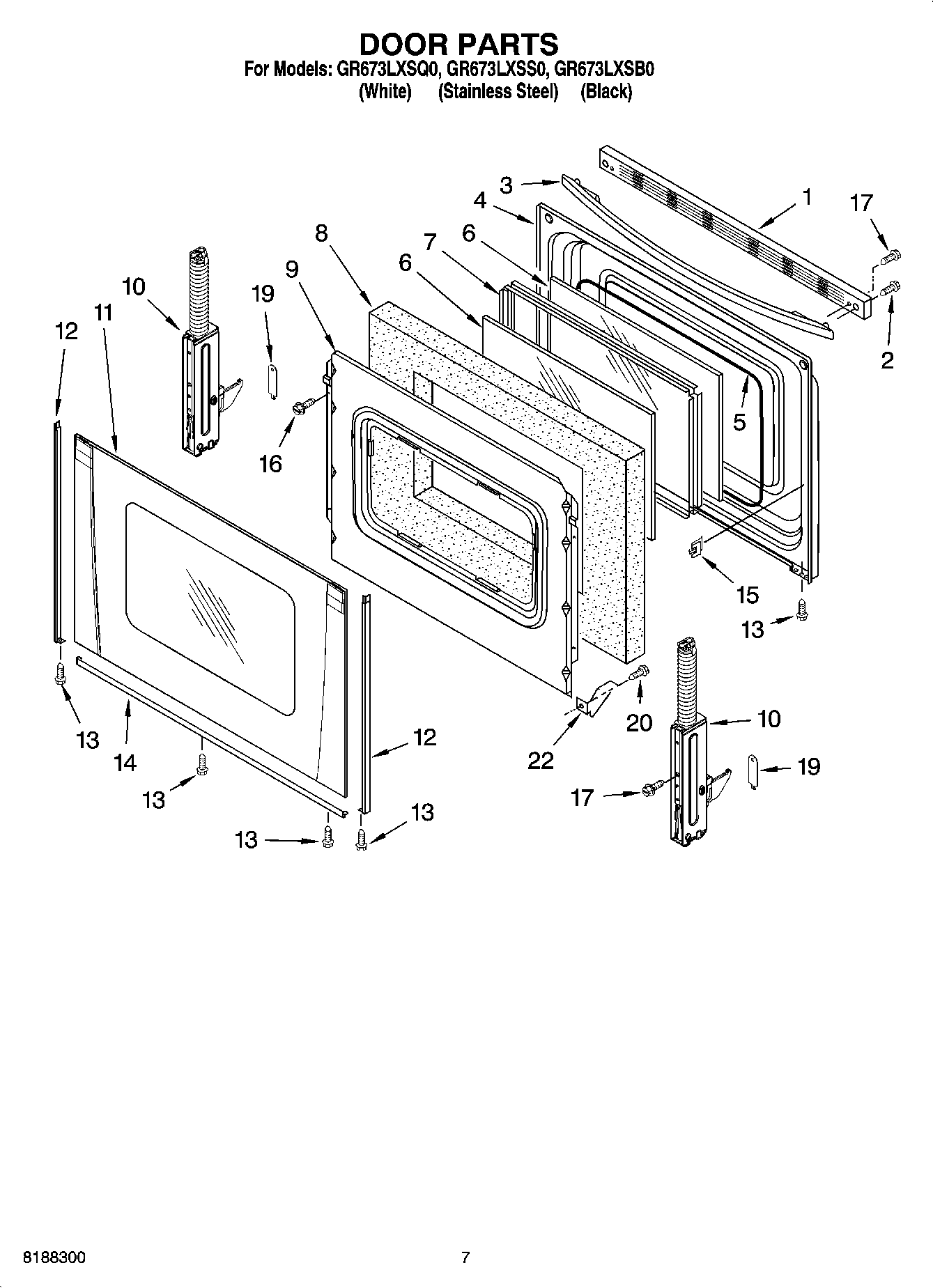

GR673LXSS0 05 – DOOR PARTS, OPTIONAL PARTS

GR673LXSS0 05 – DOOR PARTS, OPTIONAL PARTS

GR673LXSS0 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI149719A
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
WPL ARI149711A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP3196154 Whirlpool Screw Assembly
WPL 9756550
WPL 9758193
WPL ARI149718A
WPL ARI149717A
WPL ARI149716A
WPL ARI149715A
WPL ARI149714A
WPL ARI149713A
WPL ARI149712A
WPL 9762964
WPL 9763105
WPL 9762815
Harness, Wire (Main)
242831 Whirlpool Oven Wire
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
W11447673 Whirlpool Range Tip Anchor
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
Clip, Ground Wire
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (White)
1Trim, Top (Stainless Steel)
2WP3196164 Whirlpool Screw
3Handle, Door (Stainless Steel)
3Handle, Door (White)
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10330077 Whirlpool Door Glass
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP2179234 Whirlpool Refrigerator Pan Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
16WPW10031790 Whirlpool Screw
17W10777162 Whirlpool Screw
199761517 Whirlpool Oven Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
