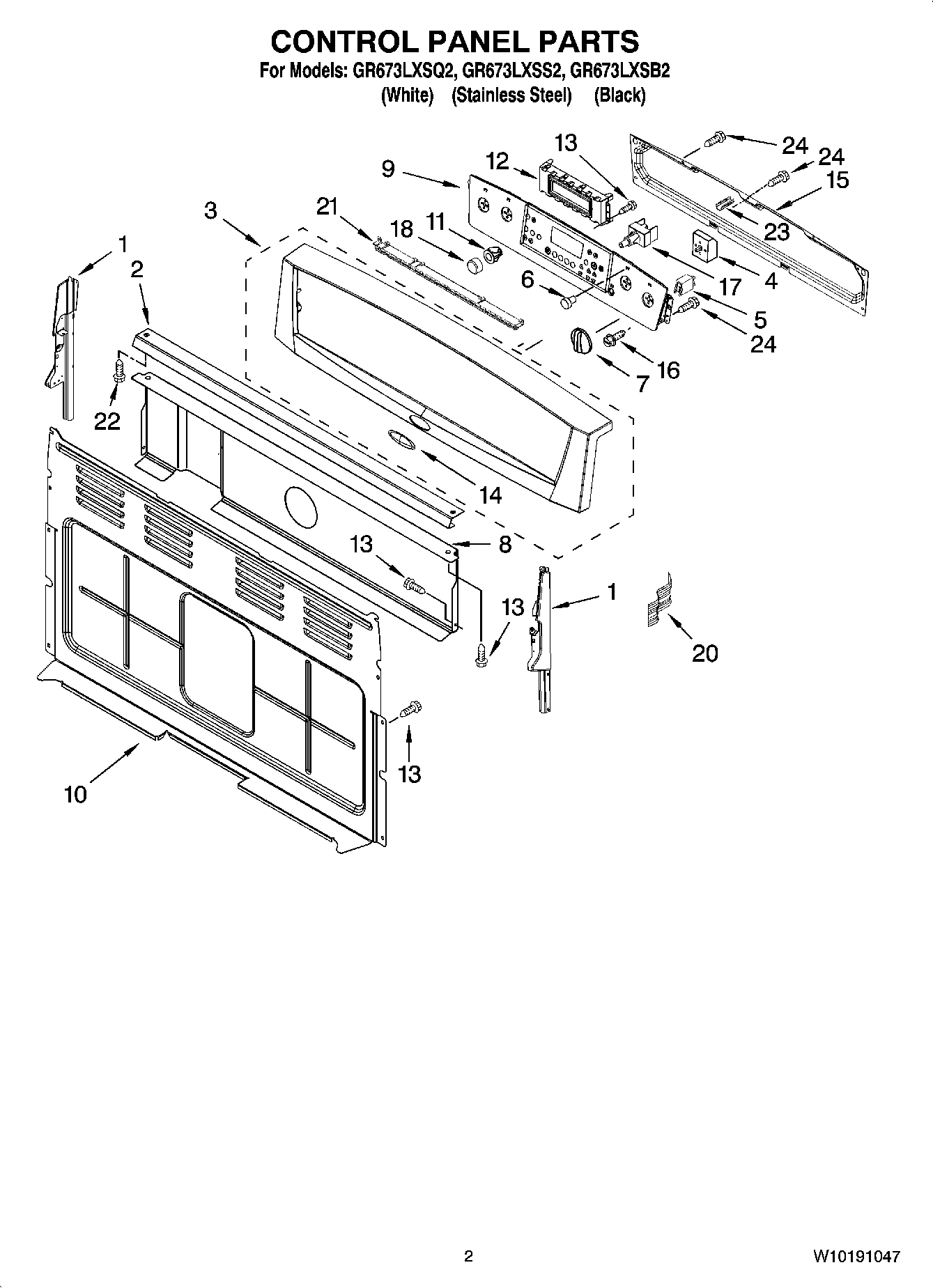

GR673LXSS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
2	Bracket, Console
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
3	Panel, Backguard (Unvl Slvr for SS)
4	WP9758060 Whirlpool Oven Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (White)
7	W10851285 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	Glss Swtch Membrn (White)
9	Glss Swtch Membrn (Black)
10	Cover, Rear
11	Bezel, Keep Warm (White)
11	Bezel, Keep Warm (Black)
12	Control, Range
14	9757613 Whirlpool Oven Nameplate
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
17	WP8272820 Whirlpool PB Switch
18	9758491 Whirlpool Oven Push Button
18	9757492 Whirlpool Oven Push Button
20	W11209404 Whirlpool Wire Harness
21	Re
22	3196166 Whirlpool Screw
22	WP3400832 Whirlpool Screw
23	WPL 9757490
24	SCREW
