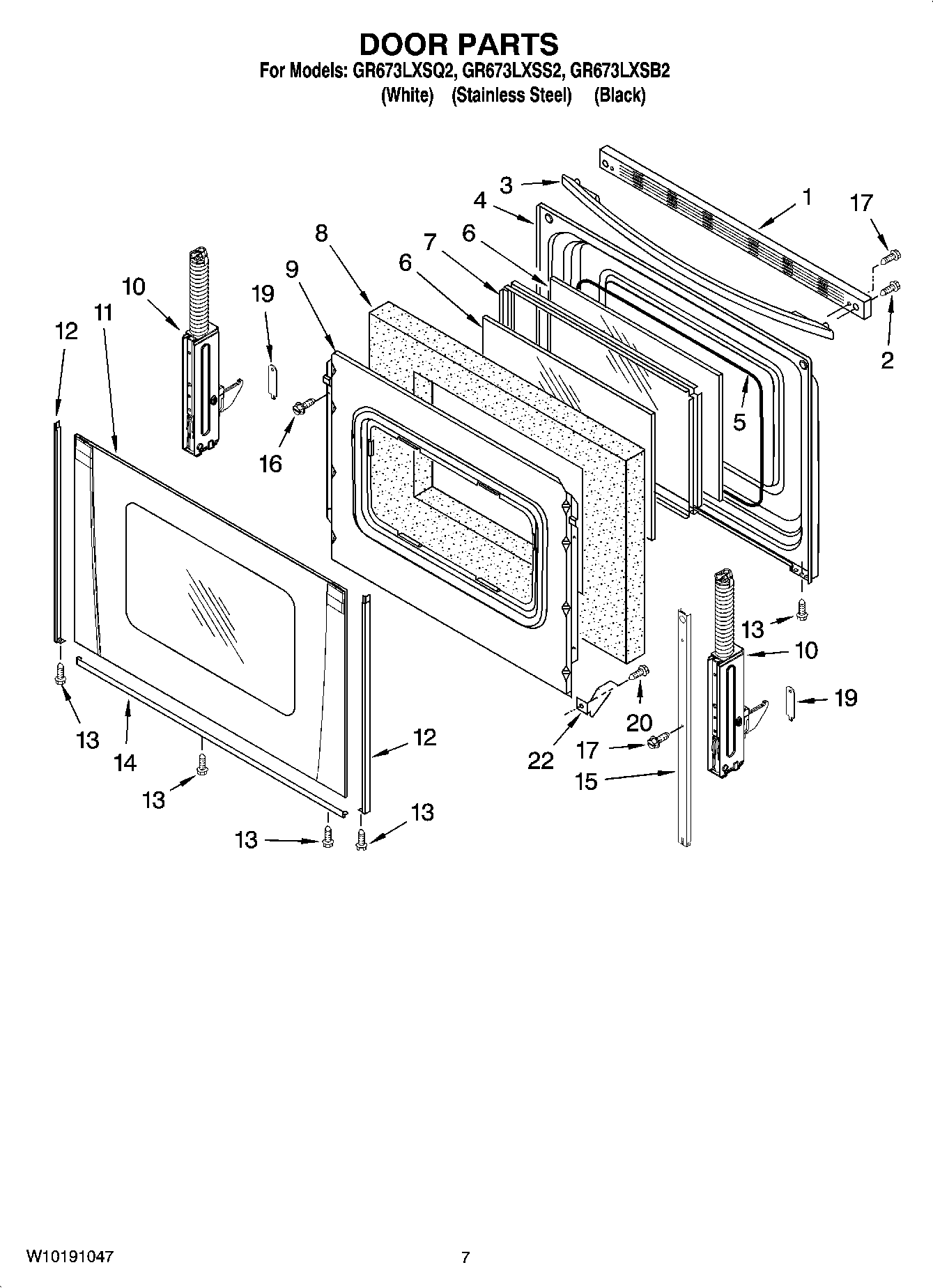

GR673LXSS2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

GR673LXSS2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GR673LXSS2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI149738A
Grease
8212471 Whirlpool Oven Paint
WPL W10111781
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP3196154 Whirlpool Screw Assembly
WPL 9756550
WPL ARI149737A
WPL ARI149736A
WPL ARI149735A
WPL ARI149734A
WPL ARI149733A
WPL ARI149732A
WPL W10111778
WPL W10111780
Harness, Wire (Main)
WPL 9758193
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
W11447673 Whirlpool Range Tip Anchor
Clip, Ground Wire
72017 Whirlpool Appliance Touch-Up Paint White
4392899 Whirlpool Biscuit Touch-Up Paint
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (White)
1Trim, Top (Stainless Steel)
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Stainless Steel)
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10330077 Whirlpool Door Glass
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP2179234 Whirlpool Refrigerator Pan Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15W11502236 Whirlpool Door Trim
16WPW10031790 Whirlpool Screw
17W10777162 Whirlpool Screw
199761517 Whirlpool Oven Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
