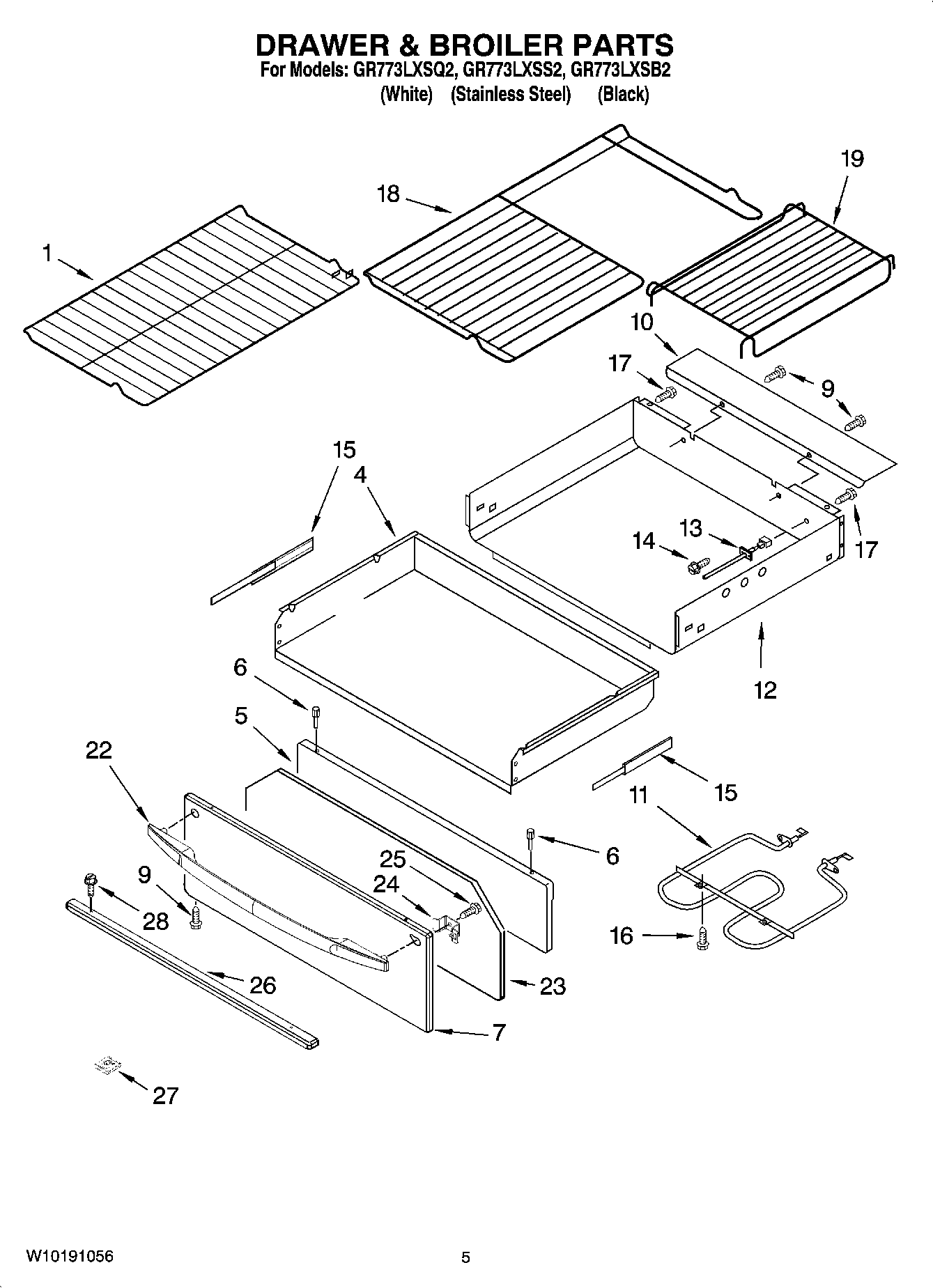

GR773LXSS2 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Warming
5	Panel, Inner
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	Panel, Drawer Front (Black)
7	Panel, Drawer Front (White)
7	Panel, Drawer Front (Stainless Steel)
9	WP3400832 Whirlpool Screw
10	Shield, Element
11	Element, Warming
12	Enclosure, Drawer
13	WP8274149 Whirlpool Sensor Assembly
14	WPY706189 Whirlpool Stove Screw
15	Slide, Drawer (Right Hand)
15	Slide, Drawer (Left Hand)
16	WP3196174 Whirlpool Screw
17	SCREW
18	WP8274021 Whirlpool Oven Rack
19	WP8274022 Whirlpool Oven Rack
22	Handle, Door (White)
22	Handle, Door (Black)
22	Handle, Door (Stainless Steel)
23	Insulation
24	Brkt – Handle
25	W10777162 Whirlpool Screw
26	Trim, Drawer SS Model Only
27	WP9781235 Whirlpool Clip
28	WPW10031790 Whirlpool Screw
