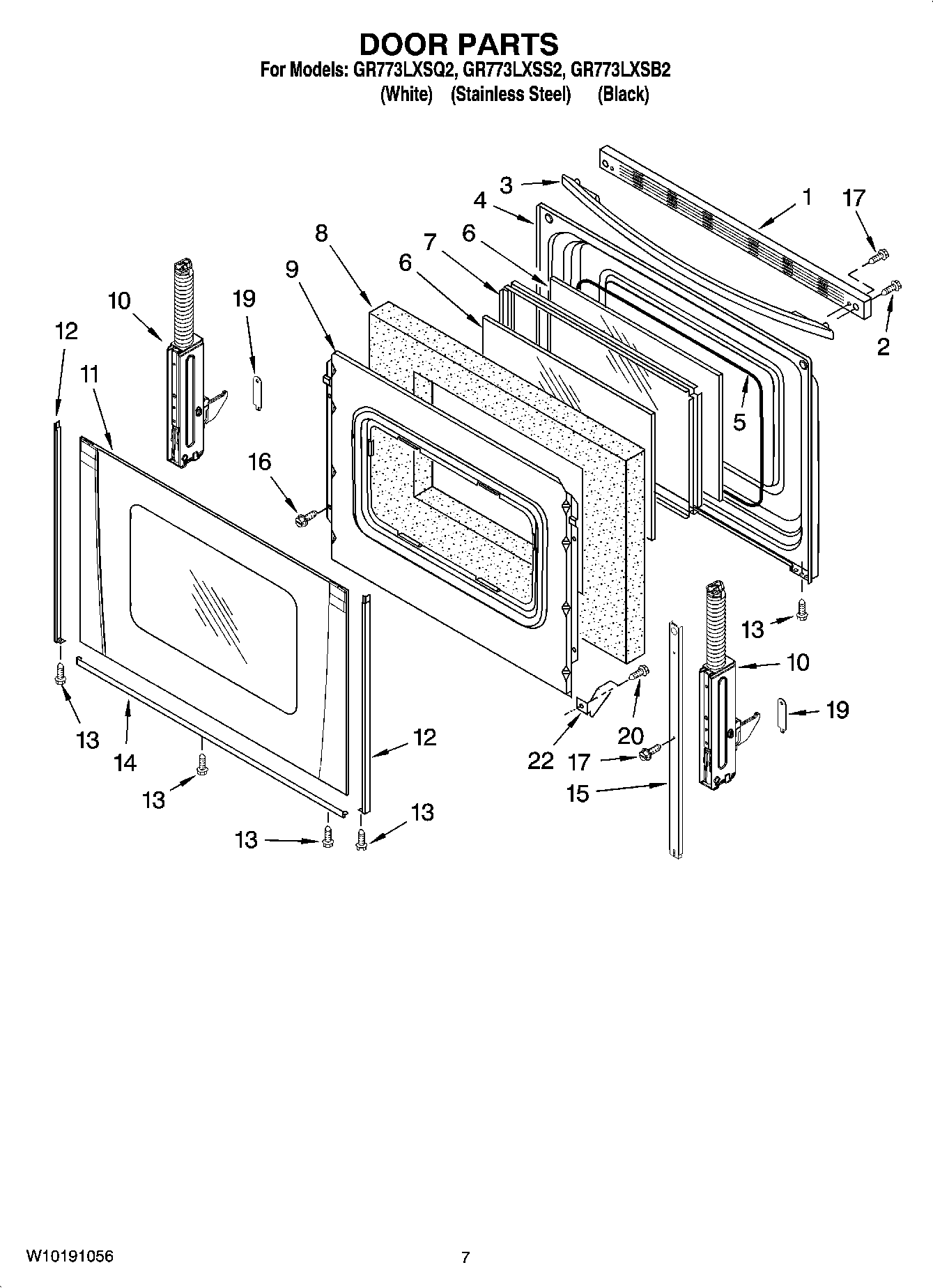

GR773LXSS2 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
GR773LXSS2 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI149816A
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
WPL W10111781
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL 9756550
WPL 8273908
WPL ARI149815A
WPL ARI149814A
WPL ARI149813A
WPL ARI149812A
WPL ARI149811A
WPL ARI149810A
WPL 9762964
WPL W10111778
WPL W10111780
WPL 9759000
WPL 9758192
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W11447673 Whirlpool Range Tip Anchor
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPW10208653 Whirlpool Insulation
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (White)
1
Trim, Top (Stainless Steel)
2
WP3196164 Whirlpool Screw
3
Handle, Door (White)
3
Handle, Door (Black)
3
Handle, Door (Stainless Steel)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10330077 Whirlpool Door Glass
12
WP8523172 Whirlpool Left Door Trim
12
WP2179234 Whirlpool Refrigerator Pan Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
W11502236 Whirlpool Door Trim
16
WPW10031790 Whirlpool Screw
17
W10777162 Whirlpool Screw
19
9761517 Whirlpool Oven Clip Assembly
20
WP3196175 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
