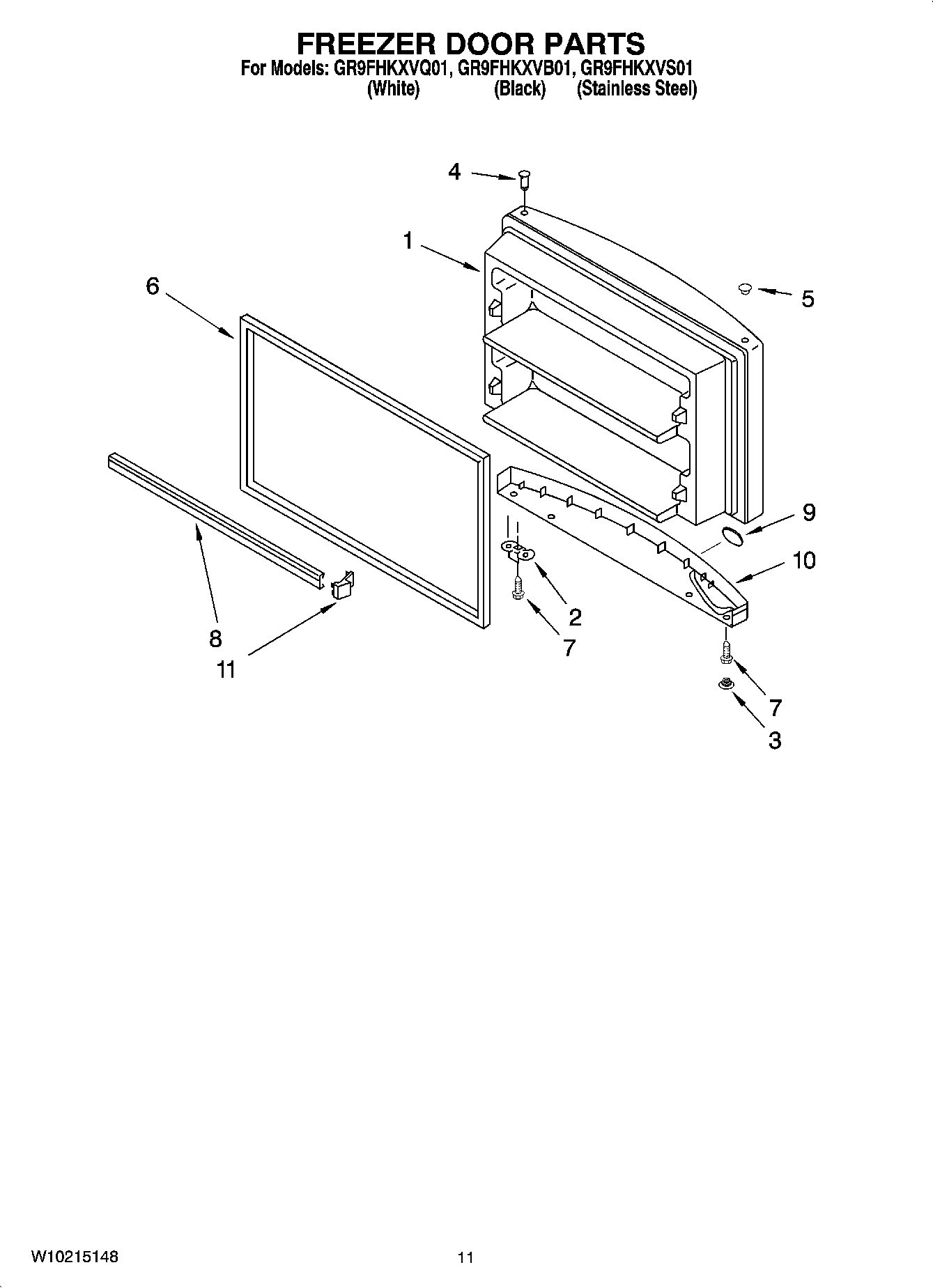

GR9FHKXVB01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

GR9FHKXVB01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

GR9FHKXVB01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI68589A2
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI68590A1
WPL ARI68586A3
WPL ARI68587A7
WPL ARI68588A4
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
511873 Whirlpool Refrigerator Paint
876370 Whirlpool Refrigerator Insulation
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (Stainless)
1Freezer Door (Includes Illus. 6 & 7) (White)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (BLACK)
3HOLE PLUG, ENDCAP (WHITE)
4WP2183003 Whirlpool Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
62177304 Whirlpool Refrigerator FIP Gasket
62159327 Whirlpool Refrigerator Door Gasket
7WP681249 Whirlpool Screw Assembly
8Trim-Door (2)
9Nameplate
10Endcap, Handle (White)
10Endcap, Handle (Black)
11ENDCAP
