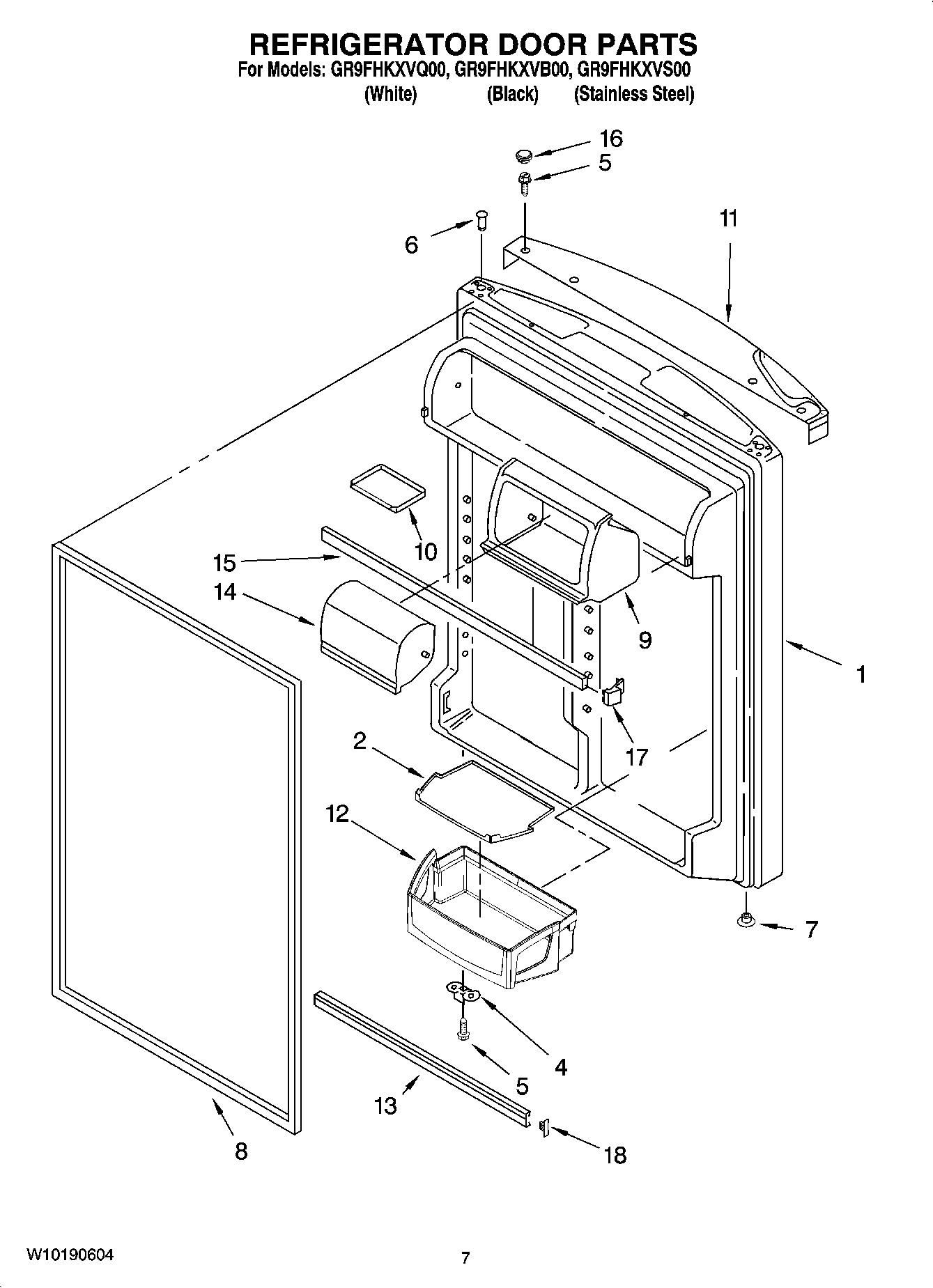

GR9FHKXVQ00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
1Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
2Mat, Door Bin
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Housing Compartment
10Tray, Door
11Endcap, Handle (White)
11Endcap, Handle (Black)
12Bin, Door (3)
13WPW10421484 Whirlpool Refrigerator Door Trim
14DOOR-COMP
15WP2159312 Whirlpool Refrigerator Door Trim
16HOLE PLUG, ENDCAP (WHITE)
16HOLE PLUG, ENDCAP (BLACK)
17Endcap, Door Trim
18WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
