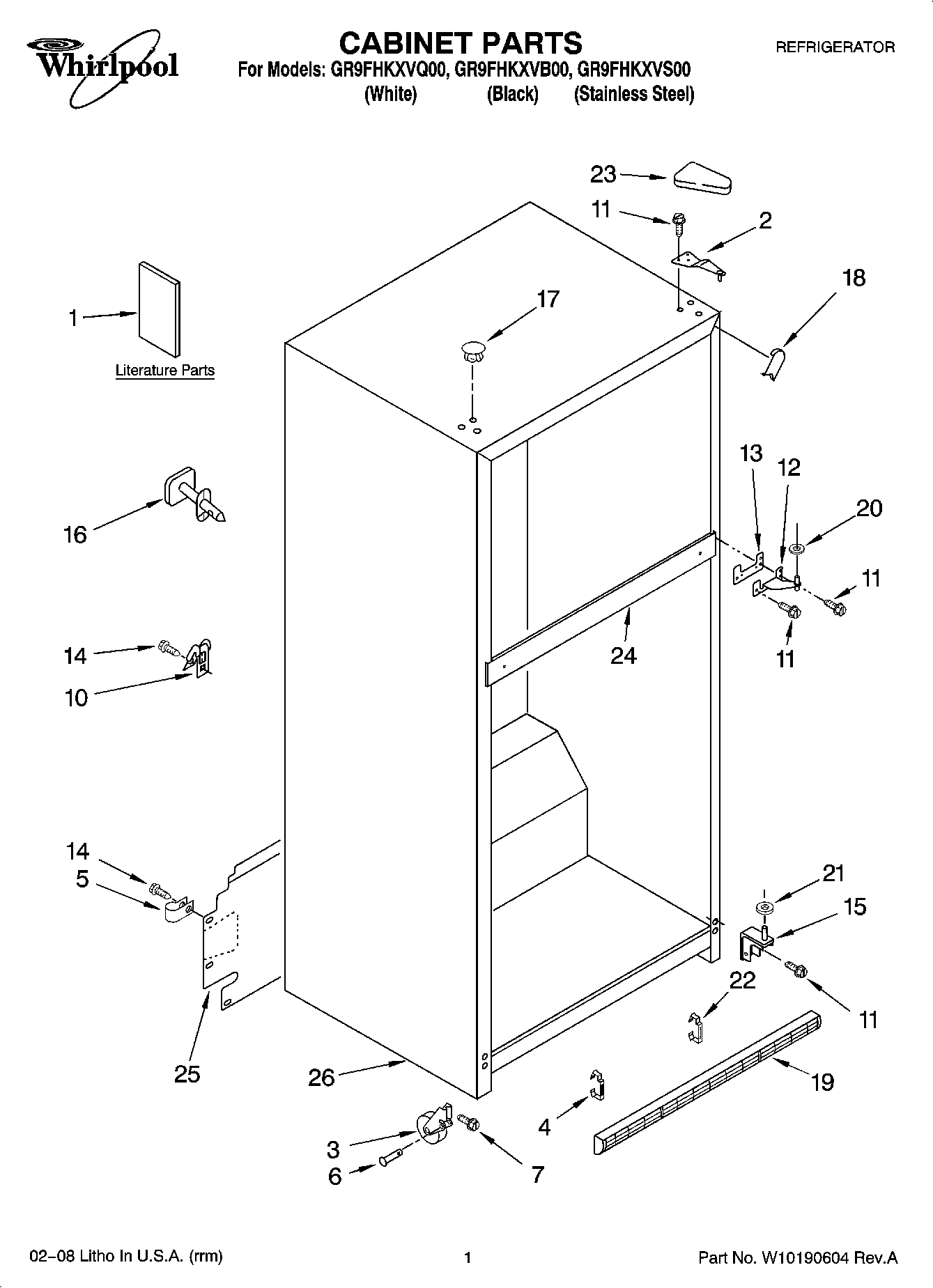

GR9FHKXVS00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	CLIP, GRILLE
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
7	WP3400504 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489497 Whirlpool Screw
12	WP2254618 Whirlpool Center Door Hinge
13	WP2183852 Whirlpool Refrigerator Shim
14	WP489464 Whirlpool Refrigerator Screw
15	WP2254473 Whirlpool Refrigerator Door Hinge
16	Fitting, Water Tube (Not Serviced)
17	WP2151652 Whirlpool Refrigerator Button Plug
17	WP2183998 Whirlpool Refrigerator Button Plug
18	W11252732 Whirlpool Refrigerator Filler
18	WPW10283959 Whirlpool Refrigerator Filler
19	WP2254386 Whirlpool Refrigerator Grille
19	Grille (Includes Illus. 4 & 24) (Black)
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
22	2254385 Whirlpool Refrigerator Clip
23	WP2213363 Whirlpool Refrigerator Cover
23	WP2213360 Whirlpool Refrigerator Cover
24	Rail, Center (Not Serviced)
25	Cover, Unit
26	Cabinet, (Not A Serviceable Part)
