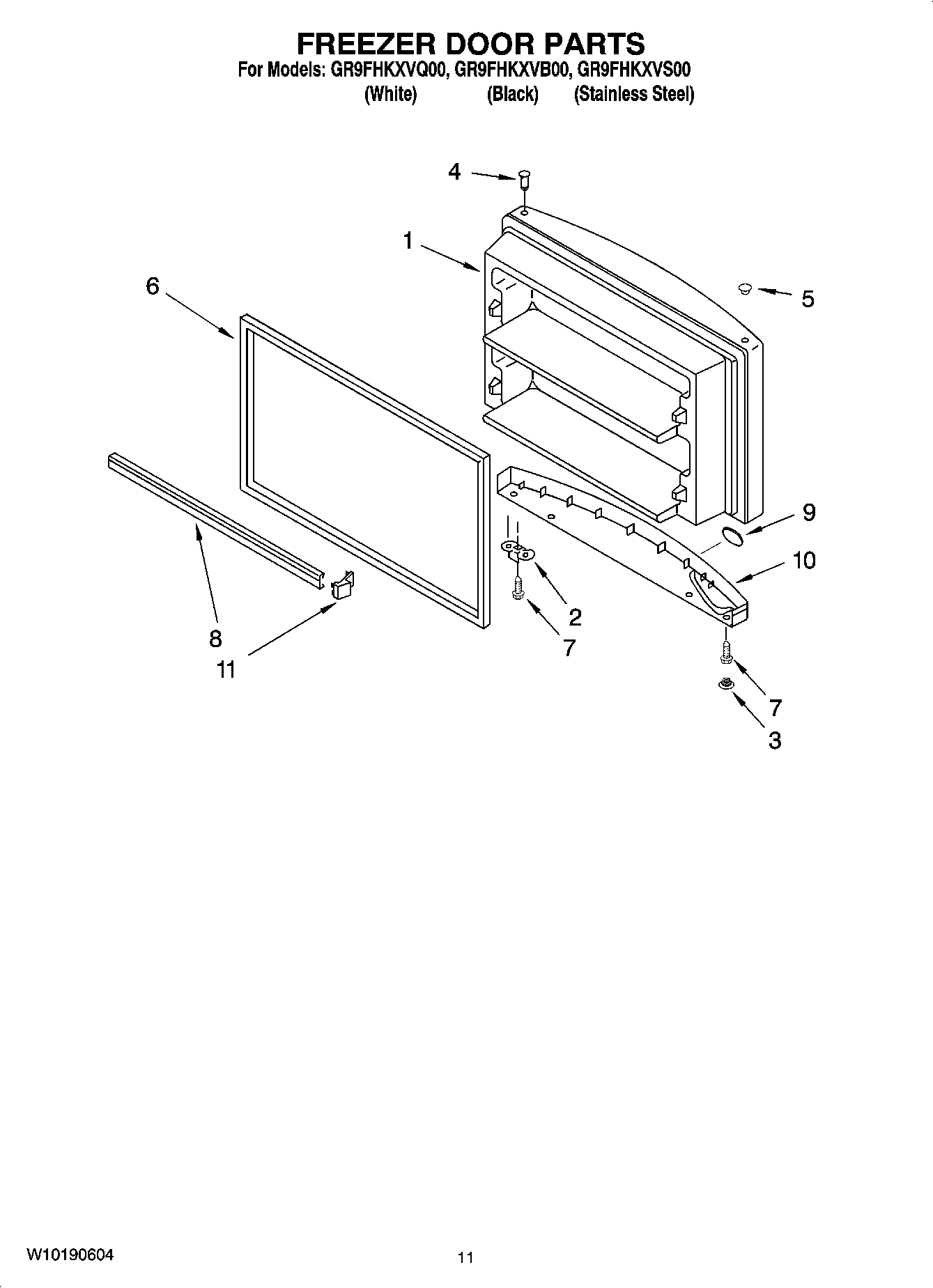

GR9FHKXVS00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI68625A7
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI68626A8
	WPL ARI68622A5
	WPL ARI68623A7
	WPL ARI68624A2
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1	Freezer Door (Includes Illus. 6 & 7) (White)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (BLACK)
3	HOLE PLUG, ENDCAP (WHITE)
4	WP2183003 Whirlpool Thimble
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
6	2177304 Whirlpool Refrigerator FIP Gasket
6	2159327 Whirlpool Refrigerator Door Gasket
7	WP681249 Whirlpool Screw Assembly
8	Trim-Door (2)
9	Nameplate
10	Endcap, Handle (White)
10	Endcap, Handle (Black)
11	ENDCAP
