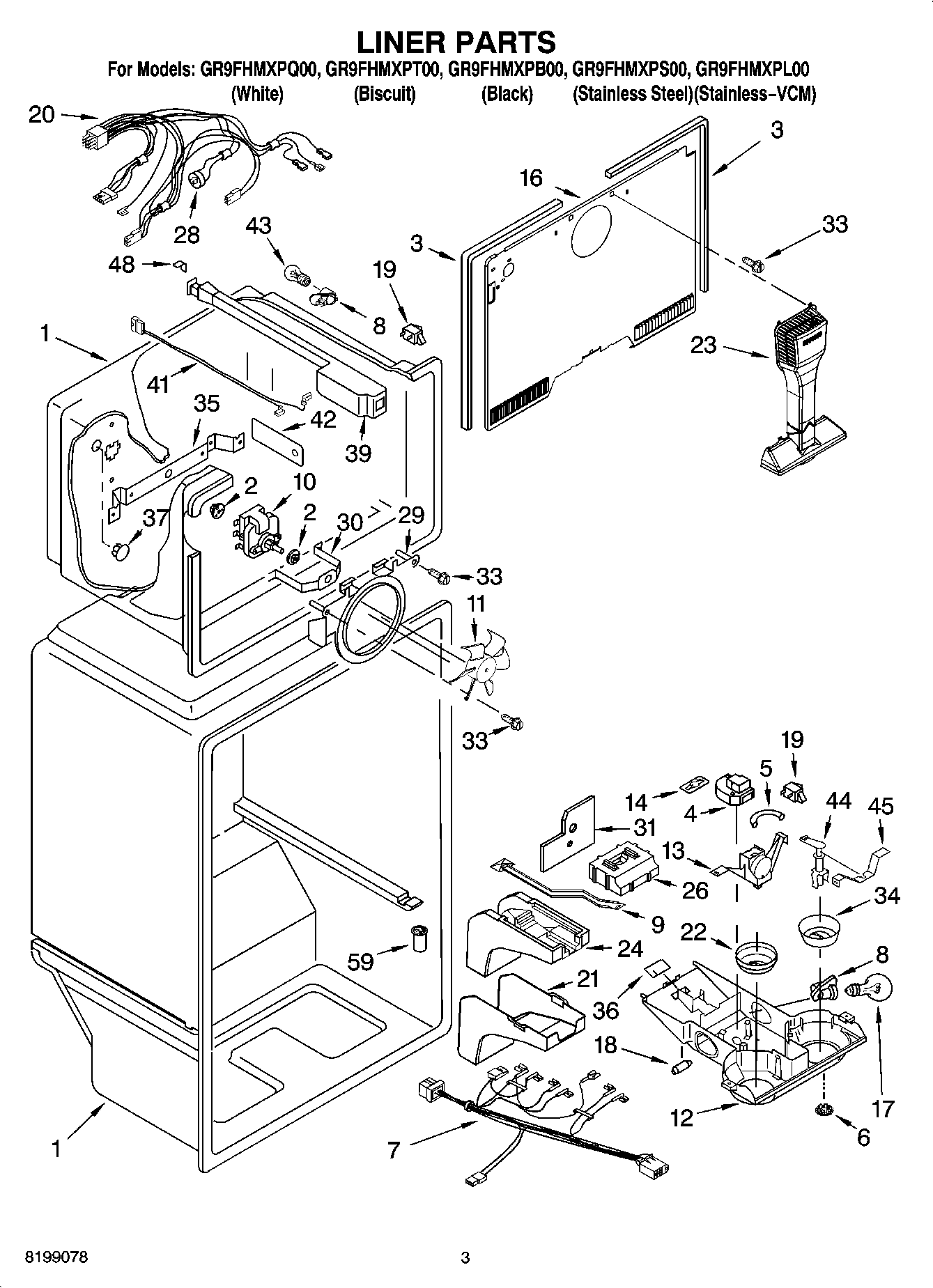

GR9FHMXPB00 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	940014 Whirlpool Refrigerator Primary Button Plug
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	Clip, Defrost Timer
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Diffuser, Top
28	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Bracket, Evap. Fan, Rear
36	WP2205079 Whirlpool Refrigerator Seal
37	WP941839 Whirlpool Refrigerator Button Plug
39	Housing Base
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Post, Damper
45	Bracket, Damper Knob
48	Gasket, Rear
59	WP2210509 Whirlpool Refrigerator Tub Valve
