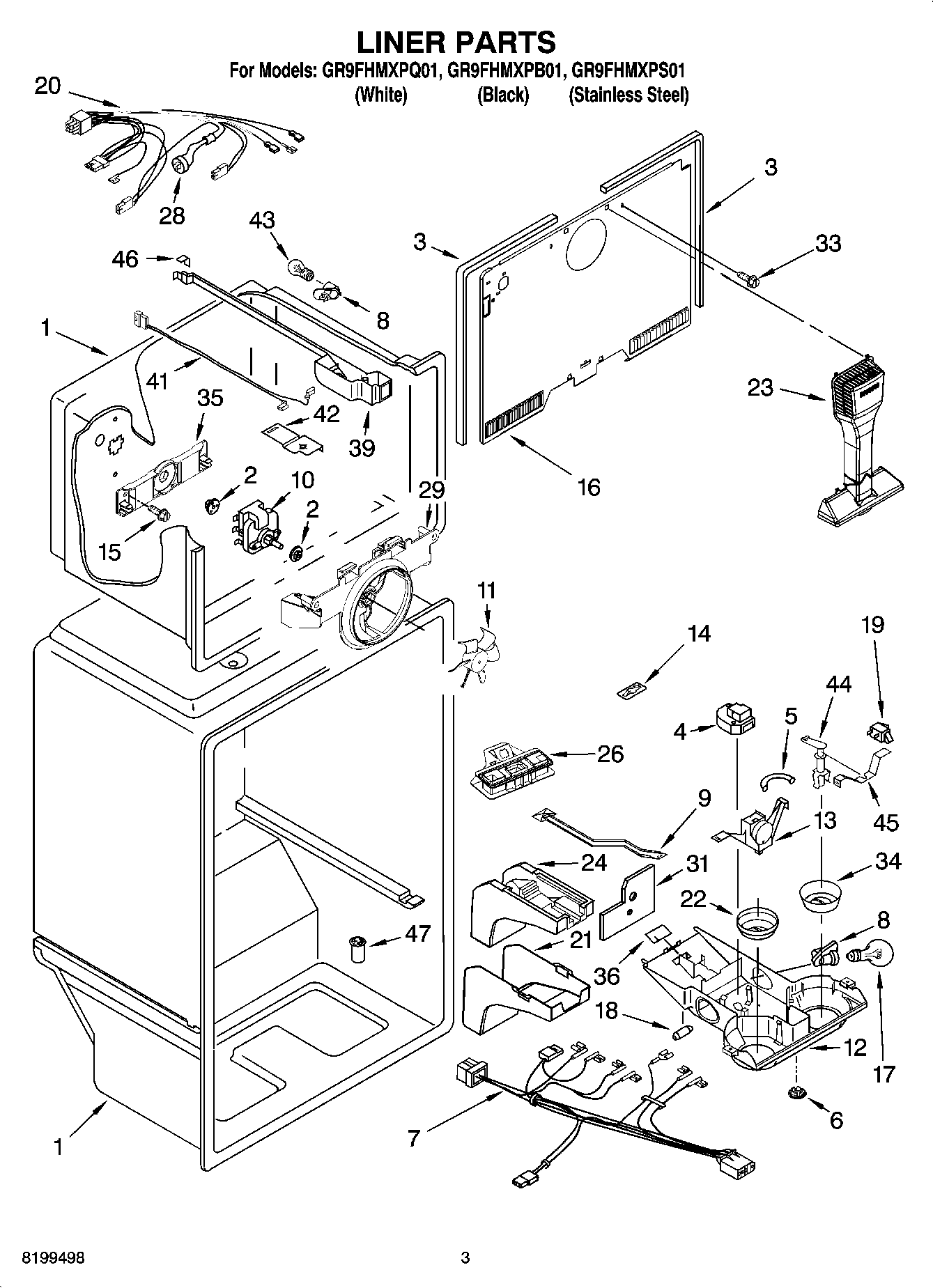

GR9FHMXPQ01 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2314156 Whirlpool Refrigerator Defrost Timer
5Thermostat Tube Barrier
6940014 Whirlpool Refrigerator Primary Button Plug
72310174 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14Clip, Defrost Timer
15WP488163 Whirlpool Refrigerator Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly Freezer Compt. (Includes Item 32)
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Separator Assembly
28WP2321800 Whirlpool Refrigerator Bimetallic Defrost
29BRACKET, FAN MOTOR
31Shield, heat
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
352254454 Whirlpool Refrigerator Bracket
36WP2205079 Whirlpool Refrigerator Seal
39Housing Base
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Post, Damper
45Bracket, Damper Knob
46Gasket, Rear
47WP2210509 Whirlpool Refrigerator Tub Valve
