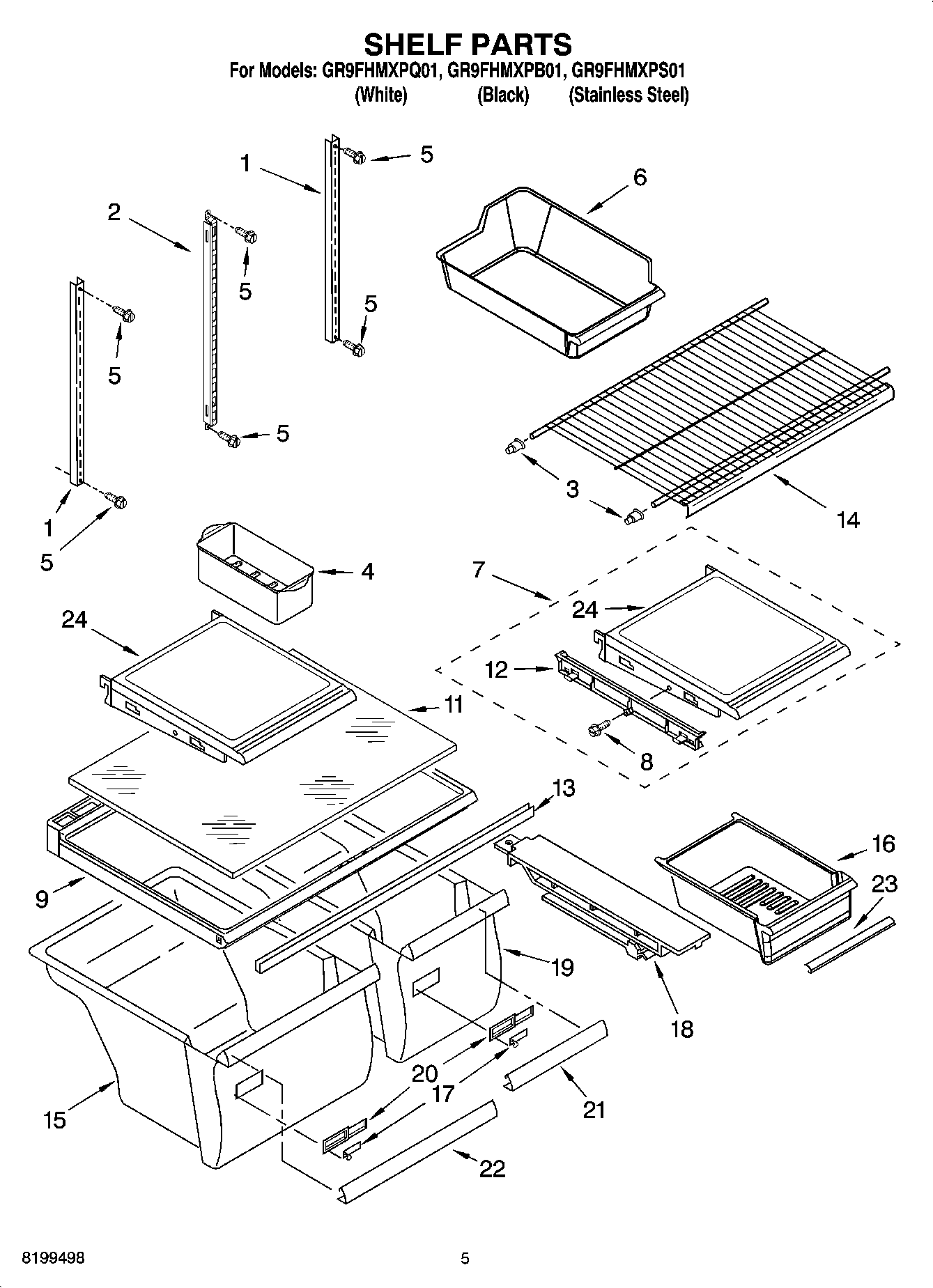

GR9FHMXPS01 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
4W10136387A Whirlpool Refrigerator Egg Container
5WP489478 Whirlpool Refrigerator Screw
62254352A Whirlpool Refrigerator Ice Container
7Shelf Assembly
8WP3400065 Whirlpool Refrigerator Screw
9WP2314548 Whirlpool Refrigerator Cover
11WP2169921 Whirlpool Refrigerator Glass Shelf
12Track, Pan Slide (2)
13WP2172748 Whirlpool Drawer Support
14WP2176275 Whirlpool Refrigerator Wire Shelf
15W10854037 Whirlpool Refrigerator Crisper Pan
16PAN-MEAT
17WP2176222 Whirlpool Refrigerator Slide
18WP2163835 Whirlpool Track Assembly
19W10856580 Whirlpool Crisper Pan
20WP2212446 Whirlpool Refrigerator Control Body
21Trim, Crisper Pan
22WP2195341 Whirlpool Refrigerator Pan Trim
23Trim, Meat Pan
24Shelf Assembly, Spillguard (2)
