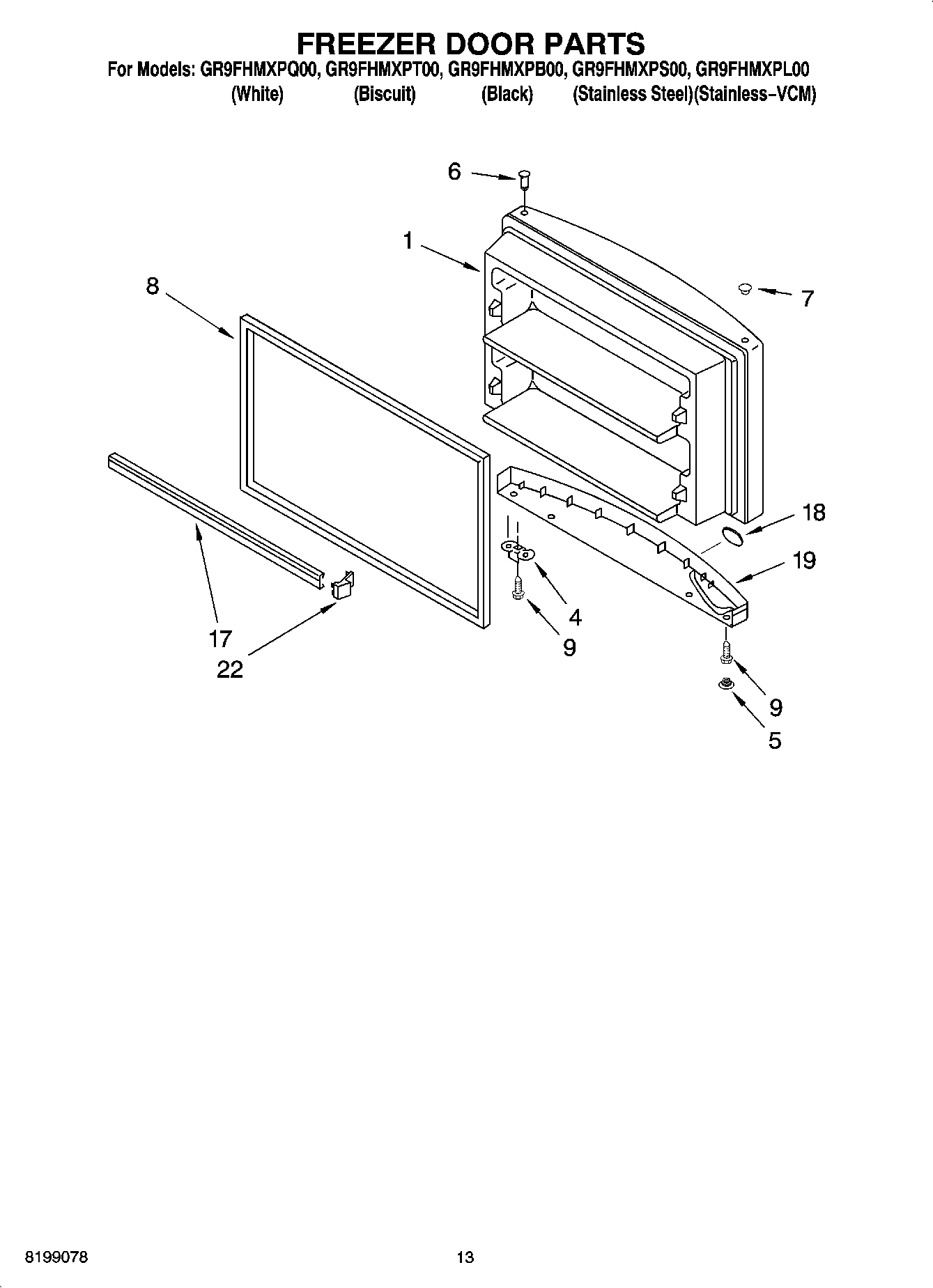

GR9FHMXPT00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS

GR9FHMXPT00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

GR9FHMXPT00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI68725A3
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI68726A2
WPL ARI68723A3
WPL ARI68724A2
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
511873 Whirlpool Refrigerator Paint
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
1Freezer Door (Includes Illus. 4 & 6) (Stainless Steel)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes 6 & 8) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
5Hole Plug, Handle (Biscuit)
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177304 Whirlpool Refrigerator FIP Gasket
82159327 Whirlpool Refrigerator Door Gasket
9WP681249 Whirlpool Screw Assembly
17Trim-Door (2)
18Nameplate
19Endcap, Handle (White)
19Handle (Biscuit)
19Endcap, Handle (Black)
22ENDCAP
